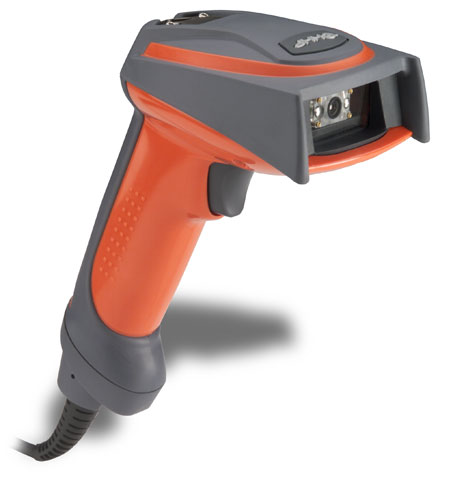

Hand Held 4800SR051C-0A00 Barcode Scanner

Hand Held ImageTeam 4800 - Complete Decode, Green Aimer, Keyboard wedge Kit, Mini Din Cable - 42206132-02 and User Guide
  • Perfect for applications that require direct association with a workstation or a notebook
  • Rapidly incorporate 1D and 2D barcode information to records, spreadsheets, and databases
  • Laser-free design provides high-performance scanning without the risk of eye injury
Read More

Full specifications (PDF)

Rugged 2D Imaging
The ImageTeam 4800 Industrial 2D Area Imager is the first handheld area image reader powered by Adaptus imaging technology. Adaptus technology decodes faster, farther, and future-proofs your investment.

Technical Information

  • Form Factor: Handheld Scanner
  • Barcode Dimension: 1D/2D
  • Symbologies Supported:
    • Matrix
    • PDF
    • OCR
    • Codabar
    • Code 39
    • PARAF
    • Interleaved 2 of 5
    • Code 2 of 5
    • Code 93
    • Code 11
    • Code 128
    • UPC
    • EAN/JAN
    • RSS
    • Postnet
    • Planet Code
    • British Post
    • China Post
    • Canadian Post
    • Japanese Post
    • KIX(Netherlands) Post
    • China Postal Code
  • Scanner Type: Imager
  • Interface Options:
    • Keyboard Wedge
    • TTL level Serial Wedge
    • IBM 468X/469X
    • Wand
    • USB
  • Interface Connectivity: Corded
  • Input Voltage Range: 4.5 to 12 V DC
  • Depth of Field:
    • 2.9 - 7"@8mils - Linear
    • 1.9 - 11.9"@13mils - UPC
    • 1.4 - 12.4"@35mils - MaxiCode

General Information

  • Manufacturer: Hand Held Products
  • Product Line: IMAGETEAM
  • Product Name: IMAGETEAM 4800 Industrial 2D Area Imager

Physical Characteristics

  • Dimensions: 6.4" (162.56mm) x 3.2" (81.28mm) x 5.3" (134.62mm)
  • Weight: 7.5 oz

Agency Approvals

  • Agency Approvals:
    • FCC Class B
    • CE EMC Class B
    • CE Low Voltage Directive
    • IEC60825-1 LED
    • Class 1
    • UL
    • cUL listed
    • TÃúV

Other

  • Package Contents:
    • IMAGETEAM 4800 Industrial 2D Area Imager
    • Keyboard wedge Mini Din cable
    • User's guide
  • Cables Included: Keyboard Wedge

Environmental Conditions

  • Temperature:
    • -10°C (14°F) to 50°C (122°F) Operating
    • -40°C (-40°F) to 60°C (140°F) Storage
  • Humidity: 0 to 95%

Warranty

  • Manufacturer Warranty: 5 Year(s)
Protect Your Product

Full specifications (PDF)

Brand Hand Held
Model ImageTeam 4800
