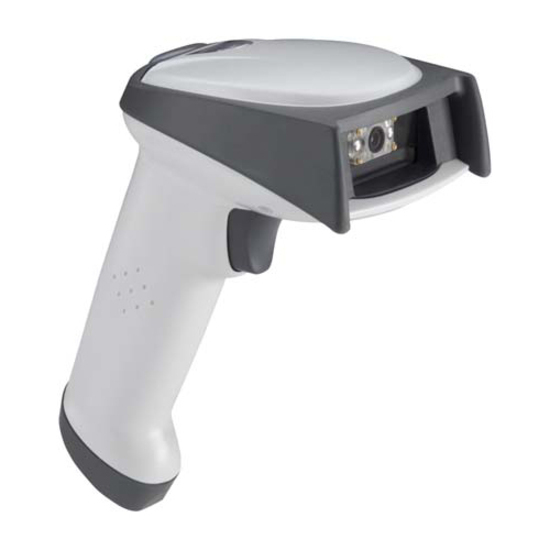

Hand Held ImageTeam 4620 – Barcode Scanner – Cordless – 1D

Part Number: 4620SR0C1CB
Model: ImageTeam 4620
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Connectivity
Cordless
Scanner Capability
1D
Scanner Type
Imager

Product Description:

  Cordless 2D Area Imager (10M Bluetooth Radio and and Battery Pack)
Explore all Hand Held ImageTeam 4620 Barcode Scanners
Add to Quote
Hand Held 4620SR0C1CB Barcode Scanner
Hand Held 4620SR0C1CB Barcode Scanner
Hand Held 4620SR0C1CB Barcode Scanner
Hand Held 4620SR0C1CB Barcode Scanner Hand Held 4620SR0C1CB Barcode Scanner Hand Held 4620SR0C1CB Barcode Scanner
Full specifications (PDF)

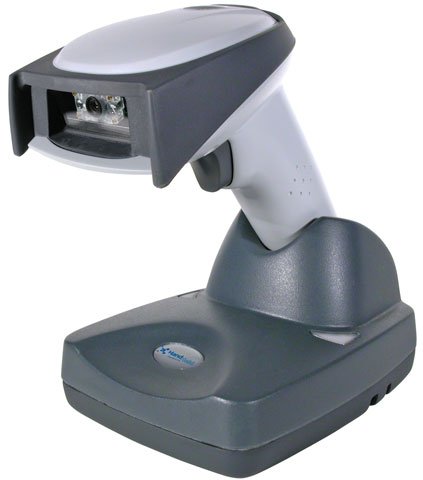

Hand Held ImageTeam 4620 Barcode Scanner Model Overview

Hand-Held's new ImageTeam 4620 Cordless Imager features Bluetooth technology providing 10m (33ft) of read range and utilizes adaptive frequency hopping for improved performance in existing RF environments. Its power is provided by lithium ion battery capable of delivering up to 25,000 reads between charges. Powered by Adaptus Imaging Technology, the Hand-Held ImageTeam 4620 also comes fully equipped with digital imaging capabilities allowing you to take pictures and capture signatures for the ultimate in data management versatility. And, with no internal moving parts, the Hand-Held ImageTeam 4620 will provide years of reliable service even in the most demanding environments.
Hand Held 4620SR0C1CB Barcode Scanner Overview

Delivering all the durability and end-user benefits, 4620 SR Bar Code Reader provides freedom of cordless operation in an easy to use platform. In a single mobile handheld solution, you'll be able to perform world-class 2D and PDF reading, as well as reading linear, matrix, postal, OCR, and dozens of other specialty codes. 4620 SR Bar Code Reader features Bluetooth Class II v1.2 technology providing 10 meters (33 feet) of read range.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • PDF 417
  • Micro PDF417
  • MaxiCode
  • DataMatrix
  • QR Code
  • Aztec
  • Aztec Mesas
  • Code 49
  • EAN-UCC Composite
  • Codabar
  • Code 39
  • Interleaved 2 of 5
  • Code 93
  • Code 128
  • UPC
  • EAN
  • RSS
  • Coda Block
  • Planet Code
  • Postnet
  • British Post
  • Canadian Post
  • Japanese Post
  • KIX(Netherlands) Post
  • OCR-A
  • OCR-B
Light Source:
LED
Image Sensor Type:
Imager
Depth of Field:
  • 2.9" - 7"@8mil - Linear
  • 1.9" - 11.9"@13mil - UPC
  • 3.9" - 5.7"@6.6mil - PDF417
  • 2.5" - 8.4"@10mil - PDF417
  • 3.1" - 5.9"@15mil - Data Matrix
  • 1.4" - 12.4"@35mil - Maxi Code
Scanning Distance:
32.81 ft
Network & Communication
Bluetooth:
Yes
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
4.2 V DC
Power Source:
Battery
Battery Information
Number of Batteries Supported:
1
Battery Chemistry:
Lithium Ion (Li-Ion)
Physical Characteristics
Form Factor:
Handheld
Weight (Approximate):
9 oz
Miscellaneous
Package Contents:
  • 4620 SR Bar Code Reader
  • Battery
Additional Information:

Supported Interfaces:

  • TTL level RS-232
  • TTL level Serial Wedge
  • USB
  • Wand Emulation
  • IBM 468x
  • Keyboard Wedge

USB Cable separate

Certifications & Standards:
  • FCC Class B
  • CE EMC Class B
  • CE Low Voltage Directive
  • IEC60825-1 LED

Safety:

  • Class 1
  • UL
  • cUL listed
  • TÜV
Item Numbers
UNSPSC: 43211701

Recommended Accessories

Category

  • Scanner Accessories (1)

Recommended Accessories for Model: Hand Held 4620SR0C1CB Barcode Scanner

Top Scanner Accessories Purchased With Hand Held 4620SR0C1CB

Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Hand Held 4620SR0C1CB Barcode Scanner is also known as HHP-4620SR0C1CB or 4620SR0C1CB.
