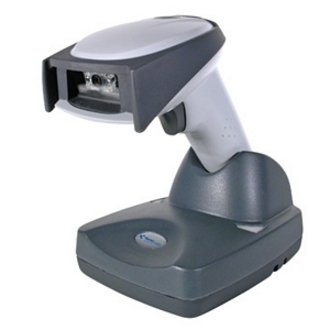

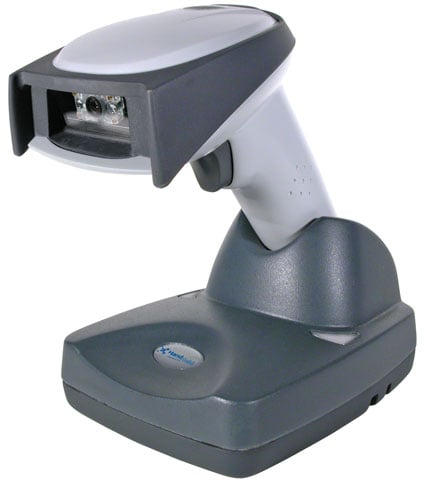

Hand Held ImageTeam 4620 – Barcode Scanner – Cordless – 1D

Part Number: 4620SR0C1CB-0FA0

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Connectivity
Cordless
Scanner Capability
1D
Scanner Type
Imager

Product Description:

  Cordless 2D Area Imager (USB Kit, Cable, Base and Power Supply). (Formerly listed as (Part# 4620SR0C1C-0FA0)

Hand Held ImageTeam 4620 Barcode Scanner Model Overview

Hand-Held's new ImageTeam 4620 Cordless Imager features Bluetooth technology providing 10m (33ft) of read range and utilizes adaptive frequency hopping for improved performance in existing RF environments. Its power is provided by lithium ion battery capable of delivering up to 25,000 reads between charges. Powered by Adaptus Imaging Technology, the Hand-Held ImageTeam 4620 also comes fully equipped with digital imaging capabilities allowing you to take pictures and capture signatures for the ultimate in data management versatility. And, with no internal moving parts, the Hand-Held ImageTeam 4620 will provide years of reliable service even in the most demanding environments.
Hand Held 4620SR0C1CB-0FA0 Barcode Scanner Overview

From the Global Leader in Imaging Innovation comes the newest addition to the IMAGETEAM Series - the IMAGETEAM 4620 SR Bar Code Reader. Delivering all the durability and end-user benefits of the IT4600, this provides freedom of cordless operation in an easy to use platform. In a single mobile handheld solution, you'll be able to perform world-class 2D and PDF reading, as well as reading linear, matrix, postal, OCR, and dozens of other specialty codes. IMAGETEAM 4620 SR Bar Code Reader features Bluetooth Class II v1.2 technology providing 10 meters (33 feet) of read range.

Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • PDF 417
  • Micro PDF417
  • MaxiCode
  • DataMatrix
  • QR Code
  • Aztec
  • Aztec Mesas
  • Code 49
  • EAN-UCC Composite
  • Codabar
  • Code 39
  • Interleaved 2 of 5
  • Code 93
  • Code 128
  • UPC
  • EAN
  • RSS
  • Coda Block
  • Planet Code
  • Postnet
  • British Post
  • Canadian Post
  • Japanese Post
  • Kix
  • OCR-A
  • OCR-B
Image Sensor Type:
Imager
Depth of Field:
  • 2.9" - 7"@8mil - Linear
  • 1.9" - 11.9"@13mil - UPC
  • 3.9" - 5.7"@6.6mil - PDF417
  • 2.5" - 8.4"@10mil - PDF417
  • 3.1" - 5.9"@15mil - Data Matrix
  • 1.4" - 12.4"@35mil - Maxi Code
Scanning Distance:
32.81 ft
Interfaces/Ports
Host Interface:
USB
Power Description
Input Voltage:
12 V DC
Power Source:
Battery
Power Supply Included:
Yes
Physical Characteristics
Weight (Approximate):
9 oz
Miscellaneous
Package Contents:
  • IMAGETEAM 4620 SR Bar Code Reader
  • Cable
  • Base
  • Power Supply
Additional Information:

USB Cable separate

Certifications & Standards:
  • FCC Class B
  • CE EMC Class B
  • CE Low Voltage Directive
  • IEC60825-1 LED

Safety:

  • Class 1
  • UL
  • cUL listed
  • TÜV
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211701
