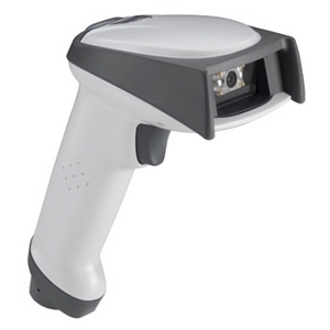

Hand Held ImageTeam 4600 – Barcode Scanner – 1D

Part Number: 4600SR051C-0G00

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

  commercial and retail area imager with keyboard wedge, USB & RS-232 interfaces. Green aimer Include user's guide. Order cables separately. See accessories.

Hand Held ImageTeam 4600 Barcode Scanner Model Overview

The ImageTeam 4600 area imager from Hand-Held combines the versatility of area imaging with the speed and cost of linear scanning for demanding retail and commercial applications. Powered by Adaptus imaging, the ImageTeam 4600 is full featured, fast, and cost effective. Durable, with no moving parts to wear out and Hand-Held backs this with a best-in-class 3 year warranty.
Hand Held 4600SR051C-0G00 Barcode Scanner Overview

The IMAGETEAM 4600SR (Standard Range) 2D Bar Code Reader from Hand Held Products combines the versatility of area imaging with the speed and cost of linear scanning for retail and commercial applications. Powered by Adaptus Imaging Technology, the IMAGETEAM 4600SR is full featured, fast, and cost effective. It is equipped with fourth generation Hand Held Products imaging for best-in-class image quality and image transfer speed, all at very economical prices.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • Aztec Mesa
  • Aztec
  • BC 412
  • British Post
  • Codabar
  • Code 49
  • Code 39
  • Code 128
  • Canadian Post
  • Coda Block
  • Code 93
  • DataMatrix
  • EAN-UCC Composite
  • EAN
  • Interleaved 2 of 5
  • Japanese Post
  • KIX(Netherlands) Post
  • MaxiCode
  • Micro PDF417
  • OCR-A
  • Postnet
  • PDF 417
  • Planet Code
  • QR Code
  • RSS
  • UPC
  • OCR-B
Light Source:
LED
Image Sensor Type:
Imager
Depth of Field:
  • 2.9" - 7"@8mil - Linear
  • 1.9" - 11.9"@13mil - UPC
  • 1.4" - 12.4"@35mil - MaxiCode
  • 3.9" - 5.7"@6mil - PDF417
  • 2.5" - 8.4"@10mil - PDF417
  • 3.1" - 5.9"@15mil - Data Matrix
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
12 V DC
Physical Characteristics
Color:
Gray
Height:
6.2"
Width:
3.2"
Depth:
5.3"
Weight (Approximate):
6.50 oz
Miscellaneous
Package Contents:
  • IMAGETEAM 4600 SR Bar Code Reader
  • User's guide
Additional Information:

Supported Interfaces:

  • Keyboard Wedge
  • TTL level RS-232
  • Wand Emulation
  • USB
  • Platform Supported:
    PC
    Certifications & Standards:
    • FCC Class B
    • CE EMC Class B
    • CE Low Voltage Directive
    • IEC60825-1 LED

    Safety:

    • Class 1
    • UL
    • cUL
    • TUV
    Warranty
    Limited Warranty:
    5 Year
    Item Numbers
    UNSPSC: 43211701

    Recommended Accessories

    Category

    • Cables, Connectors, and Adapters (6)
    • Computer Accessories (2)
    • Mounting Hardware and Stands (1)
    • Scanner Accessories (6)

    Recommended Accessories for Model: Hand Held 4600SR051C-0G00 Barcode Scanner

    Top Cables, Connectors, and Adapters Purchased With Hand Held 4600SR051C-0G00

    See All Cables, Connectors, and Adapters for Hand Held 4600SR051C-0G00 Barcode Scanner >

    Top Computer Accessories Purchased With Hand Held 4600SR051C-0G00

    Top Mounting Hardware and Stands Purchased With Hand Held 4600SR051C-0G00

    Top Scanner Accessories Purchased With Hand Held 4600SR051C-0G00

    See All Scanner Accessories for Hand Held 4600SR051C-0G00 Barcode Scanner >
    Get help from a Barcoding Expert!

    What type of Barcode are you scanning?

    The Hand Held 4600SR051C-0G00 Barcode Scanner is also known as HHP-4600SR051C0G or 4600SR051C0G00.
