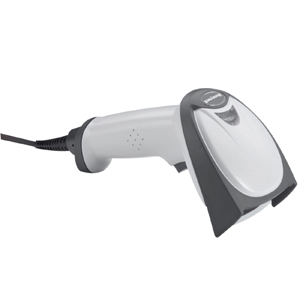

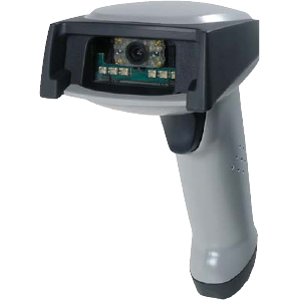

Hand Held ImageTeam 4600 – Barcode Scanner – 1D

Part Number: 4600SF051C
Model: ImageTeam 4600
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

  IT4600 Special Focus Area Imager (Complete Decode, Keyboard Wedge and TTLRS-232)
Explore all Hand Held ImageTeam 4600 Barcode Scanners
Add to Quote
Hand Held 4600SF051C Barcode Scanner
Hand Held 4600SF051C Barcode Scanner
Hand Held 4600SF051C Barcode Scanner
Hand Held 4600SF051C Barcode Scanner
Hand Held 4600SF051C Barcode Scanner Hand Held 4600SF051C Barcode Scanner Hand Held 4600SF051C Barcode Scanner Hand Held 4600SF051C Barcode Scanner
Full specifications (PDF)

Hand Held ImageTeam 4600 Barcode Scanner Model Overview

The ImageTeam 4600 area imager from Hand-Held combines the versatility of area imaging with the speed and cost of linear scanning for demanding retail and commercial applications. Powered by Adaptus imaging, the ImageTeam 4600 is full featured, fast, and cost effective. Durable, with no moving parts to wear out and Hand-Held backs this with a best-in-class 3 year warranty.
Hand Held 4600SF051C Barcode Scanner Overview

4600 SF Bar Code Reader combines the versatility of area imaging with the speed and cost of linear scanning for retail and commercial applications, It is full featured, fast, and cost effective. Current and future retail and commercial applications will involve much more than linear bar codes.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • PDF 417
  • Micro PDF417
  • Codabar
  • Code 39
  • Interleaved 2 of 5
  • Code 93
  • Code 128
  • UPC
  • EAN
  • RSS
  • MaxiCode
  • DataMatrix
  • QR Code
  • Aztec
  • Aztec Mesas
  • Code 49
  • EAN-UCC Composite
  • Codablock F
  • Postnet
  • Planet Code
  • British Post
  • Canadian Post
  • Japanese Post
  • KIX(Netherlands) Post
Light Source:
LED
Image Sensor Type:
Imager
Maximum Scan Resolution:
7.50 mil
Depth of Field:
  • 2.5" - 6.4"@7.5mil - Linear
  • 2" - 8.8"@13mil - UPC
  • 2.8" - 5.9"@6.6mil - PDF417
  • 2.2" - 7.5"@10mil - PDF417
  • 1.8" - 7.4"@15mil - Data Matrix
  • 2.2" - 7.1"@15mil - QR Code
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
14 V DC
Physical Characteristics
Form Factor:
Handheld
Color:
Gray
Height:
6.2"
Width:
3.2"
Depth:
5.3"
Weight (Approximate):
6.50 oz
Miscellaneous
Additional Information:

Supported Interfaces:

  • Serial
  • Keyboard Wedge
  • IBM 4683
  • Wand Emulation

    • Platform Supported:
    PC
    Certifications & Standards:
    • FCC Class B
    • CE EMC Class B
    • CE Low Voltage Directive
    • IEC60825-1 LED

    Safety:

    • Class 1
    • UL
    • cUL listed
    • TÜV
    • 2005 Sunrise Compliant
    Warranty
    Limited Warranty:
    3 Year
    Item Numbers
    UNSPSC: 43211701
