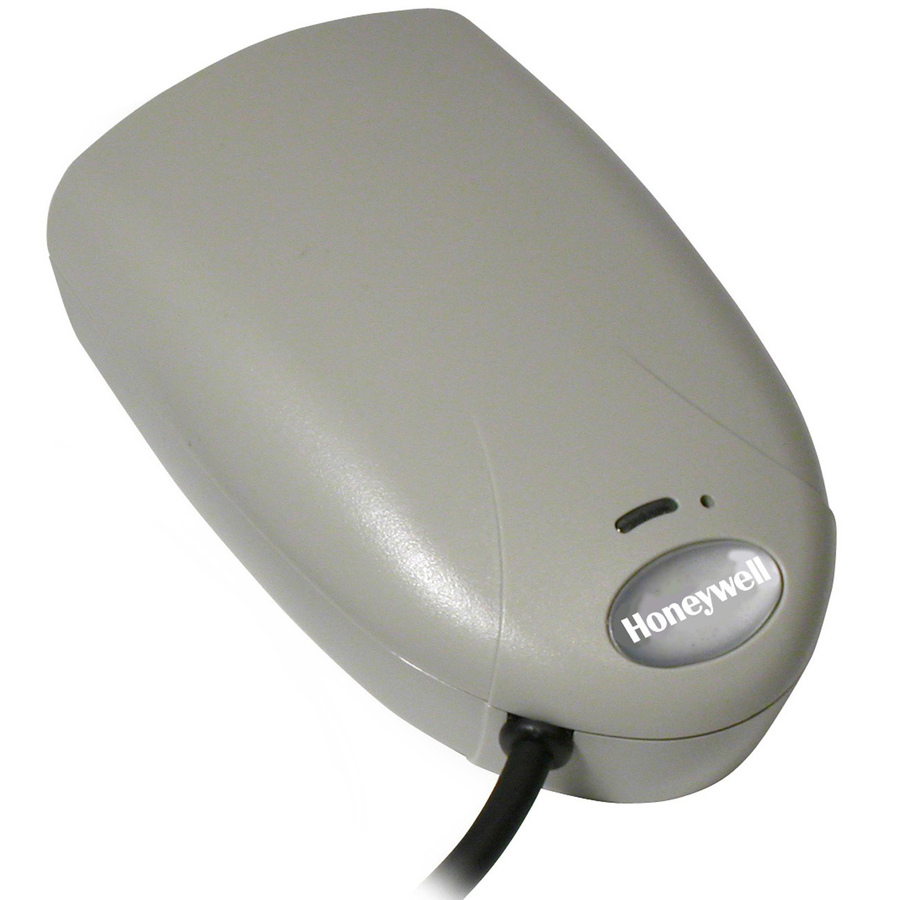

Hand Held 3900-12 Barcode Scanner

Hand Held 3900-12E Barcode Scanner A newer version of this item is available.
It is replaced by the Hand Held 3900-12E Barcode Scanner.
Hand Held - Standard range, Multi-interface trigger, (Requires cable and manual)
  • LED aimer is a perfect choice for patient-facing applications
  • Scan barcodes with a staggering speed of 270 scan/s
Read More

Need a different version? See all Hand Held Parts Accessories

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Hand Held 3900-12 Barcode Scanner
Hand Held 3900-12 Barcode Scanner Hand Held 3900-12 Barcode Scanner Hand Held 3900-12 Barcode Scanner
Hand Held 3900-12 Barcode Scanner
Hand Held 3900-12 Barcode Scanner
Hand Held 3900-12 Barcode Scanner
Hand Held Parts Accessory Model Overview
Products and parts from Hand-Held.
Hand Held 3900-12 Barcode Scanner Overview

The IMAGETEAM(IT) 3900 is a fixed position extended range linear imager that adds bar code scanning to kiosks and other OEM applications. The IT3900 uses linear imaging technology to deliver a bright, sharp aiming line, and fast reading and decoding that makes scanning intuitive and simple.

Technical Information
Barcode Symbology Supported:
  • Codabar
  • Code 3 of 9
  • PARAF
  • Interleaved 2 of 5
  • Code 2 of 5
  • Matrix 2 of 5
  • Code 11
  • Code 93
  • Code 128
  • UPC
  • EAN/JAN
  • China Postal Code
  • RSS
Light Source:
LED
Scan Rate:
270 scan/s
Maximum Scan Resolution:
3 mil
Depth of Field:
  • 2.5" - 9"@3mil
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Form Factor:
In-counter
Height:
1.5"
Width:
3.1"
Depth:
4.7"
Miscellaneous
Additional Information:

Decoded Output Commercial Interface

USB Cable separate

Certifications & Standards:
  • FCC Class B
  • CE EMC Class B
  • CE Low Voltage Directive
  • IEC60825-1 LED

Safety:

  • Class 1
  • UL
  • cUL listed
  • TÜV
Warranty
Limited Warranty:
5 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Hand Held 3900-12 Barcode Scanner is also known as 390012
