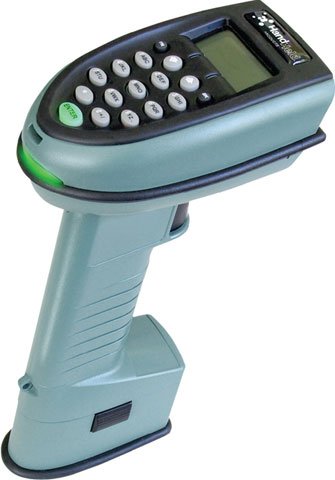

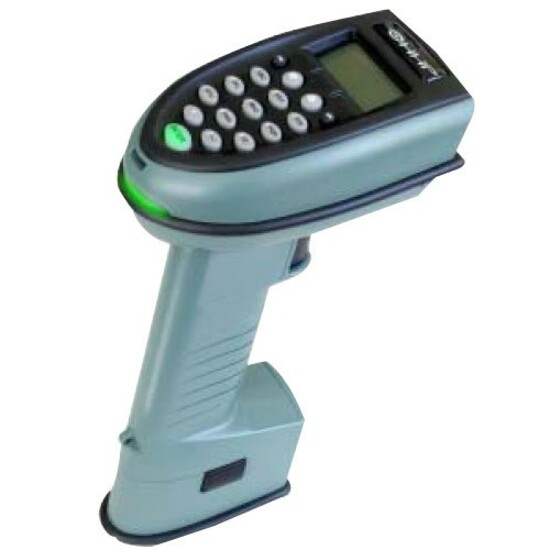

Hand Held 3875LXK-A2-PS2 Barcode Scanner

The Hand Held 3875LXK-A2-PS2 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Hand Held ImageTeam 3875 - Keyboard Wedge kit, Includes Stand, Charge Pack, Cordless Base Station, Quick Start Guide, System Manual and Keyboard Wedge Cable
  • Increase productivity and performance by excluding the cable
  • LED aimer is a perfect choice for patient-facing applications
  • Scan barcodes with a staggering speed of 270 scan/s
Read More
Discontinued Need Assistance?
Add to Quote
Hand Held ImageTeam 3875 Barcode Scanner Model Overview
The Hand Held Products' ImageTeam 3875 is a cordless linear imager that provides a portable interface to the host, and is capable of real-time, bi-directional communication. It is an aggressive barcode scanner, capable of reading all standard linear barcodes, plus PDF417 on shipping labels, RSS codes on shelf labels, and MicroPDF417 on consumer electronic products. It provides a data capture rate of 270 scans and decodes per second. ImageTeam 3875 includes IQ Editing Pro Software, which parses and sends 2D barcodes to your host application without changing the host software.
Hand Held 3875LXK-A2-PS2 Barcode Scanner Overview

The IMAGETEAM 3875 Interactive Cordless Bar Code Reader provides a portable interface to the host and is capable of real-time bi-directional communication. With the IT3875 you can view scanned data and make keypad entries the instant you pick it up. The IT3875 displays graphic icons and text in three sizes. The keypad offers superior tactile response and a familiar telephone layout. Keyboard macros allow you to enter long strings of data, or characters that are not on the keypad.Linear imaging technology is synonymous with laser-like reading distances, exceptional durability, high speed, and the best overall value. The ergonomic design of IT3875 and light weight make it ideal for scanning-intensive applications.

Technical Information
Connectivity Technology:
Wireless
Barcode Symbology Supported:
  • UPC-A
  • UPC-E
  • EAN-13
  • EAN-8
  • RSS
  • Code 39
  • Code 128
  • UCC/EAN 128
  • ISBT 128
  • Codabar
  • Code 11
  • Code 93
  • Interleaved 2 of 5
  • Straight 2 of 5
  • Matrix 2 of 5
  • Telepen
Light Source:
LED
Image Sensor Type:
Imager
Scan Rate:
270 scan/s
Maximum Scan Resolution:
6.50 mil
Depth of Field:
  • 3" - 8.5"@6.5mil
  • 0.8" - 14"@13mil
  • 0.8" - 18"@15mil
Scanning Distance:
98.43 ft
Interfaces/Ports
Host Interface:
Keyboard Wedge
Battery Information
Battery Chemistry:
Nickel Metal Hydride (NiMH)
Physical Characteristics
Form Factor:
Handheld
Height:
8.7"
Width:
3.2"
Depth:
4.7"
Weight (Approximate):
1.16 lb
Miscellaneous
Package Contents:
  • IMAGETEAM 3875 Interactive Cordless Bar Code Readerr
  • PS/2 Keyboard Wedge Cable (42205021-01)
  • Keypad
  • Display
  • Charge Pack
  • Quick Start Guide
  • Cordless Base Station(part # 2070-5X)
  • System Manual
Additional Information:

Supported Interface: Keyboard Wedge

USB Cable separate

Certifications & Standards:

Electromagnetic Emissions/Immunity:

  • FCC Part 15 Class B
  • SOR 88/475 Class B
  • EN 55022 (CISPR22) Class B
  • EN 61000-3-2 & -3
  • ETS 300 826
  • EMC 89/336/EEC
  • EN 50082-1:1992
  • IEC 801-2:1991
  • IEC 801-3:1984
  • IEC 801-4:1988

Electrical Safety:

  • UL listed
  • C22.2 No 950/UL 1950
  • cUL Listed
  • TUV Rheinland GS Licensed EN 60950 (IEC950)
  • AS/NZS 3548

Radio:

  • FCC Part 15.249
  • RSS 210
  • ETS 300 328
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Hand Held 3875LXK-A2-PS2 Barcode Scanner is also known as HHP-3875LXK-A2-PS2 or 3875LXKA2PS2.
