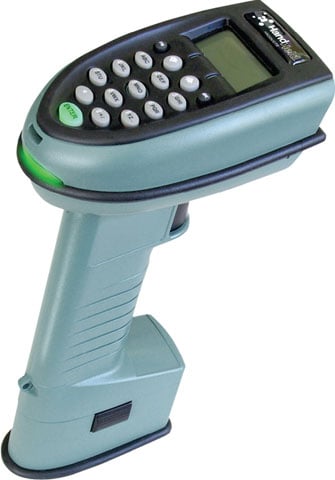

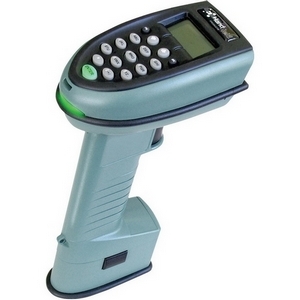

Hand Held 3875LX-A2-1 Barcode Scanner


0.0

(No reviews)

Be the first to

Write a Review
Hand Held ImageTeam 3875 - Scanner Only. See accessories for necessary base station and cables.
Features linear imaging technology with a scan rate of 270 scans per second

The Handheld Products' ImageTeam 3875 is a cordless linear imager that provides a portable interface to the host, and is capable of real-time, bi-directional communication. It is an aggressive barcode scanner, capable of reading all standard linear barcodes, plus PDF417 on shipping labels, RSS codes on shelf labels, and MicroPDF417 on consumer electronic products. It provides a data capture rate of 270 scans and decodes per second. ImageTeam 3875 includes IQ Editing Pro Software, which parses and sends 2D barcodes to your host application without changing the host software.

Technical Information

  • Form Factor: Handheld Scanner
  • Symbologies Supported:
    • Code 11
    • Code 39
    • Code 93
    • Code 128
    • Codabar
    • EAN-8
    • EAN-13
    • Interleaved 2 of 5
    • ISBT 128
    • Matrix 2 of 5
    • RSS
    • Straight 2 of 5
    • Telepen
    • UCC/EAN 128
    • UPC-A
    • UPC-E
  • Scanner Type: Imager
  • Scan Rate: 270 Scans/sec
  • Interface Connectivity: Cordless
  • Cordless Range: 30m
  • Scan Pattern: Linear
  • Depth of Field:
    • 3.2 - 8.8"@6.5mils
    • 2.8 - 9.8"@7.5mils
    • 0.5 - 14"@13mils
    • 0.5 - 18"@15mils

General Information

Physical Characteristics

  • Weight: 18.5 oz - With Charge Pack

Agency Approvals

  • Agency Approvals:
    • FCC Part 15 Class B
    • SOR 88/475 Class B
    • EN 55022 (CISPR22) Class B
    • EN 61000-3-2 & -3
    • ETS 300 826
    • EMC 89/336/EEC
    • EN 50082-1:1992
    • IEC 801-2:1991
    • IEC 801-3:1984
    • IEC 801-4:1988
    • UL listed
    • C22.2 No 950/UL 1950
    • cUL Listed
    • TUV Rheinland GS Licensed EN 60950 (IEC950)
    • AS/NZS 3548
    • FCC Part 15.249
    • RSS 210
    • ETS 300 328

Other

  • Package Contents:
    • IMAGETEAM 3875 Extended Range Barcode Scanner
    • Keypad
    • Display
    • Charge Pack
    • Quick Start Guide

Environmental Conditions

  • Temperature:
    • 0°C (32°F) to 50°C (122°F) Operating
    • -30°C (-22°F) to 60°C (140°F) Storage
  • Humidity: 5 to 95% Non-condensing

Warranty

  • Manufacturer Warranty: 3 Year(s)

Full specifications (PDF)



Customer Review Summary

Recommended Accessories for Model: Hand Held ImageTeam 3875 Scanner
Protect Your Product

The Hand Held 3875LX-A2-1 is also known as HandHeld HHP-3875LX-A2-1 or 3875LXA21 .
