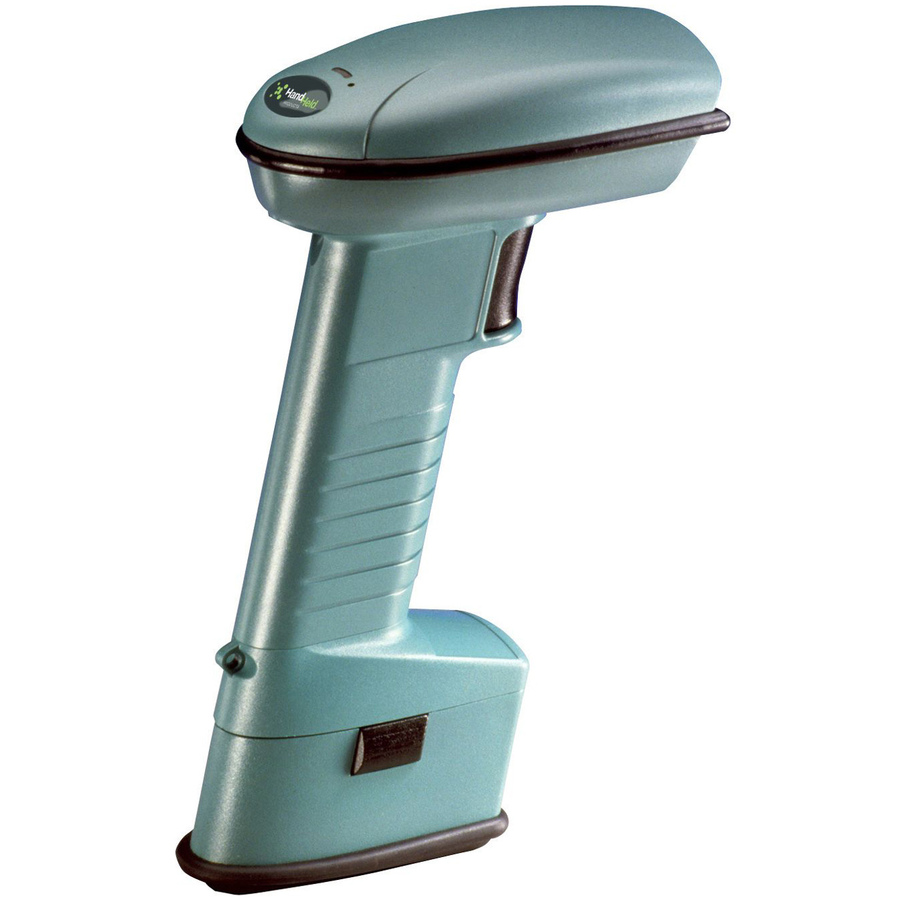

Hand Held ImageTeam 3870 – Barcode Scanner – 1D

Part Number: 3870PDF-A2
Model: ImageTeam 3870
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

  PDF417 Reader, Software, NIMH, Charge Pack CLESS/NIMH/S and Quick Start Guide
Explore all Hand Held ImageTeam 3870 Barcode Scanners
Add to Quote
Hand Held 3870PDF-A2 Barcode Scanner
Hand Held 3870PDF-A2 Barcode Scanner
Hand Held 3870PDF-A2 Barcode Scanner
Hand Held 3870PDF-A2 Barcode Scanner Hand Held 3870PDF-A2 Barcode Scanner Hand Held 3870PDF-A2 Barcode Scanner
Full specifications (PDF)

Hand Held ImageTeam 3870 Barcode Scanner Model Overview

Designed for aggressive reading performance on PDF417 and MicroPDF417. The ImageTeam 3870 reads high-density barcodes with dimensions as small as 3 mil., while the ImageTeam 3870 reads 15 mil. codes out to 18 inches. All of these configurations feature an IP 54 sealed-enclosure rating and the industry's best drop specification for cordless scanners.
Hand Held 3870PDF-A2 Barcode Scanner Overview

The IMAGETEAM IT3870 (PDF) cordless Bar Code Reader addresses the needs of many applications. It is designed for tough industrial use, such as on loading docks, where shipping and receiving of materials requires the freedom to move around, and industry standards recommend the use of linear bar codes and PDF417 on shipping labels. The cordless scanner is also ideal for manufacturing applications, such as work-in-process, where safety may be an issue. The IT3870PDF is designed for aggressive reading performance on PDF417 and MicroPDF417. This product is for United States and Canada.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Wireless
Barcode Symbology Supported:
  • Codabar
  • Code 39
  • Code 128
  • ISBT 128
  • UPC-E
  • UPC
  • EAN/JAN
  • Interleaved 2 of 5
  • Code 2 of 5
  • Matrix 2 of 5
  • Code 93
  • Code 11
  • Telepen
  • RSS
  • ISBN
  • PDF 417
  • Micro PDF-417
  • EAN-UCC Composite
Light Source:
LED
Image Sensor Type:
Imager
Scan Rate:
270 scan/s
Scan Pattern:
Linear
Scanning Distance:
100 ft
Network & Communication
Bluetooth:
Yes
Power Description
Input Voltage:
14 V DC
Battery Information
Battery Chemistry:
Nickel Metal Hydride (NiMH)
Physical Characteristics
Form Factor:
Handheld
Weight (Approximate):
16 oz
Miscellaneous
Package Contents:
  • IMAGETEAM 3870 Bar Code Reader
  • Charge Pack
  • Quick Start Guide
Additional Information:

USB Cable separate

Certifications & Standards:
  • EMC 89/336/EEC
  • EN 50082-1:1992
  • IEC 801-2:1991
  • IEC 801-3:1984
  • IEC 801-4:1988

Electromagnetic Emissions/Immunity:

  • USA: FCC Part 15 Class B
  • Canada: SOR 88/475 Class B
  • Europe: EN 55022 (CISPR22) Class B
  • EN 61000-3-2 & -3
  • ETS 300 826

Safety:

  • USA: UL listed
  • C22.2 No 950/UL 1950
  • Canada: cUL Listed
  • Europe: TUV Rheinland GS Licensed
  • EN 60950 (IEC950)
  • Australia: AS/NZS 3548

RF Approvals:

  • USA: FCC Part 15.249
  • Canada: RSS 210
  • Europe: ETS 300 328
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211701

Recommended Accessories

Category

  • Scanner Accessories (3)

Recommended Accessories for Model: Hand Held 3870PDF-A2 Barcode Scanner

Top Scanner Accessories Purchased With Hand Held 3870PDF-A2

Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Hand Held 3870PDF-A2 Barcode Scanner is also known as HHP-3870PDF-A2 or 3870PDFA2.
