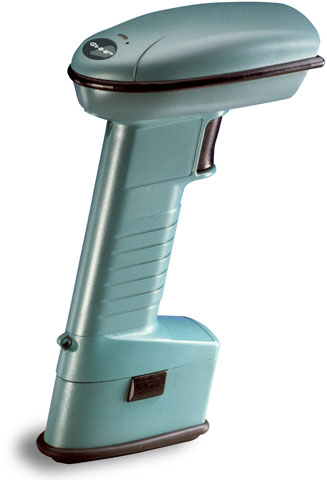

Hand Held ImageTeam 3870 – Barcode Scanner – 1D

Part Number: 3870HDK-A2-PS2

Model: ImageTeam 3870

Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

Scanner Capability

Product Description:

high density keyboard wedge kit: Scanner, PS/2 cable, base station, charge pack & quick start guide.

Explore all Hand Held ImageTeam 3870 Barcode Scanners

Add to Quote

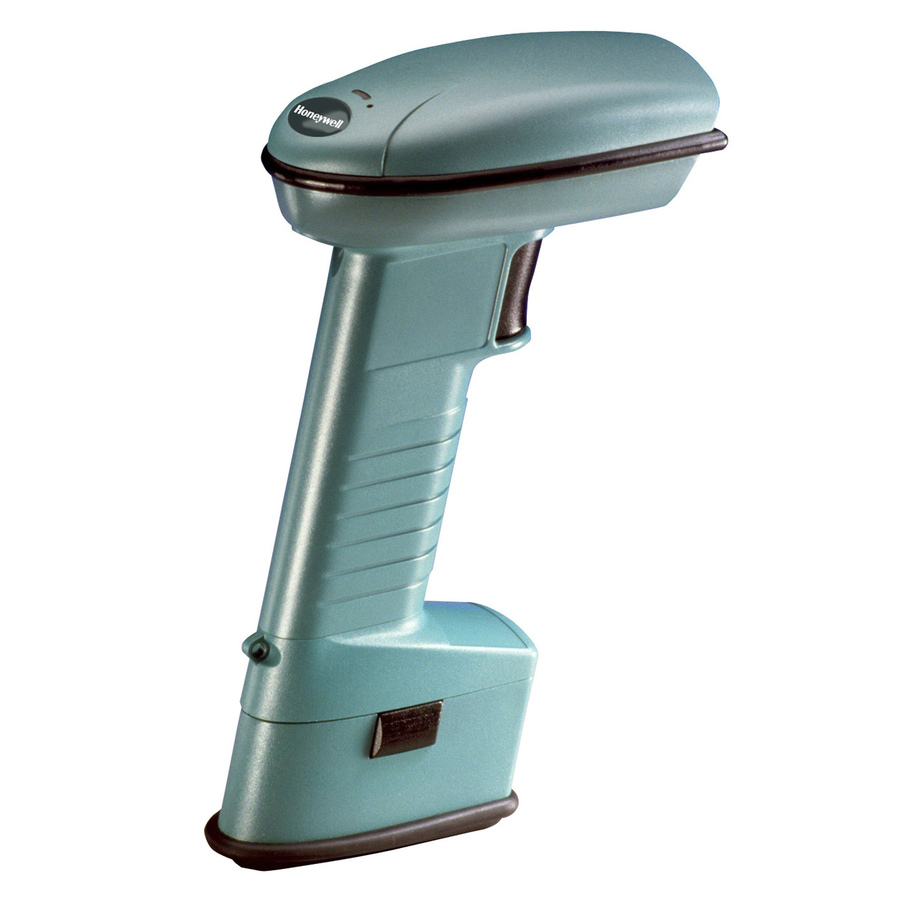

Hand Held 3870HDK-A2-PS2 Barcode Scanner

Overview

Full specifications (PDF)

Hand Held ImageTeam 3870 Barcode Scanner Model Overview

Designed for aggressive reading performance on PDF417 and MicroPDF417. The ImageTeam 3870 reads high-density barcodes with dimensions as small as 3 mil., while the ImageTeam 3870 reads 15 mil. codes out to 18 inches. All of these configurations feature an IP 54 sealed-enclosure rating and the industry's best drop specification for cordless scanners.

Hand Held 3870HDK-A2-PS2 Barcode Scanner Overview

The IMAGETEAM IT3870HDK(High density) cordless Imager addresses the needs of many applications. It is designed for tough industrial use, such as on loading docks, where shipping and receiving of materials requires the freedom to move around, and industry standards recommend the use of linear bar codes on shipping labels. The cordless scanner is also ideal for manufacturing applications, such as work-in-process, where safety may be an issue. Eliminating the cables prevents the cord from getting entangled in machinery and equipment, thus avoiding the chance of an accident. Other applications include interfacing to RF LAN based terminals mounted on forklift trucks, tool crib management, asset tracking, inventory control, and point-of-sale terminals.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Wireless

Barcode Symbology Supported:

Codabar
Code 39
Code 128
ISBT 128
UPC-E
UPC
EAN/JAN
Interleaved 2 of 5
Code 2 of 5
Matrix 2 of 5
Code 93
Code 11
Telepen
RSS
ISBN

Light Source:

LED

Image Sensor Type:

Imager

Scan Rate:

270 scan/s

Maximum Scan Resolution:

3 mil

Network & Communication

Radio Frequency:

Yes

Power Description

Input Voltage:

4 V DC
220 V AC

Battery Information

Number of Batteries Supported:

Battery Chemistry:

Nickel Metal Hydride (NiMH)

Battery Rechargeable:

Yes

Physical Characteristics

Height:

8.5"

Weight (Approximate):

16 oz

Miscellaneous

Package Contents:

IMAGETEAM 3870HDK Cordless Linear Imager
Charge pack
Cordless base station (part number 2070-1X)
IBM PS/2 keyboard wedge cable (part number 42205021-01)
Quick Start Guide
System Manual

Additional Information:

Skew Angle: +/-30 Degree
Pitch Angle: +/-15 Degree
Frequency: 2.4 to 2.4835 GHz (ISM Band) Frequency-Hopping Spread Spectrum
Data Rates: 1 Mbps
Number of Scans: 18,000

USB Cable separate

Platform Supported:

Certifications & Standards:

Electromagnetic Emissions/Immunity:

USA: FCC Part 15 Class B
Canada: SOR 88/475 Class B
Europe: EN 55022 (CISPR22) Class B
EN 61000-3-2 & -3
ETS 300 826

Safety:

USA: UL listed
C22.2 No 950/UL 1950
Canada: cUL Listed
Europe: TUV Rheinland GS Licensed
EN 60950 (IEC950)
Australia: AS/NZS 3548

RF Approvals:

USA: FCC Part 15.249
Canada: RSS 210
Europe: ETS 300 328

Other:

EMC 89/336/EEC
EN 50082-1:1992
IEC 801-2:1991
IEC 801-3:1984
IEC 801-4:1988

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 0097855021076

UPC: 097855021076

EAN: 0097855021076

UNSPSC: 43211701
