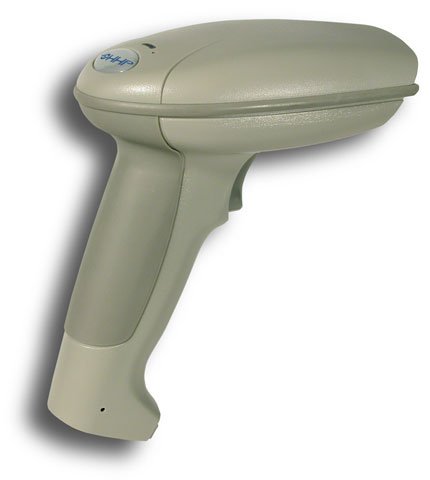

Hand Held ImageTeam 3800 – Barcode Scanner – 1D

Part Number: 3800VHD/ESD-12E
Model: ImageTeam 3800
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Form Factor
Handheld
Scanner Capability
1D

Product Description:

  Scanner only, Very high-density, electrostatic discharge resistant, Long range, HHLC, Commercial interface, RoHS Compliant. Cable not included, See accessories.
Explore all Hand Held ImageTeam 3800 Barcode Scanners
Add to Quote
Hand Held 3800VHD/ESD-12E Barcode Scanner
Hand Held 3800VHD/ESD-12E Barcode Scanner
Hand Held 3800VHD/ESD-12E Barcode Scanner
Hand Held 3800VHD/ESD-12E Barcode Scanner Hand Held 3800VHD/ESD-12E Barcode Scanner Hand Held 3800VHD/ESD-12E Barcode Scanner
Full specifications (PDF)

Hand Held ImageTeam 3800 Barcode Scanner Model Overview

This durable model is excellent in handheld scanning applications, such as point of sale where hand scanning is required for large bulky items, shipping and warehousing or anywhere where low to medium density barcodes are being read 2 to 3 feet away. The ImageTeam 3800 can be used indoors or outside in bright sunlight.

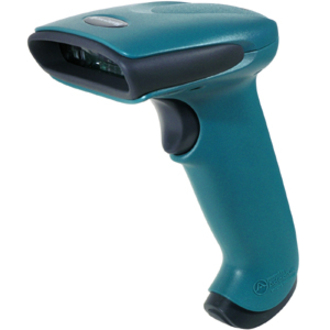

Hand Held 3800VHD/ESD-12E Barcode Scanner Overview

The 3800gHD is optimized for applications using high-density (HD) barcodes commonly found in electronics manufacturing, telecoms, aerospace, and automotive. In addition, the 3800gHD delivers high performance on standard density barcodes, providing ideal versatility for mixed barcode applications. Based on the proven 3800g platform, the 3800gHD features an ideal balance of performance, durability, and ergonomics that make it a reliable and user-friendly solution for a broad range of light industrial environments. Powered by Adaptus Imaging Technology 5.0, the 3800gHD provides fast, intuitive barcode reading across a range of high and low density codes and easily reads damaged or poorly printed barcodes - all in a single device.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • Codabar
  • Code 3 of 9 including PARAF
  • Interleaved 2 of 5
  • Straight 2 of 5 Industrial
  • Matrix 2 of 5
  • Code 11
  • Code 93
  • Code 128
  • UPC
  • EAN/JAN
  • China Postal Code
  • GS1 DataBar
  • PDF417
  • PDF417 Truncated
  • Composite
  • MicroPDF417
  • 2005 Sunrise/GTIN compliant
  • ISBT 128 Concatenation
Light Source:
LED
Image Sensor Type:
Imager
Scan Rate:
270 scan/s
Maximum Scan Resolution:
3 mil
Depth of Field:
  • 1.2" - 3.3"@3mil
  • 0.8" - 5.5"@5mil - Code 39
  • 0.2" - 8.5"@10mil - Code 39
  • 0.6" - 8.2"@13mil - 100% UPC
  • 1.5" - 2.6"@6.7mil - PDF417
  • 2" - 2.9"@20mil - PDF417
Scan Pattern:
Linear
Scanning Distance:
3.15"
Interfaces/Ports
Host Interface:
Keyboard Wedge
Physical Characteristics
Form Factor:
Handheld
Color:
Teal
Height:
5.9"
Width:
3.1"
Depth:
4.4"
Weight (Approximate):
5.60 oz
Miscellaneous
Additional Information:
  • Optimized for High Density Reading
  • Intuitive Aiming Line on board
  • Swipe Action PDF417 Decoding
  • Performance and Versatility Powered by Adaptus Imaging Technology 5.0
  • Future Proof Symbology Support

USB Cable separate

Warranty
Limited Warranty:
5 Year
Item Numbers
UNSPSC: 43211701
