Hand Held 3800VHD/ESD-12 Barcode Scanner

The Hand Held 3800VHD/ESD-12 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Hand Held ImageTeam 3800 - Very High Density Linear Imager with Manual Trigger and Commercial Interfaces

Need a different version? See all Hand Held ImageTeam 3800 Barcode Scanners

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare

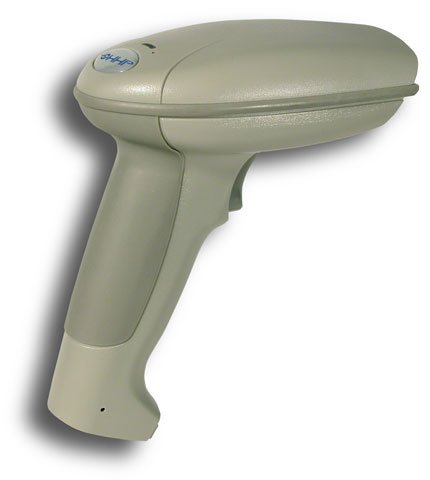

Hand Held 3800VHD/ESD-12 Barcode Scanner
Hand Held 3800VHD/ESD-12 Barcode Scanner Hand Held 3800VHD/ESD-12 Barcode Scanner
Hand Held 3800VHD/ESD-12 Barcode Scanner
Hand Held 3800VHD/ESD-12 Barcode Scanner
Full specifications (PDF)
Hand Held ImageTeam 3800 Barcode Scanner Model Overview
This durable model is excellent in handheld scanning applications, such as point of sale where hand scanning is required for large bulky items, shipping and warehousing or anywhere where low to medium density barcodes are being read 2 to 3 feet away. The ImageTeam 3800 can be used indoors or outside in bright sunlight.
Hand Held 3800VHD/ESD-12 Barcode Scanner Overview

The IMAGETEAM 3800VHD Bar Code Reader is a high performance scanner for industrial electronic manufacturing applications. It offers excellent reading performance and larger bar codes, plus the durability needed for rough industrial applications, backed by a five year warranty. Linear Imaging technology combines a bright, sharp aiming line with high resolution reading. The IT3800VHD has the industry's best drop spec to deliver excellent value for demanding, industrial applications.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • Codabar
  • Code 3 of 9
  • PARAF
  • Interleaved 2 of 5
  • Code 2 of 5
  • Matrix 2 of 5
  • Code 11
  • Code 93
  • Code 128
  • UPC
  • EAN/JAN
  • China Postal Code
  • RSS
Image Sensor Type:
Imager
Scan Rate:
270 scan/s
Maximum Scan Resolution:
3 mil
Interfaces/Ports
Host Interface:
Multi-interface
Physical Characteristics
Form Factor:
Handheld
Height:
6"
Width:
3.1"
Depth:
5.3"
Weight (Approximate):
6.30 oz
Miscellaneous
Additional Information:

Supported Interfaces:

  • Keyboard Wedge
  • USB
  • Serial Wedge
  • 1TTL level RS-232

USB Cable separate

Certifications & Standards:
  • FCC Class B
  • CE EMC Class B
  • CE Low Voltage Directive
  • IEC60825-1 LED

Safety:

  • Class 1
  • UL
  • cUL listed
  • TÜV
Warranty
Limited Warranty:
5 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Hand Held 3800VHD/ESD-12 Barcode Scanner is also known as HHP-3800VHD/ESD-12 or 3800VHD/ESD12.
