Hand Held ImageTeam 3800 – Barcode Scanner – 1D

Part Number: 3800VHD-12
Model: ImageTeam 3800
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

  Very High Density imager and Commercial Interfaces/HHLC
Explore all Hand Held ImageTeam 3800 Barcode Scanners
Add to Quote

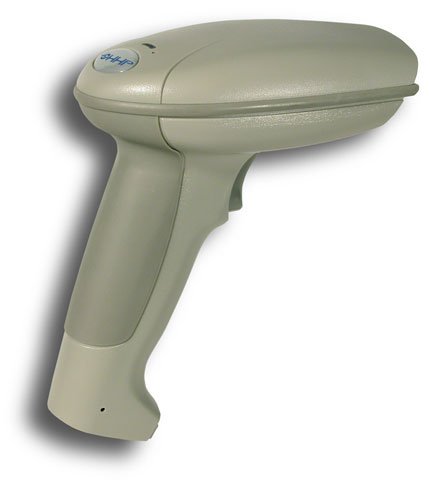

Hand Held 3800VHD-12 Barcode Scanner
Hand Held 3800VHD-12 Barcode Scanner
Hand Held 3800VHD-12 Barcode Scanner
Hand Held 3800VHD-12 Barcode Scanner Hand Held 3800VHD-12 Barcode Scanner Hand Held 3800VHD-12 Barcode Scanner
Full specifications (PDF)

Hand Held ImageTeam 3800 Barcode Scanner Model Overview

This durable model is excellent in handheld scanning applications, such as point of sale where hand scanning is required for large bulky items, shipping and warehousing or anywhere where low to medium density barcodes are being read 2 to 3 feet away. The ImageTeam 3800 can be used indoors or outside in bright sunlight.
Hand Held 3800VHD-12 Barcode Scanner Overview

The IMAGETEAM 3800VHD Bar Code Reader combines a bright, sharp aiming line with high resolution reading. It fits all applications found in high technology factories, from the high density codes on electronic sub assemblies to bar coded shipping labels in the packaging area. Typical applications are found in computer and telecommunications assembly plants, aerospace and automotive factories reading bar codes on assembly lines, test stations, document processing, packaging and shipping areas. The IT3800VHD delivers performance and value over years of trouble free operation.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • Codabar
  • PARAF
  • Interleaved 2 of 5
  • Code 2 of 5
  • Matrix 2 of 5
  • Code 11
  • Code 93
  • Code 128
  • UPC
  • EAN/JAN
  • China Postal Code
  • RSS
Image Sensor Type:
Imager
Scan Rate:
270 scan/s
Maximum Scan Resolution:
3 mil
Depth of Field:
  • 2.5" - 4"@3mil
  • 2" - 7.5"@7.5mil
  • 1" - 9.5"@13mil
Scanning Distance:
7"
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Form Factor:
Handheld
Height:
6"
Width:
3.1"
Depth:
5.3"
Weight (Approximate):
6.30 oz
Miscellaneous
Package Contents:
  • IMAGETEAM 3800VHD Bar Code Reader
  • 38Holder
  • User Guide
Additional Information:
  • Skew Angle: +/- 55 Degree
  • Pitch Angle: +/- 55 Degree
  • Horizontal Velocity: 2 in per second
  • Minimum Reflectance Difference: 30%

Interfaces:

  • All popular PCs and terminals via keyboard wedge
  • Keyboard replacement/direct connect
  • Apple ADB
  • USB
  • TTL Level Serial Wedge
  • TTL level RS-232
  • Wand emulation mode
  • HHLC non decoded laser compatible output

USB Cable separate

Platform Supported:
  • PC
  • Mac
Certifications & Standards:
  • FCC Class B
  • CE EMC Class B
  • CE Low Voltage Directive
  • IEC60825-1 LED

Safety:

  • Class 1
  • UL
  • cUL listed
  • TUV
Warranty
Limited Warranty:
5 Year
Item Numbers
UPC: 017693507945
EAN: 0017693507945
UNSPSC: 43211701
