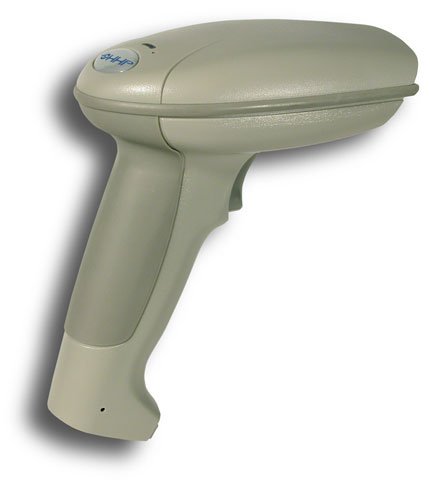

Hand Held 3800PDF-SERKIT Barcode Scanner

The Hand Held 3800PDF-SERKIT Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Hand Held ImageTeam 3800 - PDF RS-232 kit. Includes PDF linear imager, RS-232 "power stealer" cable & holder.
  • Perfect for applications that require direct association with a workstation or a notebook
  • LED aimer is a perfect choice for patient-facing applications
Read More

Need a different version? See all Hand Held ImageTeam 3800 Barcode Scanners

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Hand Held 3800PDF-SERKIT Barcode Scanner
Hand Held 3800PDF-SERKIT Barcode Scanner Hand Held 3800PDF-SERKIT Barcode Scanner Hand Held 3800PDF-SERKIT Barcode Scanner
Hand Held 3800PDF-SERKIT Barcode Scanner
Hand Held 3800PDF-SERKIT Barcode Scanner
Hand Held 3800PDF-SERKIT Barcode Scanner
Full specifications (PDF)
Hand Held ImageTeam 3800 Barcode Scanner Model Overview
This durable model is excellent in handheld scanning applications, such as point of sale where hand scanning is required for large bulky items, shipping and warehousing or anywhere where low to medium density barcodes are being read 2 to 3 feet away. The ImageTeam 3800 can be used indoors or outside in bright sunlight.
Hand Held 3800PDF-SERKIT Barcode Scanner Overview

The 3800PDF Bar Code Reader is a high performance, handheld Bar Code Reader. The 3800PDF uses linear imaging technology to set a new standard for handheld scanners by combining a bright, sharp aiming line with high resolution imaging to deliver exceptional reading performance.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • PDF417
  • Codabar
  • Code 3 of 9 including PARAF
  • Interleaved 2 of 5
  • Code 2 of 5
  • Matrix 2 of 5
  • Code 11
  • Code 93
  • Code 128
  • UPC
  • EAN/JAN
  • China Postal Code
  • RSS
Light Source:
LED
Image Sensor Type:
Linear
Maximum Scan Resolution:
15 mil
Interfaces/Ports
Host Interface:
Multi-interface
Physical Characteristics
Form Factor:
Handheld
Height:
6"
Width:
3.1"
Depth:
5.3"
Weight (Approximate):
6.30 oz
Miscellaneous
Additional Information:

RS232 Cable

USB Cable separate

Platform Supported:
  • PC
  • Mac
Warranty
Limited Warranty:
5 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Hand Held 3800PDF-SERKIT Barcode Scanner is also known as HHP-3800PDF-SERKIT or 3800PDFSERKIT.
