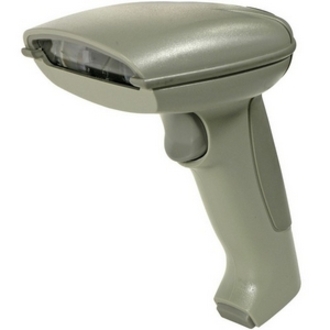

Hand Held ImageTeam 3800 – Barcode Scanner – 1D

Part Number: 3800PDF-CMBKIT
Model: ImageTeam 3800
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D
Scanner Type
Imager

Product Description:

  PDF keyboard wedge kit. Includes PDF linear imager, PS/2 cable, PS/2 to AT/XT adapter & holder.
Explore all Hand Held ImageTeam 3800 Barcode Scanners
Add to Quote
Hand Held 3800PDF-CMBKIT Barcode Scanner
Hand Held 3800PDF-CMBKIT Barcode Scanner
Hand Held 3800PDF-CMBKIT Barcode Scanner
Hand Held 3800PDF-CMBKIT Barcode Scanner Hand Held 3800PDF-CMBKIT Barcode Scanner Hand Held 3800PDF-CMBKIT Barcode Scanner
Full specifications (PDF)

Hand Held ImageTeam 3800 Barcode Scanner Model Overview

This durable model is excellent in handheld scanning applications, such as point of sale where hand scanning is required for large bulky items, shipping and warehousing or anywhere where low to medium density barcodes are being read 2 to 3 feet away. The ImageTeam 3800 can be used indoors or outside in bright sunlight.
Hand Held 3800PDF-CMBKIT Barcode Scanner Overview

The IT 3800PDF-CMBKIT delivers fast and accurate reading of PDF 417 codes as well as all standard linear symbologies. The IMAGETEAM 3800 PDF is a high performance, hand held Bar Code Reader. The IT3800 PDF uses linear imaging technology to set a new standard for hand held scanners by combining a bright, sharp aiming line with high resolution imaging to deliver exceptional reading performance.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • Code 2 of 5
  • Code 93
  • Interleaved 2 of 5
  • Codabar
  • Matrix 2 of 5
  • Code 11
  • Code 128
  • UPC
  • EAN/JAN
  • China Postal Code
  • RSS
  • PDF 417
  • Code 3 of 9
  • PARAF
Light Source:
LED
Image Sensor Type:
Imager
Scan Rate:
270 scan/s
Maximum Scan Resolution:
15 mil
Interfaces/Ports
Host Interface:
Keyboard Wedge
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Form Factor:
Handheld
Height:
6"
Width:
3.1"
Depth:
5.3"
Weight (Approximate):
6.30 oz
Miscellaneous
Package Contents:
  • IMAGETEAM 3800PDF-CMBKIT Linear Imager
  • 38 Holder
  • Cable
  • Quick Start Guide
Additional Information:

Keyboard Wedge Cable

USB Cable separate

Platform Supported:
  • PC
  • Mac
Warranty
Limited Warranty:
5 Year
Item Numbers
UNSPSC: 43211701
