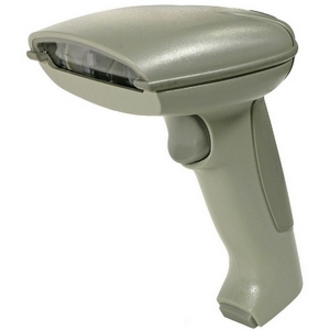

Hand Held ImageTeam 3800 – Barcode Scanner – 1D

Part Number: 3800PDF-12E
Model: ImageTeam 3800
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

  Scanner only, PDF capable, Long range, HHLC, Commercial interface, RoHS Compliant. Cable not included, See accessories.
Explore all Hand Held ImageTeam 3800 Barcode Scanners
Add to Quote
Hand Held 3800PDF-12E Barcode Scanner
Hand Held 3800PDF-12E Barcode Scanner
Hand Held 3800PDF-12E Barcode Scanner
Hand Held 3800PDF-12E Barcode Scanner Hand Held 3800PDF-12E Barcode Scanner Hand Held 3800PDF-12E Barcode Scanner
Full specifications (PDF)

Hand Held ImageTeam 3800 Barcode Scanner Model Overview

This durable model is excellent in handheld scanning applications, such as point of sale where hand scanning is required for large bulky items, shipping and warehousing or anywhere where low to medium density barcodes are being read 2 to 3 feet away. The ImageTeam 3800 can be used indoors or outside in bright sunlight.
Hand Held 3800PDF-12E Barcode Scanner Overview

The 3800PDF Bar Code Reader uses linear imaging technology to set a new standard for handheld scanners by combining a bright, sharp aiming line with high resolution imaging to deliver exceptional reading performance.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • PDF417
  • Codabar
  • Code 3 of 9 including PARAF
  • Interleaved 2 of 5
  • Code 2 of 5
  • Matrix 2 of 5
  • Code 11
  • Code 93
  • Code 128
  • UPC
  • EAN/JAN
  • China Postal Code
  • RSS
Light Source:
LED
Image Sensor Type:
Linear
Scan Rate:
270 scan/s
Maximum Scan Resolution:
15 mil
Scan Pattern:
Linear
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Form Factor:
Handheld
Color:
Beige
Height:
6"
Width:
3.1"
Depth:
5.3"
Weight (Approximate):
6.30 oz
Miscellaneous
Additional Information:

Supported Interfaces:

  • Keyboard Wedge
  • Wand Emulation

    • Platform Supported:
    PC
    Certifications & Standards:
    • FCC Class B
    • CE EMC Class B
    • CE Low Voltage Directive
    • IEC60825-1 LED Safety: Class 1
    • UL
    • cUL listed
    • TUV
    • RoHS
    Environmentally Friendly:
    Yes
    Environmental Certification:
    RoHS
    Warranty
    Limited Warranty:
    5 Year
    Item Numbers
    GTIN: 0724627146018
    UPC: 724627146018
    EAN: 0724627146018
    UNSPSC: 43211701
