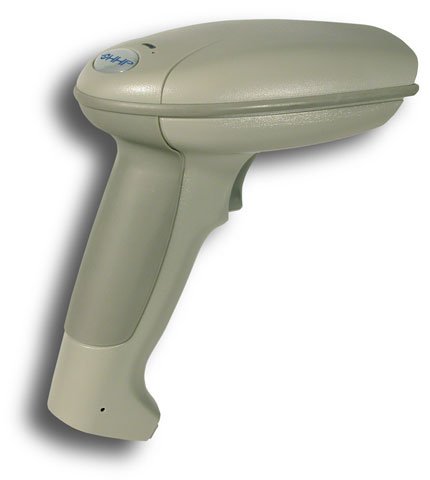

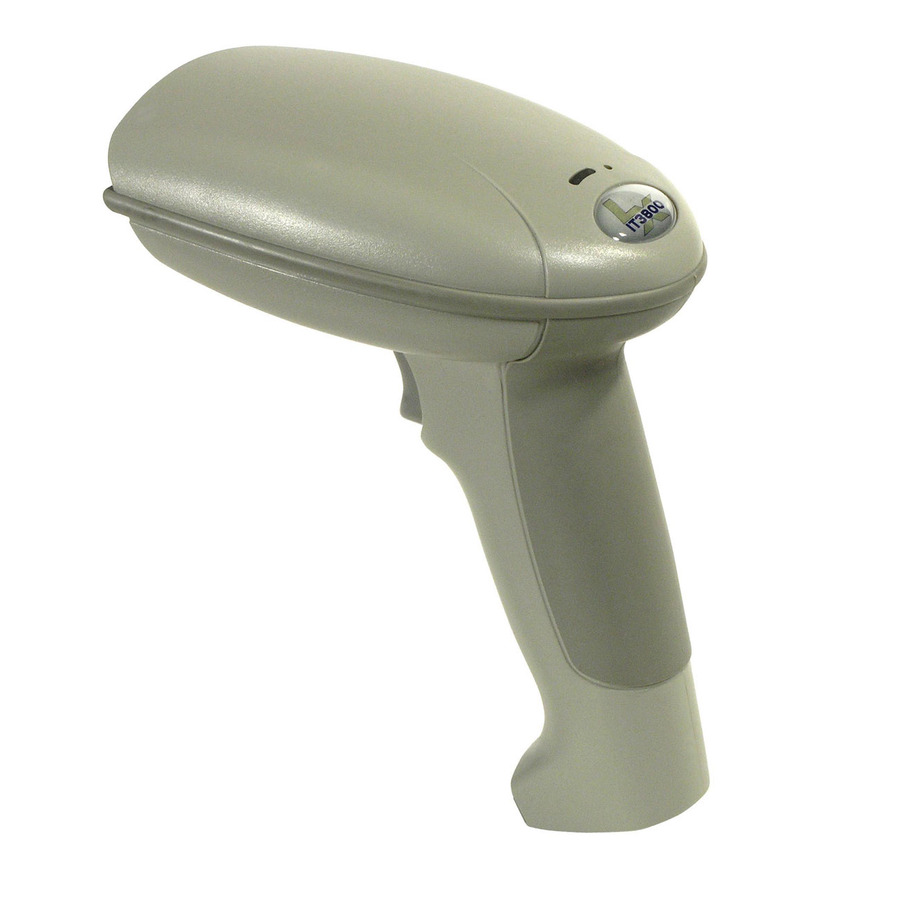

Hand Held 3800LX-14USBKIT Barcode Scanner

The Hand Held 3800LX-14USBKIT Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Hand Held ImageTeam 3800 - extended range USB Kit. Includes extended range linear imager, USB cable & holder.
  • Wired connectivity makes this scanner ideal for retail and desktop applications
  • LED aimer is a perfect choice for patient-facing applications
  • Scan barcodes with a staggering speed of 270 scan/s
Read More

Need a different version? See all Hand Held ImageTeam 3800 Barcode Scanners

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Hand Held 3800LX-14USBKIT Barcode Scanner
Hand Held 3800LX-14USBKIT Barcode Scanner Hand Held 3800LX-14USBKIT Barcode Scanner Hand Held 3800LX-14USBKIT Barcode Scanner
Hand Held 3800LX-14USBKIT Barcode Scanner
Hand Held 3800LX-14USBKIT Barcode Scanner
Hand Held 3800LX-14USBKIT Barcode Scanner
Full specifications (PDF)
Hand Held ImageTeam 3800 Barcode Scanner Model Overview
This durable model is excellent in handheld scanning applications, such as point of sale where hand scanning is required for large bulky items, shipping and warehousing or anywhere where low to medium density barcodes are being read 2 to 3 feet away. The ImageTeam 3800 can be used indoors or outside in bright sunlight.
Hand Held 3800LX-14USBKIT Barcode Scanner Overview

The 3800LX-14 is a longer range, high performance, hand held Bar Code Reader.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • Codabar
  • PARAF
  • Interleaved 2 of 5
  • Code 2 of 5
  • RSS Code
  • Matrix 2 of 5
  • Code 11
  • Code 128
  • UPC
  • EAN/JAN
  • China Postal Code
  • RSS
Light Source:
LED
Image Sensor Type:
Imager
Scan Rate:
270 scan/s
Maximum Scan Resolution:
6.50 mil
Depth of Field:
  • 3" - 36"@40mil
  • 2" - 16"@100% UPC
Interfaces/Ports
Host Interface:
USB
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Form Factor:
Handheld
Height:
6"
Width:
3.1"
Depth:
5.3"
Weight (Approximate):
6.30 oz
Miscellaneous
Package Contents:
  • 3800LX-14USBKIT Linear Imager
  • 38HOLDER
  • Cable
  • User'sQuick Start Guide
Additional Information:

Supported Interface:

USB

USB Cable separate

Certifications & Standards:
  • FCC Class B
  • CE EMC Class B
  • CE Low Voltage Directive
  • IEC60825-1 LED

Safety:

  • Class 1
  • UL
  • cUL listed
  • TUV
Warranty
Limited Warranty:
5 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Hand Held 3800LX-14USBKIT Barcode Scanner is also known as HHP-3800LX-14USBKIT or 3800LX14USBKIT.
