Hand Held ImageTeam 3800 – Barcode Scanner – 1D

Part Number: 3800LR-12SERKIT
Model: ImageTeam 3800
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D
Scanner Type
Imager

Product Description:

  long range RS-232 kit. Includes long range linear imager, RS-232 "power stealer" cable & holder.
Explore all Hand Held ImageTeam 3800 Barcode Scanners
Add to Quote

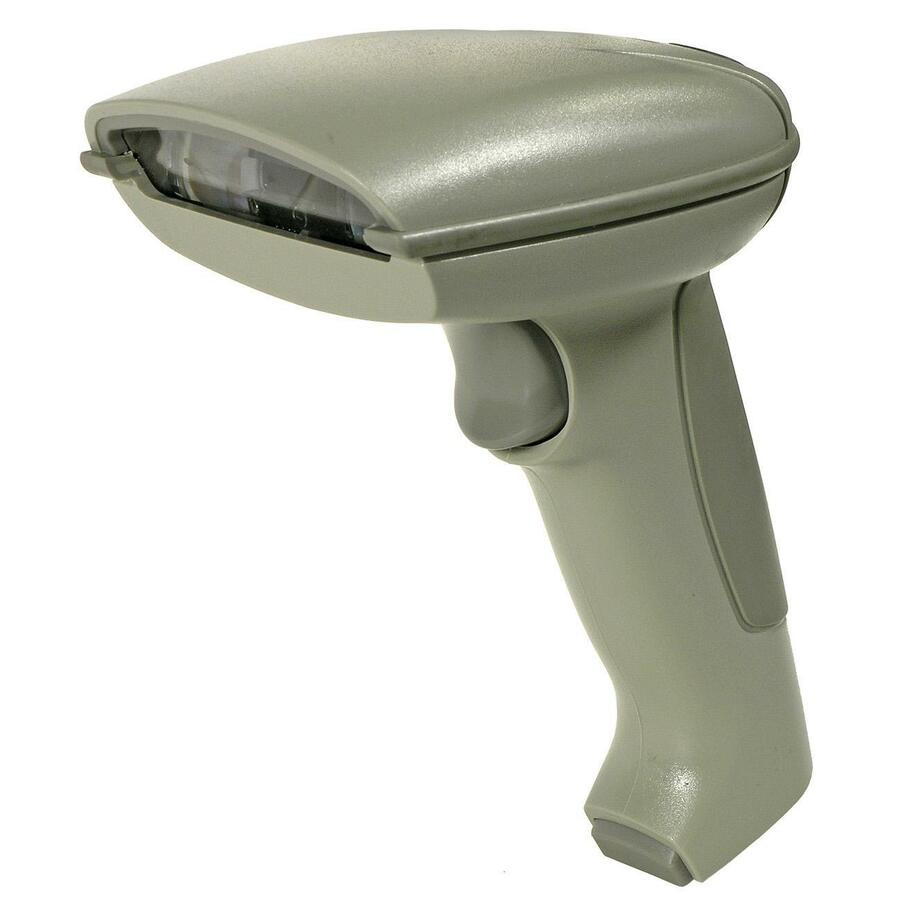

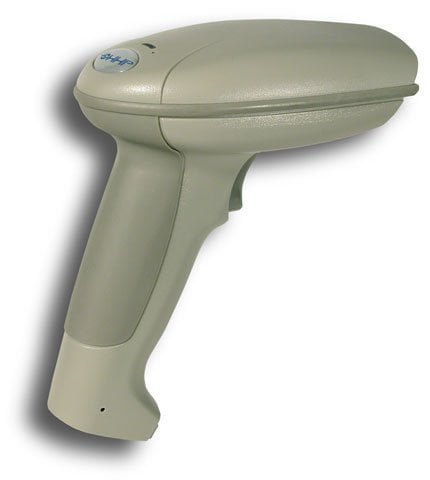

Hand Held 3800LR-12SERKIT Barcode Scanner
Hand Held 3800LR-12SERKIT Barcode Scanner
Hand Held 3800LR-12SERKIT Barcode Scanner
Hand Held 3800LR-12SERKIT Barcode Scanner Hand Held 3800LR-12SERKIT Barcode Scanner Hand Held 3800LR-12SERKIT Barcode Scanner
Full specifications (PDF)

Hand Held ImageTeam 3800 Barcode Scanner Model Overview

This durable model is excellent in handheld scanning applications, such as point of sale where hand scanning is required for large bulky items, shipping and warehousing or anywhere where low to medium density barcodes are being read 2 to 3 feet away. The ImageTeam 3800 can be used indoors or outside in bright sunlight.
Hand Held 3800LR-12SERKIT Barcode Scanner Overview

The 3800LR Bar Code Reader combines a bright, sharp aiming line with extended reading distance capabilities to deliver exceptional performance in any lighting conditions.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • Codabar
  • PARAF
  • Interleaved 2 of 5
  • Code 2 of 5
  • Matrix 2 of 5
  • Code 11
  • Code 93
  • Code 128
  • UPC
  • EAN/JAN
  • China Postal Code
  • RSS
  • PDF 417
Image Sensor Type:
Imager
Scan Rate:
270 scan/s
Maximum Scan Resolution:
3 mil
Depth of Field:
  • 2.5" - 4"@3mil
  • 2" - 7.5"@7.5mil
  • 1" - 9.5"@13mil
Scanning Distance:
8"
Cable Type Included:
Serial
Interfaces/Ports
Host Interface:
Serial
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Form Factor:
Handheld
Height:
6"
Width:
3.1"
Depth:
5.3"
Weight (Approximate):
6.30 oz
Miscellaneous
Package Contents:
  • 3800LR Bar Code Reader
  • RS232 cable
Additional Information:
  • Reading Width: 5 in. code width at 7 in. distance
  • Skew Angle: +/- 55 Degree
  • Pitch Angle: +/- 55 Degree
  • Horizontal Velocity: 2 in. per second
  • Minimum Reflectance Difference: 30%

Interfaces:

  • All popular PCs and terminals via keyboard wedge
  • Keyboard replacement/direct connect
  • Apple ADB
  • USB
  • TTL level RS-232
  • Wand emulation mode
  • TTL level Serial Wedge
  • (HHLC) non decoded laser compatible output
  • IBM 4683/93 and OCIA retail terminals in 3800 LR-11 model
  • True RS-232 in 3800LR-13 model

USB Cable separate

Platform Supported:
  • PC
  • Mac
Certifications & Standards:
  • FCC Class B
  • CE EMC Class B
  • CE low voltage directive
  • IEC 60825-1 LED
  • Safety :
  • Class 1
  • UL
  • cUL listed
  • TUV
Warranty
Limited Warranty:
5 Year
Item Numbers
UPC: 037648240253
EAN: 0037648240253
UNSPSC: 43211701
