Hand Held 3800LR-12BLK Barcode Scanner

Hand Held 3800LR-12BLKE Barcode Scanner A newer version of this item is available.
It is replaced by the Hand Held 3800LR-12BLKE Barcode Scanner.
Hand Held ImageTeam 3800 - extended range, Commercial Interface - Color: Black
  • Perfect for applications that require direct association with a workstation or a notebook
  • Scan barcodes with a staggering speed of 270 scan/s
Read More

Need a different version? See all Hand Held ImageTeam 3800 Barcode Scanners

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Hand Held 3800LR-12BLK Barcode Scanner
Hand Held 3800LR-12BLK Barcode Scanner Hand Held 3800LR-12BLK Barcode Scanner
Hand Held 3800LR-12BLK Barcode Scanner
Hand Held 3800LR-12BLK Barcode Scanner
Full specifications (PDF)
Hand Held ImageTeam 3800 Barcode Scanner Model Overview
This durable model is excellent in handheld scanning applications, such as point of sale where hand scanning is required for large bulky items, shipping and warehousing or anywhere where low to medium density barcodes are being read 2 to 3 feet away. The ImageTeam 3800 can be used indoors or outside in bright sunlight.
Hand Held 3800LR-12BLK Barcode Scanner Overview

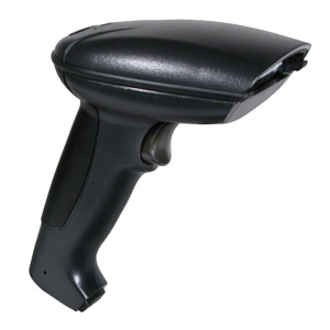

The IMAGETEAM 3800LR is a long range linear Imager, which is ideal for applications such as retail point-of-sale, in-store inventory, document management, transaction processing, and outdoor retail applications. Its solid construction, rugged design and no internal moving parts ensures years of reliable service, even in demanding work environments. The IT3800 connects to all popular PCs, POS systems, and portable data terminals.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • Codabar
  • Code 3 of 9
  • PARAF
  • Interleaved 2 of 5
  • Code 2 of 5
  • Matrix 2 of 5
  • Code 11
  • Code 93
  • Code 128
  • UPC
  • EAN/JAN
  • China Postal Code
  • RSS
Image Sensor Type:
Imager
Scan Rate:
270 scan/s
Maximum Scan Resolution:
3 mil
Depth of Field:
  • 1" - 8"@Medium Density Code
Scan Pattern:
Linear
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Form Factor:
Handheld
Color:
Black
Height:
6"
Width:
3.1"
Depth:
5.3"
Weight (Approximate):
6.30 oz
Miscellaneous
Package Contents:
  • IMAGETEAM 3800LR Linear Imager
  • Base unit without 38holder
  • User'sGuide
Additional Information:

Commercial Interface

USB Cable separate

Certifications & Standards:
  • FCC Class B
  • CE EMC Class B
  • CE Low Voltage Directive
  • IEC60825-1

LED Safety:

  • Class 1
  • UL
  • cUL listed
  • TUV
Warranty
Limited Warranty:
5 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Hand Held 3800LR-12BLK Barcode Scanner is also known as HHP-3800LR-12BLK or 3800LR12BLK.
