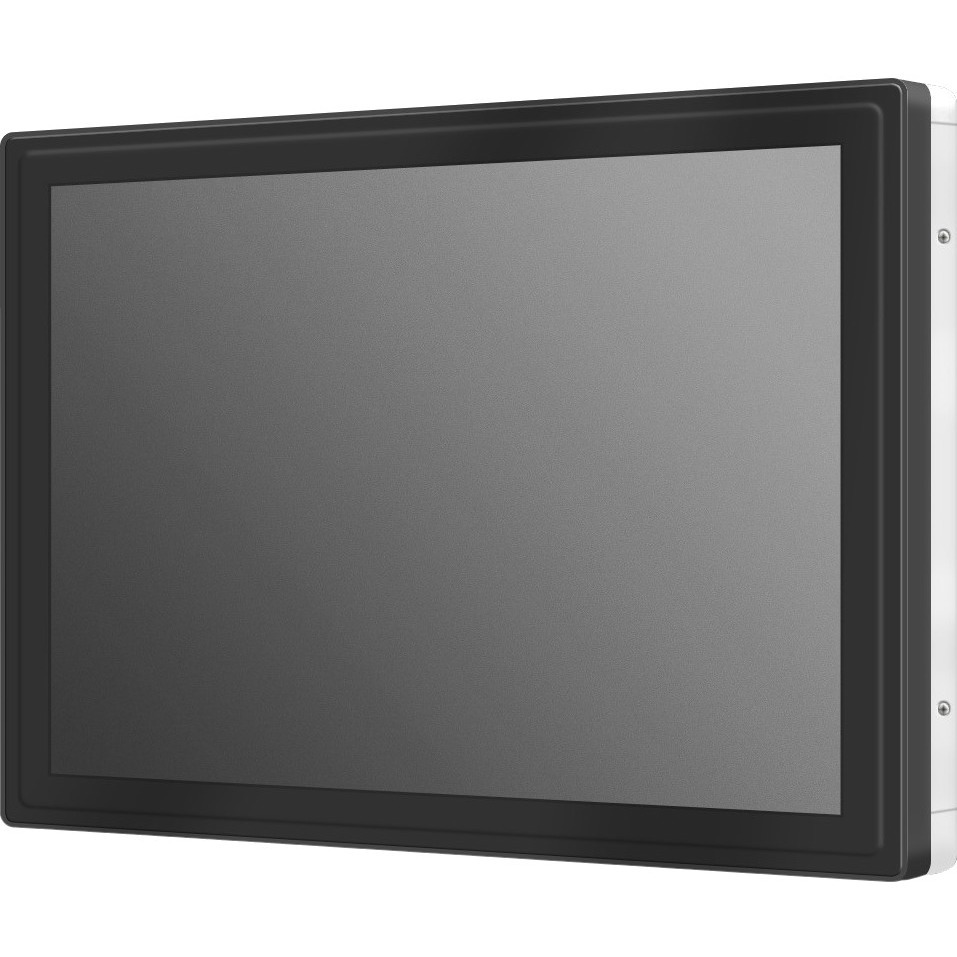

GVision R22ZD-OB-45P0 Touchscreen

Part Number: R22ZD-OB-45P0
Model: Parts
Add to My Shopping List Add to Compare
Discontinued Need Assistance?
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Screen Size Class
22"
Viewable Screen Size
22"
Screen Mode
SXGA
Response Time
5 ms

Product Description:

  GVision R22ZD-OB-45P0 22" Open-frame LCD Touchscreen Monitor - 16:9 - 5 ms - 22" Class - Projected CapacitiveMulti-touch Screen - 1280 x 1024 - SXGA - 16.7 Million Colors - 1,000:1 - 250 Nit - LED Backlight - USB - VGA - Black
Explore all GVision Parts Accessories
Add to Quote
GVision R22ZD-OB-45P0 Touchscreen
GVision R22ZD-OB-45P0 Touchscreen
GVision R22ZD-OB-45P0 Touchscreen GVision R22ZD-OB-45P0 Touchscreen

GVision Parts Accessory Model Overview

Products and parts from GVision.
GVision R22ZD-OB-45P0 Touchscreen Overview

GVision's line of rear mount projected capacitive displays are purpose built for system builders who require a rugged and durable touch screen solution that can easily be integrated into any embedded application. Flexibile mounting options makes it easy to mount the product into a custom enclosure. The touch screen is completely sealed to protect against the elements, which means it can be used either inside or out, and in high-traffice public facing applications.

Technical Information
Screen Size Class:
22"
Viewable Screen Size:
22"
Screen Mode:
SXGA
Response Time:
5 ms
Aspect Ratio:
16:9
Mount Type:
Rear Mount
Backlight Technology:
LED
Video
Maximum Resolution:
1280 x 1024
Color Supported:
16.7 Million Colors
Contrast Ratio:
1,000:1
Brightness:
250 Nit
Touchscreen Information
Touchscreen Type:
Projected Capacitive
Multi-touch Screen:
Yes
Interfaces/Ports
USB:
Yes
VGA:
Yes
Power Description
Operating Power Consumption:
18 W
Physical Characteristics
VESA Mount Compatible:
Yes
Product Color:
Black
Height:
13.4"
Width:
21.6"
Depth:
1.9"
Item Numbers
GTIN: 0801706006415
UPC: 801706006415
EAN: 0801706006415
UNSPSC: 43211903
The GVision R22ZD-OB-45P0 Touchscreen is also known as R22ZDOB45P0
