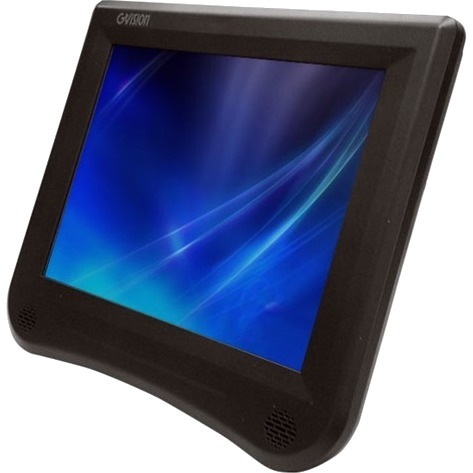

GVision P10PS-JA-453G Monitor

Part Number: P10PS-JA-453G
Model: P10PS
Add to My Shopping List Add to Compare
$612.50

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Viewable Screen Size
10.4"
Screen Mode
SVGA
Pixel Pitch
0.26400 mm x 0.26400 mm
Response Time
45 ms

Product Description:

  GVision P10PS-JA 10.4" LCD Touchscreen Monitor - 45 ms - 5-wire Resistive - 800 x 600 - SVGA - 400:1 - 220 Nit - Speakers - USB - VGA - Black
Explore all GVision P10PS Monitors
Add to Quote
GVision P10PS-JA-453G Monitor
GVision P10PS-JA-453G Monitor
GVision P10PS-JA-453G Monitor GVision P10PS-JA-453G Monitor
Full specifications (PDF)

GVision P10PS Monitor Model Overview

The GVISION 10.4" TFT LCD Monitor is designed to meet the demands of POS applications while offering remarkable versatility and flexibility. With a resolution of SVGA 800 x 600, this monitor delivers vibrant visuals with a 400:1 contrast ratio and 220 Cd/m² brightness, ensuring excellent visibility in various environments. Its compact 10.4-inch display supports both resistive and capacitive touch options, tailored to enhance user interaction. Whether mounted or placed on a stand, the monitor integrates seamlessly into any workspace.
Key Features:
  • High contrast color TFT LCD display supports resolution up to SVGA 800x600.
  • Plug & Play compatibility through DDC1/2B support.
  • Advanced OSD control for picture quality adjustments.
  • Built-in audio system for enhanced user experience.
  • Optional VESA mounting and black & white housing.
  • Customized touch solutions are acceptable.

Specifications:
  • Display: 10.4" TFT active matrix panel
  • Max Resolution: SVGA 800 x 600
  • Contrast Ratio: 400:1 (typical)
  • Brightness: 220 Cd/m² (typical)
  • Response Time: 45 ms (typical)
  • Effective Display Area: 211.2(H) x 158.4(V) mm
  • Viewing Angle: 110 (H) x 80 (V)
  • Input Signals: D-sub 15 pin (VGA)
  • Power Consumption: 18W
  • Dimensions: 278 x 242 x 116 mm
  • Weight: 1.64 Kg
  • Operating Conditions: 5ºC-35°C, Humidity 20%-80%
  • Certification: C-UL, FCC, CE, BSMI
Full specifications (PDF)
Technical Information
Viewable Screen Size:
10.4"
Screen Mode:
SVGA
Pixel Pitch:
0.26400 mm x 0.26400 mm
Response Time:
45 ms
Video
Maximum Resolution:
800 x 600
Contrast Ratio:
400:1
Brightness:
220 Nit
Audio
Speakers:
Yes
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
5-wire Resistive
Interfaces/Ports
USB:
Yes
VGA:
Yes
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Color Family:
Black
Product Color:
Black
Height:
9.5"
Width:
10.9"
Depth:
4.6"
Weight (Approximate):
12 lb
Item Numbers
GTIN: 0801706055048
UPC: 801706055048
EAN: 0801706055048
UNSPSC: 43211903
