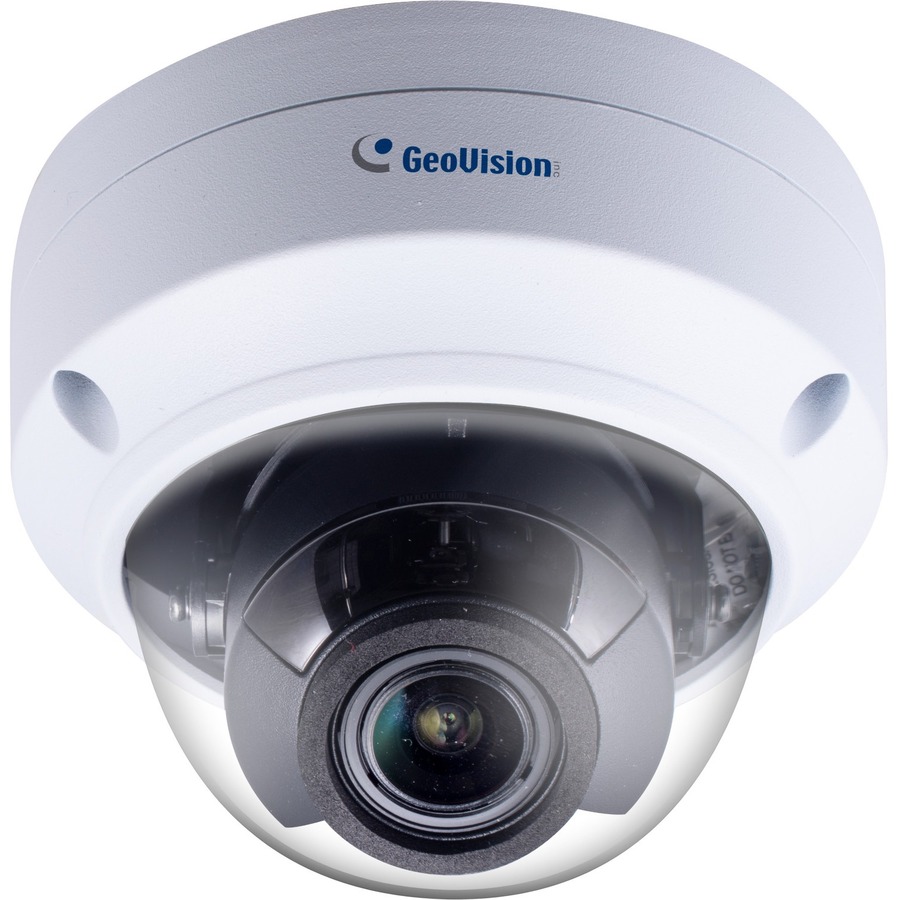

GeoVision GV-TVD4711 Security Camera

Part Number: GV-TVD4711
Model: Parts
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Recording Formats
HD
HD Recording
Yes
Night Vision Distance
98.43 ft
Number of IR LEDs
2

Product Description:

  Security Cameras, GeoVision GV-TVD4711, 4 Megapixel HD Network Camera, Dome, 98.43 ft, H.265, H.264, MJPEG, 2688 x 1520, 2.80 mm Varifocal Lens, 4.3x Optical, CMOS, Pendant Mount, Wall Mount, Junction Box Mount, Bracket Mount, Box Mount, Corner Mount, Pole Mount, In-ceiling, Vandal Resistant, Vandal Proof
Explore all GeoVision Parts Accessories
Add to Quote
GeoVision GV-TVD4711 Security Camera
GeoVision GV-TVD4711 Security Camera

GeoVision Parts Accessory Model Overview

Products and parts from GeoVision.
GeoVision GV-TVD4711 Security Camera Overview

The Vandal Proof IP Dome is an outdoor camera designed with IK10 vandal resistance and IP66 ingress protection. GV-TVD4711 supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The camera is equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. Adjustable in 3 axes (pan, tilt and rotate), it offers an entry-level surveillance solution with all the essential features and excellent image quality.

Technical Information
Recording Formats:
HD
HD Recording:
Yes
Night Vision Distance:
98.43 ft
Number of IR LEDs:
2
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
  • Color
  • Monochrome
Effective Camera Resolution:
4 Megapixel
Video
Video Formats:
  • H.265
  • H.264
  • MJPEG
Maximum Video Resolution:
2688 x 1520
Maximum Frame Rate:
30 fps
Lens
Lens Type:
Varifocal
Minimum Focal Length:
2.80 mm
Maximum Focal Length:
12 mm
Lens Included:
Yes
Lens Mount Type:
Φ14
Maximum Aperture:
f/1.6
Optical Zoom:
4.3x
Exposure
Shortest Shutter Speed:
1/100000 Second
Longest Shutter Speed:
1/6 Second
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Interfaces/Ports
Network (RJ-45):
Yes
Power Description
Input Voltage:
12 V DC
Physical Characteristics
Mount Type:
  • Pendant Mount
  • Wall Mount
  • Junction Box Mount
  • Bracket Mount
  • Box Mount
  • Corner Mount
  • Pole Mount
  • In-ceiling
Form Factor:
Dome
Durability:
  • Vandal Resistant
  • Vandal Proof
Diameter:
5"
Weight (Approximate):
1.26 lb
Environmental Conditions
Minimum Operating Temperature:
-31°F (-35°C)
Maximum Operating Temperature:
140°F (60°C)
Operating Humidity:
95%
Miscellaneous
Features:
  • Day/Night
  • Ingress Protection
  • Defog
  • 3D Noise Reduction
  • Motion Detection
  • Tampering Alarm
  • Privacy Masking
  • Audio Compression
  • Built-in IR LED
Indoor/Outdoor:
Outdoor
Package Contents:
    • 4MP H.265 4.3x Zoom Super Low Lux WDR Pro IR Vandal Proof IP Dome
    • Spare Waterproof Rubber Set
    • Screw Kit
    • Drill Template Paster
    • 2-Pin Power Terminal Block
    • Cable Protection Connector
    • Torx Wrench
    • Download Guide
    • Warranty Card
                Impact Protection Rating:
                IK10
                Ingress Protection Rating:
                IP66
                Environmentally Friendly:
                Yes
                Country of Origin:
                Taiwan
                Warranty
                Limited Warranty:
                24 Month
                Item Numbers
                GTIN: 4712896448946
                EAN: 4712896448946
                UNSPSC: 46171610
