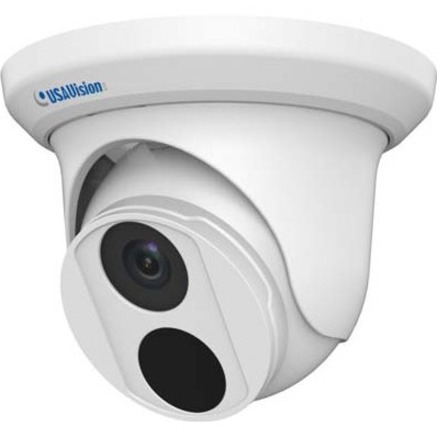

GeoVision ABD1300 Security Camera

GeoVision - A-SERIES 1.3MP IR EYEBALL DOME CAMERA, H.264, IP66, 2.8MM LENS 12VDC/POE.
  • 1/3" progressive scan low lux CMOS sensor
  • Min. illumination at 0.06 lux (B/W and color)
  • Triple streams from H.264 or MJPEG
  • Up to 30 fps at 1280x960
  • Intelligent IR
  • IR distance up to 30 m (98.4 ft)
  • Day and night function (with removable IR-cut filter)
  • 3-axis mechanism (pan / tilt / rotate)
  • Ingress protection (IP66)
  • Wide temperature tolerance (-35°C ~ 60°C / -31°F ~ 140°F)
Read More

Need a different version? See all GeoVision Parts Accessories

$83.58
Add to Quote
Add to My Shopping List Add to Compare
GeoVision ABD1300 Security Camera
GeoVision ABD1300 Security Camera GeoVision ABD1300 Security Camera
GeoVision ABD1300 Security Camera
GeoVision ABD1300 Security Camera
GeoVision Parts Accessory Model Overview
Products and parts from GeoVision.
GeoVision ABD1300 Security Camera Overview
The Eyeball Dome is an outdoor, network camera equipped with an automatic IR-cut filter and an IR LED for day and night surveillance. The camera adheres to IP66 standards.
Technical Information
Recording Formats:
HD
HD Recording:
Yes
Night Vision Distance:
98.43 ft
Number of IR LEDs:
1
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
  • Monochrome
  • Color
Effective Camera Resolution:
1.3 Megapixel
Video
Video Formats:
  • MJPEG
  • H.264
Maximum Video Resolution:
1280 x 960
Lens
Lens Type:
Fixed
Maximum Focal Length:
2.80 mm
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Interfaces/Ports
Network (RJ-45):
Yes
Physical Characteristics
Mount Type:
Wall Mount
Form Factor:
Dome
Height:
3.7"
Diameter:
5"
Weight (Approximate):
11.64 oz
Miscellaneous
Package Contents:
  • UVS-ABD1300 Network Camera
  • Waterproof Rubber Set
  • 3 x Screw
  • 3 x Screw Anchor
  • Drill Template Paster
  • Software Download Guide
  • Warranty Card
Environmentally Friendly:
Yes
Country of Origin:
Taiwan
Item Numbers
GTIN: 4712896445846
EAN: 4712896445846
UNSPSC: 46171610
