Network (RJ-45):
Yes
Audio Line In:
Yes
Audio Line Out:
Yes
Serial Port:
Yes
S-Video:
No
USB:
Yes
Token Ring:
No
GeoVision Parts Accessory Model Overview
Products and parts from GeoVision.

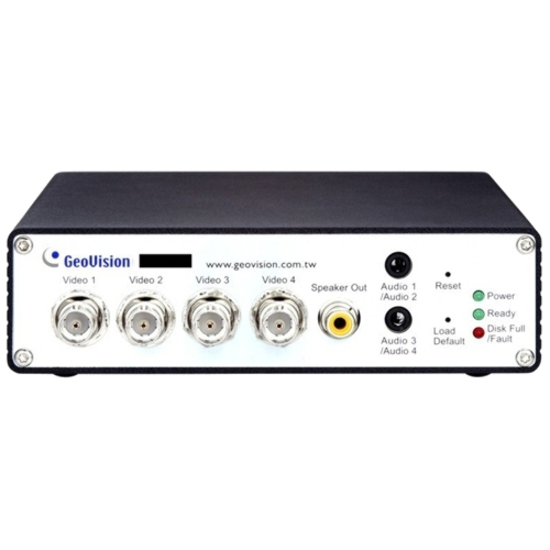

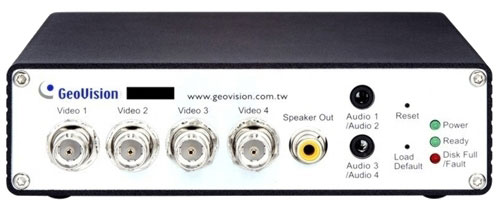

GeoVision 84-VS14000-100U Products Overview
GV-VS14 is a powerful H.264 Video Server with compact size and supports multiple applications. It supports 4-channel full D1 real-time video and audio encoding, fully integrated with GV-NVR to form the most powerful IP solution. It also supports over 50 PTZ models to fulfill various project demands. It can record video to a local USB storage, forming the smallest video recorder. With GPS and UMTS/ 3G/ 3.5G/ 4G support, it provides GIS solution integrated with GV-GIS. It can also active Tampering Alarm alerts when a tampering event happens to prevent crime events.
Interfaces/Ports
Network & Communication
Ethernet Technology:
Fast Ethernet
Wireless Specifications
Wireless LAN:
No
Management & Protocols
Protocols:
- HTTPS
- HTTP
- TCP/IP
- UDP
- SMTP
- FTP
- DHCP
- NTP
- UPnP
- DynDNS
- RTSP
- SNMP
Video
Maximum Frame Rate:
30 fps
Maximum Video Resolution:
704 x 576
Video Signal Format:
- NTSC
- PAL
Video Formats:
- H.264
- MJPEG
- AVI
Power Description
Input Voltage:
12 V DC
Physical Characteristics
Form Factor:
Standalone
Height:
1.6"
Width:
5.7"
Depth:
6.9"
Weight (Approximate):
1.61 lb
Miscellaneous
Certifications & Standards:
- CE
- FCC
- 802.3
- 802.3u
Item Numbers
UNSPSC:
43222619
Get help from a Barcoding Expert!
The GeoVision 84-VS14000-100U Products is also known as
84-VS14000-100U
