Fixed Focal Length:
4 mm
GeoVision 84-UBX2301-1F1U Products
Part Number:
84-UBX2301-1F1U
Model:
GeoVision Parts Accessory Model Overview
Products and parts from GeoVision.
GeoVision 84-UBX2301-1F1U Products Overview

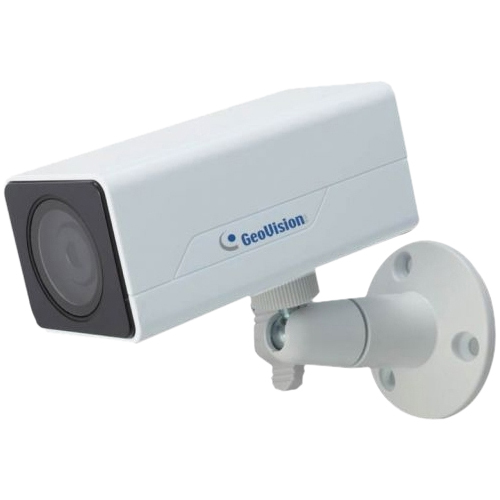

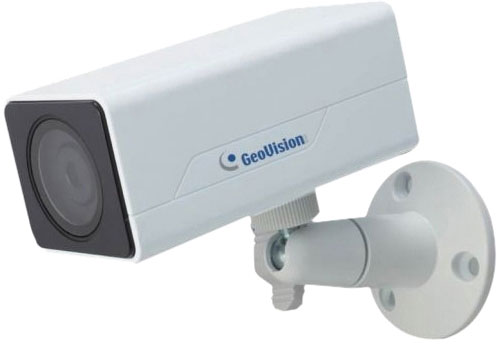

The Ultra Box Camerais a series of light-weighted cameras designed for indoor usage. Equipped with IR-cut filter and built-in IR LEDs, the Ultra Box Camera provides excellent image quality. The camera supports PoE and can be installed intuitively. It is available in different focal lengths to best suit your needs.
Technical Information
Display & Graphics
Image Sensor Type:
CMOS
Image Sensor Size:
1/2.5"
White Balance Modes:
- Auto
- Manual
Minimum Illumination:
0 lux
Color Supported:
- Color
- Monochrome
Video
Video Formats:
- H.264
- MJPEG
Maximum Video Resolution:
1920 x 1080
Maximum Frame Rate:
30 fps
Audio
Audio Formats:
AAC
Lens
Lens Type:
Fixed
Maximum Focal Length:
4 mm
Lens Included:
Yes
Lens Mount Type:
M12-mount
Maximum Aperture:
f/1.6
Focus Modes:
Fixed Focus
Exposure
Shortest Shutter Speed:
1/8000 Second
Longest Shutter Speed:
1/5 Second
Network & Communication
Connectivity Technology:
Wired
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Protocols:
- HTTP
- HTTPS
- TCP
- UDP
- SMTP
- FTP
- DHCP
- NTP
- UPnP
- DynDNS
- 3GPP
- ISMA
- RTSP
- PSIA
- SNMP
- QoS
- DSCP
- ONVIF
Controls/Indicators
Status Indicators:
LEDs:
- Power
- Status
Power Description
Maximum Power Consumption:
6.50 W
Physical Characteristics
Height:
1.8"
Width:
1.6"
Depth:
3.7"
Weight (Approximate):
4.23 oz
Miscellaneous
Features:
- Dual Stream
- Day/Night
- Motion Detection
- SD Card Local Storage
Indoor/Outdoor:
Indoor
Compatibility:
- CE
- FCC
- C-Tick
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Item Numbers
UNSPSC:
46171610
Get help from a Barcoding Expert!
The GeoVision 84-UBX2301-1F1U Products is also known as
84-UBX2301-1F1U
