GeoVision 520-RK1352-000 Products

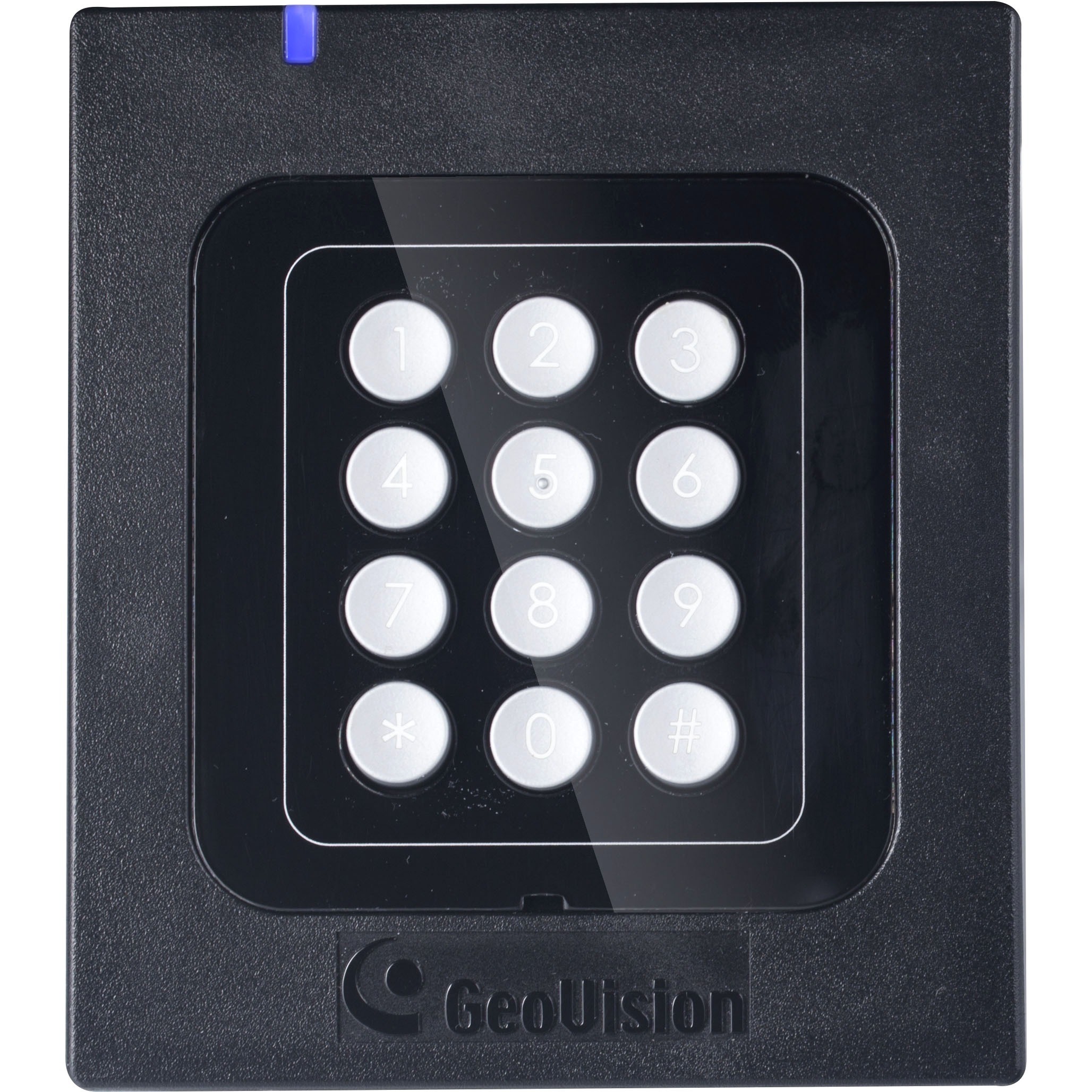

GeoVision - GeoVision GV-RK1352 Card Reader/Keypad Access Device - Black Door - Key Code, Proximity - 328 ft Operating Range - Serial - Wiegand - 12 V DC
  • Card reader with keypad
  • Identification card and PIN code recognition
  • Weather-proof and IP66-compliant housing (for outdoor use)
  • RS-485 output: 9,600 bps, connect up to 8 GV-RK1352 units
  • 13.56 MHz for ISO14443A (MIFARE DESFire, MIFARE Plus and MIFARE Classic)
  • Support for GV-Proximity Cards with GID (Geovision Identifier) to enhance security
Read More

Need a different version? See all GeoVision Parts Accessories

$135.45
Add to Quote
Add to My Shopping List Add to Compare
GeoVision 520-RK1352-000 Products
GeoVision 520-RK1352-000 Products
GeoVision 520-RK1352-000 Products
GeoVision Parts Accessory Model Overview
Products and parts from GeoVision.
GeoVision 520-RK1352-000 Products Overview

The GV-RK1352 is a card reader with keypad, designed to recognize PIN codes, identification cards or both. Featured with the Wiegand and RS-485 outputs, the unit can be connected to any standard access control panel. GV-RK1352 comes with a weather sealed and IP66 compliant housing for outdoor use.

Technical Information
Identification Method:
  • Key Code
  • Proximity
Operating Range:
328 ft
Application/Usage:
Door
Interfaces/Ports
Serial:
Yes
Wiegand:
Yes
Power Description
Input Voltage:
12 V DC
Physical Characteristics
Product Color:
Black
Height:
4.3"
Width:
3.7"
Depth:
0.9"
Weight (Approximate):
9.17 oz
Miscellaneous
Package Contents:
  • GV-RK1352 Card Reader/Keypad Access Device
  • 2 x Screws
  • 2 x Screw Anchor
  • 2 x Front Cover Plate
  • Software CD
  • Installation Guide
  • Warranty Card
Environmentally Friendly:
Yes
Item Numbers
UNSPSC: 46171600, 46171619
