GeoVision 160-ABL1300 Security System Products

GeoVision - GeoVision UVS-ABL1300 1.3 Megapixel Network Camera - Bullet - 98.43 ft Night Vision - MJPEG, H.264 - 1280 x 960 - CMOS - Wall Mount
  • 1/3" progressive scan low lux CMOS sensor
  • Min. illumination at 0.06 lux (B/W and color)
  • Triple streams from H.264 and MJEPG
  • Up to 30 fps at 1280 x 960
  • Intelligent IR
  • IR distance up to 30 m (98.4 ft)
  • Day and Night function (with removable IR-cut filter)
  • Ingress protection (IP66)
  • Wide temperature tolerance (-35°C ~ 60°C / -31°F ~ 140°F)
  • DC 12V / PoE (IEEE 802.3af)
  • Wide Dynamic Range (WDR)
  • Defog
  • 3D noise reduction
  • Motion detection
  • Text overlay
  • Privacy mask
  • ONVIF (Profile S) conformant
Read More

Need a different version? See all GeoVision Parts Accessories

$65.22
Add to Quote
Add to My Shopping List Add to Compare
GeoVision 160-ABL1300 Security System Products
GeoVision 160-ABL1300 Security System Products
GeoVision 160-ABL1300 Security System Products
GeoVision Parts Accessory Model Overview
Products and parts from GeoVision.
GeoVision 160-ABL1300 Security System Products Overview

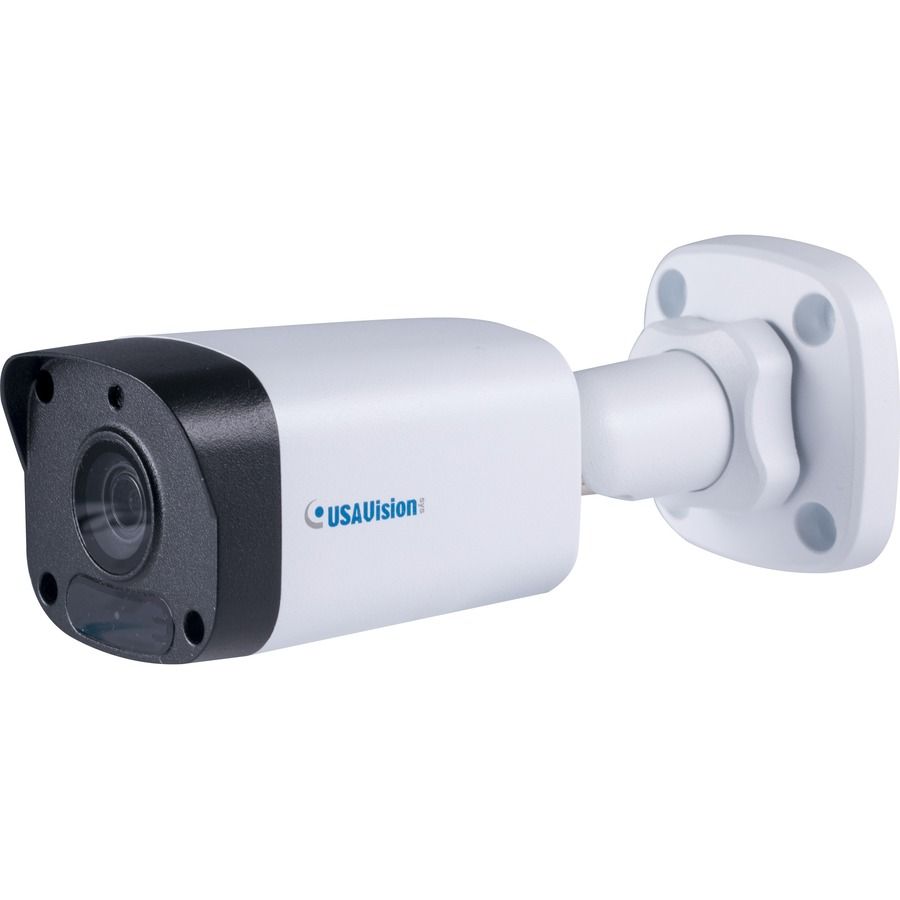

The Bullet Camera is an outdoor, network camera equipped with an automatic IR-cut filter and 2 IR LEDs for day and night surveillance. The camera adheres to IP66 standards. The camera offers an entry-level surveillance solution with all the essential features at excellent image quality.

Technical Information
HD Recording:
Yes
Night Vision Distance:
98.43 ft
Number of IR LEDs:
2
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
  • Monochrome
  • Color
Effective Camera Resolution:
1.3 Megapixel
Video
Video Formats:
  • MJPEG
  • H.264
Maximum Video Resolution:
1280 x 960
Lens
Maximum Focal Length:
3.60 mm
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Interfaces/Ports
Network (RJ-45):
Yes
Physical Characteristics
Mount Type:
Wall Mount
Form Factor:
Bullet
Height:
2.5"
Width:
2.5"
Length:
6.2"
Weight (Approximate):
15.87 oz
Miscellaneous
Package Contents:
  • 1.3MP H.264 Low Lux WDR Bullet IP Camera
  • Waterproof Rubber Set
  • 4 x Screw
  • 4 x Screw Anchor
  • Drill Template Paster
  • Software Download Guide
  • Warranty Card
Environmentally Friendly:
Yes
Environmental Certification:
  • WEEE
  • RoHS
Item Numbers
UNSPSC: 46171610
