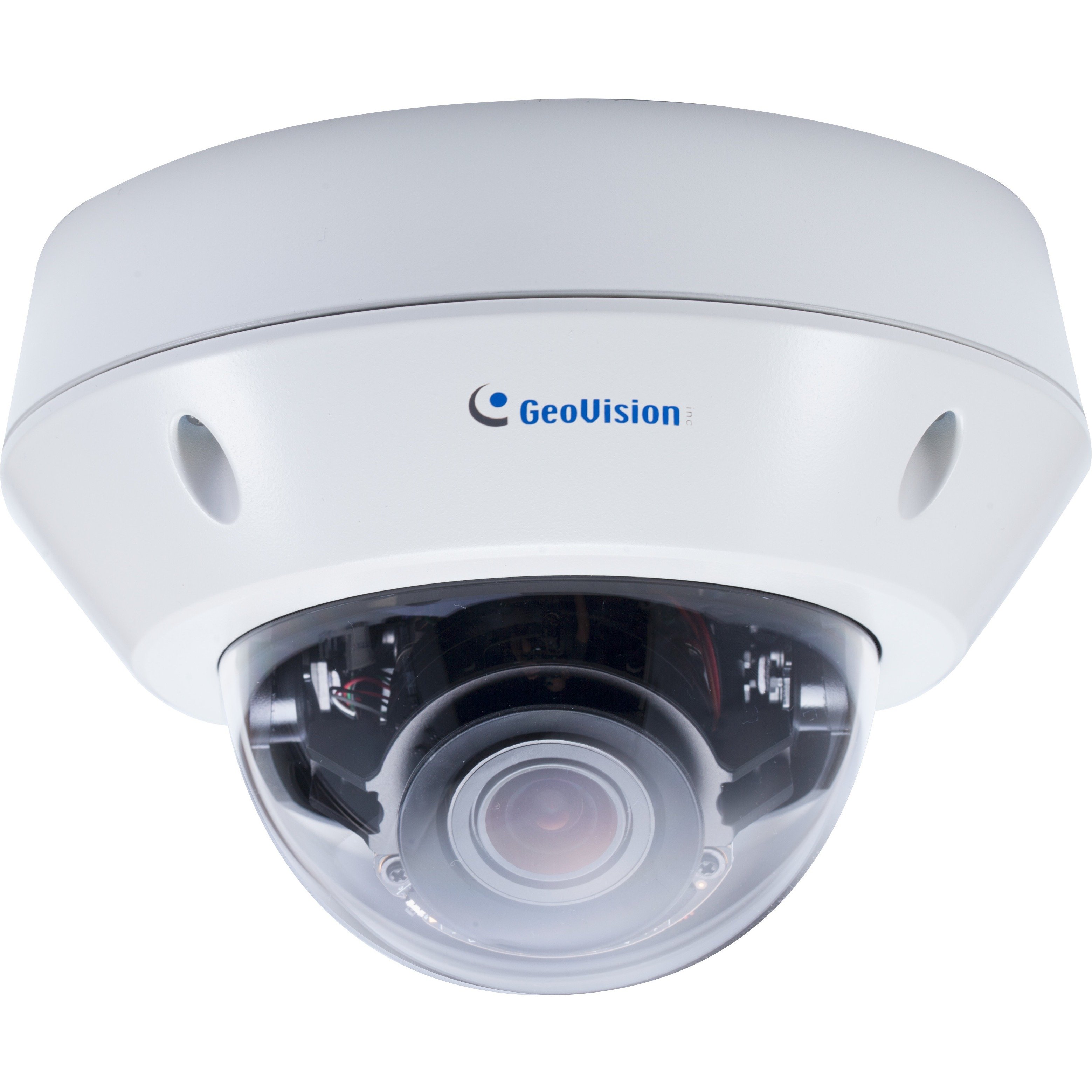

GeoVision 125-VD2712-AW0 Security Camera

GeoVision - GeoVision GV-VD2712 2 Megapixel Network Camera - Dome - 98.40 ft Night Vision - MJPEG, H.264, H.265 - 1920 x 1080 - 4.3x Optical - CMOS - Junction Box Mount, Wall Mount, Pendant Mount, Corner Mount, Pole Mount, Bracket Mount, Ceiling Mount, Conduit Mount
  • 1/2.8" progressive scan super low lux CMOS
  • Min. illumination at 0.004 lux
  • Dual streams from H.265, H.264, and MJPEG
  • Up to 30 fps at 1920 × 1080
  • Vandal resistance (IK10 for metal casing)
  • Ingress protection (IP67)
  • Motorized varifocal lens for remote focus / zoom adjustment
  • P-iris lens for auto iris control
  • Intelligent IR
  • IR distance up to 30 m (98.4 ft)
  • Day and Night function (with removable IR-cut filter)
  • 3-axis mechanism (pan / tilt / rotate)
  • DC 12V / PoE (IEEE 802.3af)
  • Two-way audio
  • Wide Dynamic Range Pro (WDR Pro)
  • 3D noise reduction
  • Smart streaming
  • Defog
  • Motion detection
  • Tampering alarm
Read More

Need a different version? See all GeoVision Parts Accessories

$363.06
Add to Quote
Add to My Shopping List Add to Compare
GeoVision 125-VD2712-AW0 Security Camera
GeoVision 125-VD2712-AW0 Security Camera
GeoVision 125-VD2712-AW0 Security Camera
GeoVision Parts Accessory Model Overview
Products and parts from GeoVision.
GeoVision 125-VD2712-AW0 Security Camera Overview

The Vandal Proof IP Dome is an outdoor camera designed with IK10 vandal resistance and IP67 ingress protection. With its motorized varifocal lens, the user can zoom and focus the camera from the Web interface. The camera can support H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. For night operations, the camera allows up to 30 m (98.4 ft) IR effective distance. GV-VD2712 is capable of not only providing a color live view in near darkness but also under contrasting light intensities with its super low lux CMOS image sensor and WDR Pro.

Technical Information
Recording Formats:
HD
HD Recording:
Yes
Night Vision Distance:
98.40 ft
Number of IR LEDs:
4
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
  • Monochrome
  • Color
Effective Camera Resolution:
2 Megapixel
Video
Video Formats:
  • MJPEG
  • H.264
  • H.265
Maximum Video Resolution:
1920 x 1080
Maximum Frame Rate:
30 fps
Lens
Lens Type:
Varifocal
Minimum Focal Length:
2.80 mm
Maximum Focal Length:
12 mm
Maximum Aperture:
f/1.7
Optical Zoom:
4.3x
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Interfaces/Ports
Network (RJ-45):
Yes
Physical Characteristics
Mount Type:
  • Junction Box Mount
  • Wall Mount
  • Pendant Mount
  • Corner Mount
  • Pole Mount
  • Bracket Mount
  • Ceiling Mount
  • Conduit Mount
Form Factor:
Dome
Height:
4.3"
Diameter:
6.3"
Weight (Approximate):
2.54 lb
Miscellaneous
Indoor/Outdoor:
Outdoor
Package Contents:
  • GV-VD2712 2MP H.265 4.3x Zoom Super Low Lux WDR Pro IR Vandal Proof IP Dome
  • 4 x Screw
  • 4 x Screw Anchor
  • TV-Out Wire
  • 2 x Audio Wires
  • I/O Cable
  • Installation Sticker
  • Conduit Converter
  • PG21 Conduit Connector
  • RJ-45 Connector
  • Waterproof Rubber Sets (for RJ-45 Cat.5 and DC 12V / for RJ-45 Cat.6)
  • Torx Wrench
  • Big Concave Hexagon Wrench
  • Small Concave Hexagon Wrench
  • Silica Gel Bag
  • Sticker (for Silica Gel Bag)
  • Ruler
  • GV-IPCAM Software DVD
  • GV-Software DVD
  • Warranty Card
Environmentally Friendly:
Yes
Item Numbers
UNSPSC: 46171610
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The GeoVision 125-VD2712-AW0 Security Camera is also known as 125-VD2712-AW0
