GeoVision 125-VD2702-AW0 Security Camera

Part Number: 125-VD2702-AW0
Model: Parts
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Recording Formats
HD
HD Recording
Yes
Night Vision Distance
98.40 ft
Number of IR LEDs
4

Product Description:

  GeoVision GV-VD2702 2 Megapixel Network Camera - Dome - 98.40 ft Night Vision - MJPEG, H.264, H.265 - 1920 x 1080 - 4.3x Optical - CMOS - Corner Mount, Pole Mount, Bracket Mount, Wall Mount, Ceiling Mount, Conduit Mount, Junction Box Mount
Explore all GeoVision Parts Accessories
Add to Quote
GeoVision 125-VD2702-AW0 Security Camera
GeoVision 125-VD2702-AW0 Security Camera

GeoVision Parts Accessory Model Overview

Products and parts from GeoVision.
GeoVision 125-VD2702-AW0 Security Camera Overview

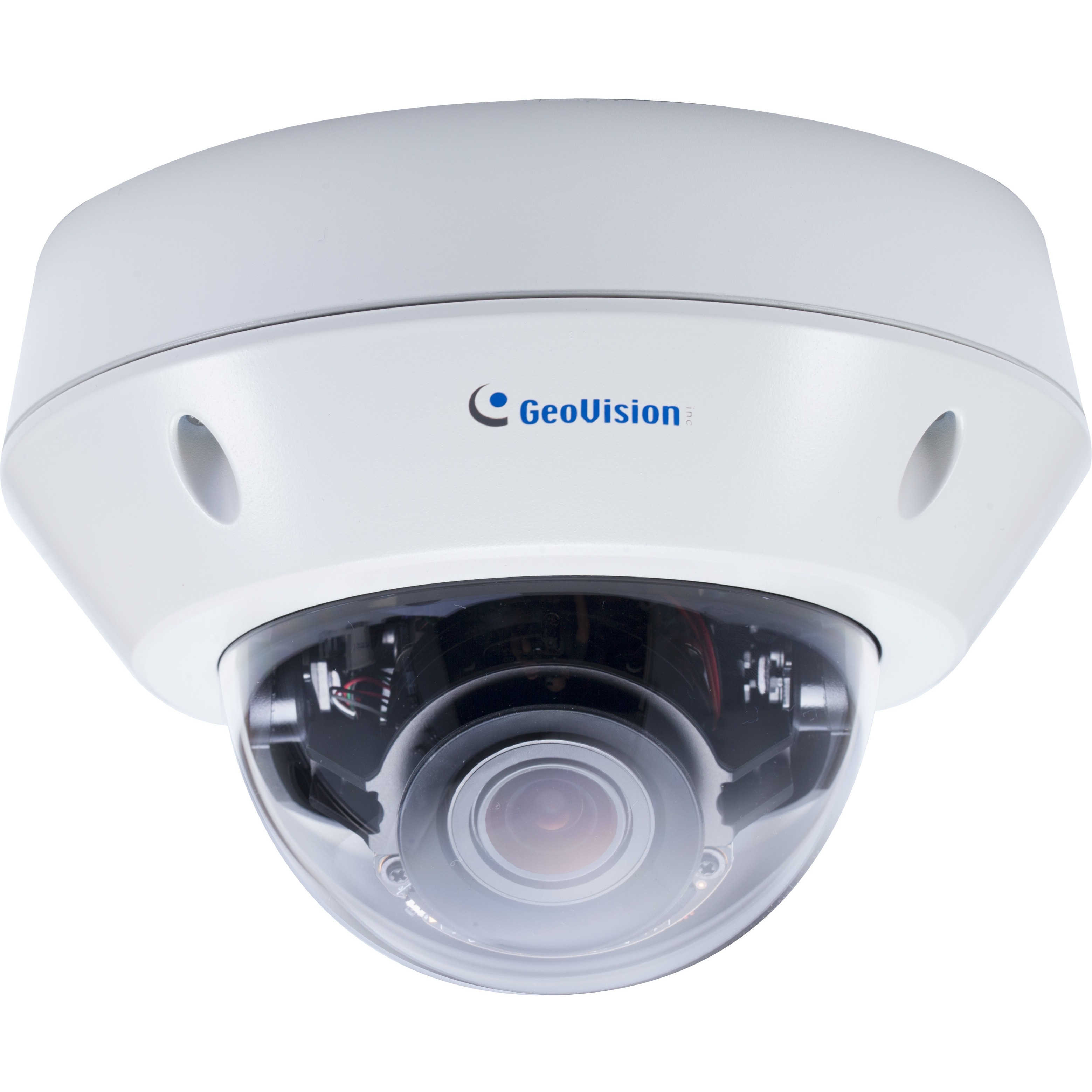

The Vandal Proof IP Dome is an outdoor camera designed with IK10 vandal resistance and IP67 ingress protection. The camera can support H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. For night operations, the camera allows up to 30 m (98.4 ft) IR effective distance. GV-VD2702 is capable of not only providing a color live view in near darkness but also under contrasting light intensities with its super low lux CMOS image sensor and WDR Pro.

Technical Information
Recording Formats:
HD
HD Recording:
Yes
Night Vision Distance:
98.40 ft
Number of IR LEDs:
4
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
  • Monochrome
  • Color
Effective Camera Resolution:
2 Megapixel
Video
Video Formats:
  • MJPEG
  • H.264
  • H.265
Maximum Video Resolution:
1920 x 1080
Lens
Lens Type:
Zoom
Minimum Focal Length:
2.80 mm
Maximum Focal Length:
12 mm
Optical Zoom:
4.3x
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Interfaces/Ports
Network (RJ-45):
Yes
Physical Characteristics
Mount Type:
  • Corner Mount
  • Pole Mount
  • Bracket Mount
  • Wall Mount
  • Ceiling Mount
  • Conduit Mount
  • Junction Box Mount
Form Factor:
Dome
Height:
4.3"
Diameter:
6.3"
Weight (Approximate):
2.54 lb
Miscellaneous
Indoor/Outdoor:
Outdoor
Package Contents:
  • GV-VD2702 2MP H.265 Super Low Lux WDR Pro IR Vandal Proof IP Dome
  • 4 x Screw
  • 4 x Screw Anchor
  • TV-Out Wire
  • 2 x Audio Wires
  • I/O Cable
  • Installation Sticker
  • Conduit Converter
  • PG21 Conduit Connector
  • RJ-45 Connector
  • Waterproof Rubber Sets (for RJ-45 Cat.5 and DC 12V / for RJ-45 Cat.6)
  • Torx Wrench
  • Big Concave Hexagon Wrench
  • Small Concave Hexagon Wrench
  • Silica Gel Bag
  • Sticker (for Silica Gel Bag)
  • Ruler
  • GV-IPCAM Software DVD
  • GV-Software DVD
  • Warranty Card
Environmentally Friendly:
Yes
Item Numbers
UNSPSC: 46171610
