GeoVision 125-TVD4700-000 Security Camera

Part Number: 125-TVD4700-000
Model: Parts
Add to My Shopping List Add to Compare
$131.22

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Recording Formats
HD
HD Recording
Yes
Night Vision Distance
98.43 ft
Number of IR LEDs
2

Product Description:

  GeoVision GV-TVD4700 4 Megapixel Network Camera - Dome - 98.43 ft Night Vision - H.264, H.265, MJPEG - 2592 x 1520 - 4.3x Optical - CMOS - Wall Mount, Junction Box Mount, Corner Mount, Pole Mount, In-ceiling, Pendant Mount
Explore all GeoVision Parts Accessories
Add to Quote
GeoVision 125-TVD4700-000 Security Camera
GeoVision 125-TVD4700-000 Security Camera

GeoVision Parts Accessory Model Overview

Products and parts from GeoVision.
GeoVision 125-TVD4700-000 Security Camera Overview

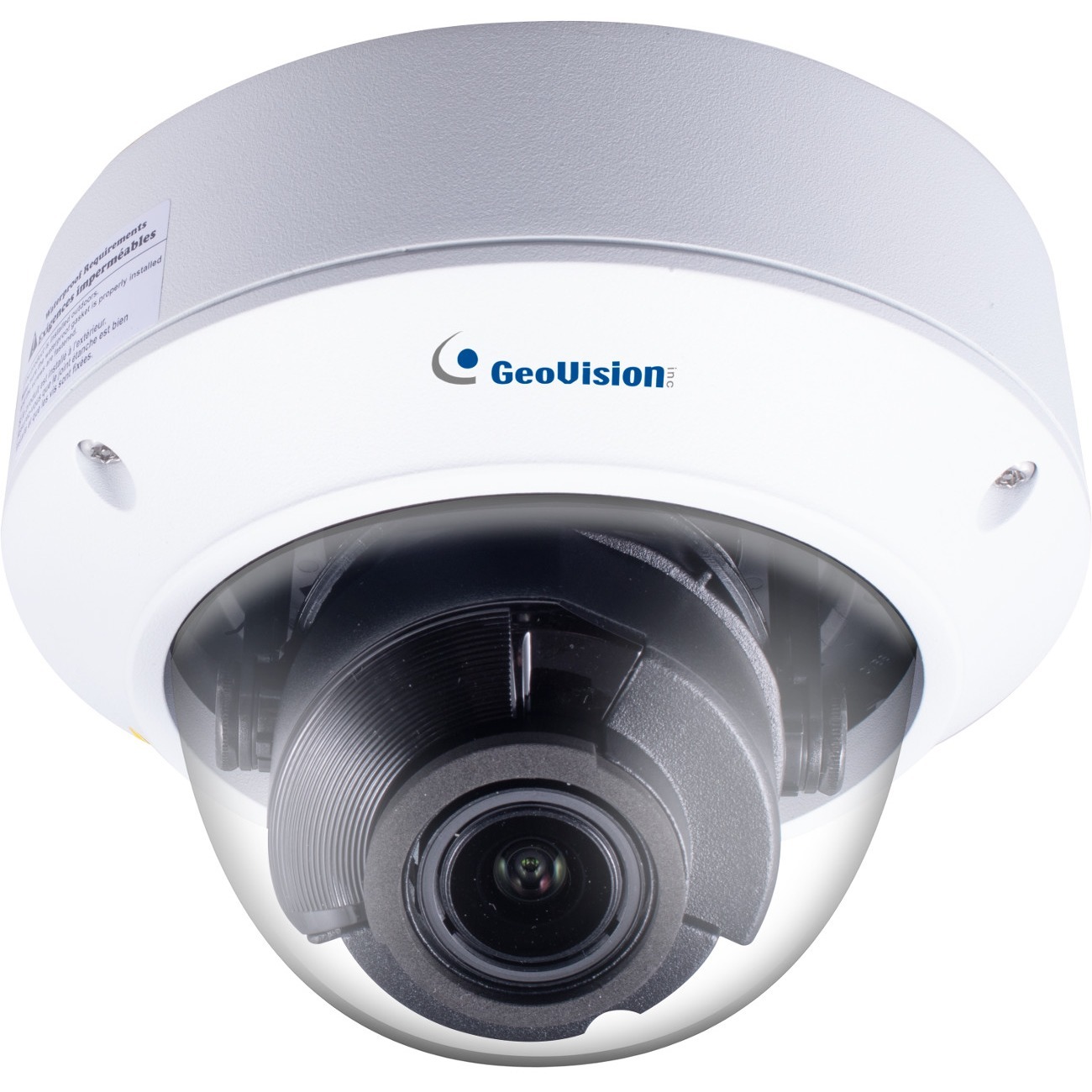

The Vandal Proof IP Dome is an outdoor camera designed with IK10 vandal resistance and IP67 ingress protection. GV-TVD4700 supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The camera is equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. Adjustable in 3 axes (pan, tilt and rotate), it offers an entry-level surveillance solution with all the essential features and excellent image quality.

Technical Information
Recording Formats:
HD
HD Recording:
Yes
Night Vision Distance:
98.43 ft
Number of IR LEDs:
2
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
Color
Effective Camera Resolution:
4 Megapixel
Video
Video Formats:
  • H.264
  • H.265
  • MJPEG
Maximum Video Resolution:
2592 x 1520
Maximum Frame Rate:
20 fps
Lens
Lens Type:
Zoom
Minimum Focal Length:
2.80 mm
Maximum Focal Length:
12 mm
Maximum Aperture:
f/1.6
Optical Zoom:
4.3x
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Interfaces/Ports
Network (RJ-45):
Yes
Physical Characteristics
Mount Type:
  • Wall Mount
  • Junction Box Mount
  • Corner Mount
  • Pole Mount
  • In-ceiling
  • Pendant Mount
Form Factor:
Dome
Diameter:
5.8"
Weight (Approximate):
2.03 lb
Environmental Conditions
Minimum Operating Temperature:
-40°F (-40°C)
Maximum Operating Temperature:
140°F (60°C)
Maximum Operating Humidity:
95%
Miscellaneous
Indoor/Outdoor:
Outdoor
Package Contents:
  • 4MP H.265 Low Lux WDR IR Vandal Proof IP Dome
  • Waterproof Rubber Set
  • Screw Kit
  • Drill Template Paster
  • Torx Wrench
  • Download Guide
  • Warranty Card
Impact Protection Rating:
IK10
Ingress Protection Rating:
IP67
NDAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Item Numbers
UNSPSC: 46171610
The GeoVision 125-TVD4700-000 Security Camera is also known as 125-TVD4700-000
