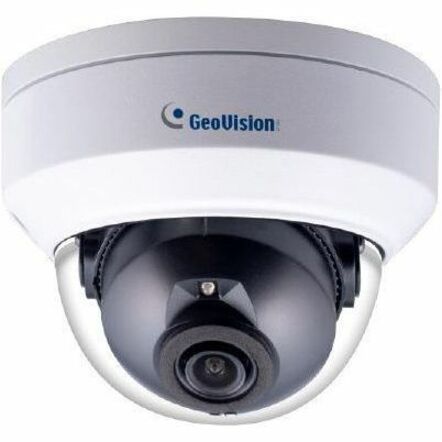

GeoVision 125-TDR4704-002 Security Camera

Part Number: 125-TDR4704-002
Model: Parts
Add to My Shopping List Add to Compare
$138.55
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
HD Recording
Yes
Night Vision
Yes
Night Vision Distance
98.43 ft
Night Vision Type
Infrared

Product Description:

  Security Cameras, GeoVision, Mini Dome, 4MP 2.8MM, Super Low Lux, WDR Pro, Fixed, IP H.265
Explore all GeoVision Parts Accessories
Add to Quote
GeoVision 125-TDR4704-002 Security Camera
GeoVision 125-TDR4704-002 Security Camera
GeoVision 125-TDR4704-002 Security Camera GeoVision 125-TDR4704-002 Security Camera

GeoVision Parts Accessory Model Overview

Products and parts from GeoVision.
GeoVision 125-TDR4704-002 Security Camera Overview

The Mini Fixed Rugged IP Dome is an outdoor, fixed, network camera equipped with an automatic IR-cut filter and an IR LED for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. It adheres to IP67 and IK10 standards, and can be powered through PoE. With its WDR Pro, it can process scenes with contrasting intensity of lights and produce clear image.

Technical Information
HD Recording:
Yes
Night Vision:
Yes
Night Vision Distance:
98.43 ft
Night Vision Type:
Infrared
Number of IR LEDs:
1
Display & Graphics
Image Sensor Type:
CMOS
Image Sensor Size:
1/3"
Color Supported:
Color
Field of View:
Horizontal FOV 101°
Effective Camera Resolution:
4 Megapixel
Video
Video Formats:
  • H.264
  • H.265
  • MJPEG
Maximum Video Resolution:
2688 x 1520
Maximum Frame Rate:
30 fps
Lens
Lens Type:
Fixed
Maximum Focal Length:
2.80 mm
Lens Included:
Yes
Lens Mount Type:
M12-mount
Maximum Aperture:
f/1.6
Exposure
Shortest Shutter Speed:
1/100000 Second
Longest Shutter Speed:
1 Second
Network & Communication
Connectivity Technology:
Wired
Ethernet Technology:
Fast Ethernet
Protocols:
  • 802.1X
  • ARP
  • DHCP
  • DDNS
  • DNS
  • DynDNS
  • FTP
  • HTTP
  • HTTPS
  • ICMP
  • IGMP
  • IPv4
  • IPv6
  • NTP
  • PPPoE
  • QoS
  • RTCP
  • RTP
  • RTSP
  • SMTP
  • SNMP
  • TCP
  • UDP
  • UPnP
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
Network (RJ-45):
Yes
Power Description
Input Voltage:
12 V DC
Power Source Type:
  • DC
  • PoE
Physical Characteristics
Form Factor:
Dome
Durability:
Vandal Resistant
Diameter:
4.3"
Weight (Approximate):
12.35 oz
Environmental Conditions
Minimum Operating Temperature:
-22°F (-30°C)
Maximum Operating Temperature:
140°F (60°C)
Miscellaneous
Features:
  • Ingress Protection
  • SD Card Local Storage
  • Defog
  • Motion Detection
  • Wide Dynamic Range
  • Day/Night
  • Tampering Alarm
  • Cross Line Detection
  • Anti-flicker
  • Mirror
Indoor/Outdoor:
Outdoor
Package Contents:
  • GV-TDR4704 Dome
  • Waterproof Rubber Set
  • Screw Kit
  • Drill Template Paster
  • Torx Wrench
  • Download Guide
Impact Protection Rating:
IK10
Ingress Protection Rating:
IP67
Country of Origin:
China
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
24 Month
Item Numbers
UNSPSC: 46171610
The GeoVision 125-TDR4704-002 Security Camera is also known as 125-TDR4704-002
