GeoVision 125-TDR4703-004 Security Camera

Part Number: 125-TDR4703-004
Model: Parts
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Recording Formats
HD
HD Recording
Yes
Night Vision
Yes
Night Vision Distance
98.43 ft

Product Description:

  Security Cameras, GeoVision, 4MP Outdoor Network Mini Dome Camera with Night Vision & 4mm Lens
Explore all GeoVision Parts Accessories
Add to Quote
GeoVision 125-TDR4703-004 Security Camera
GeoVision 125-TDR4703-004 Security Camera
GeoVision 125-TDR4703-004 Security Camera GeoVision 125-TDR4703-004 Security Camera

GeoVision Parts Accessory Model Overview

Products and parts from GeoVision.
GeoVision 125-TDR4703-004 Security Camera Overview

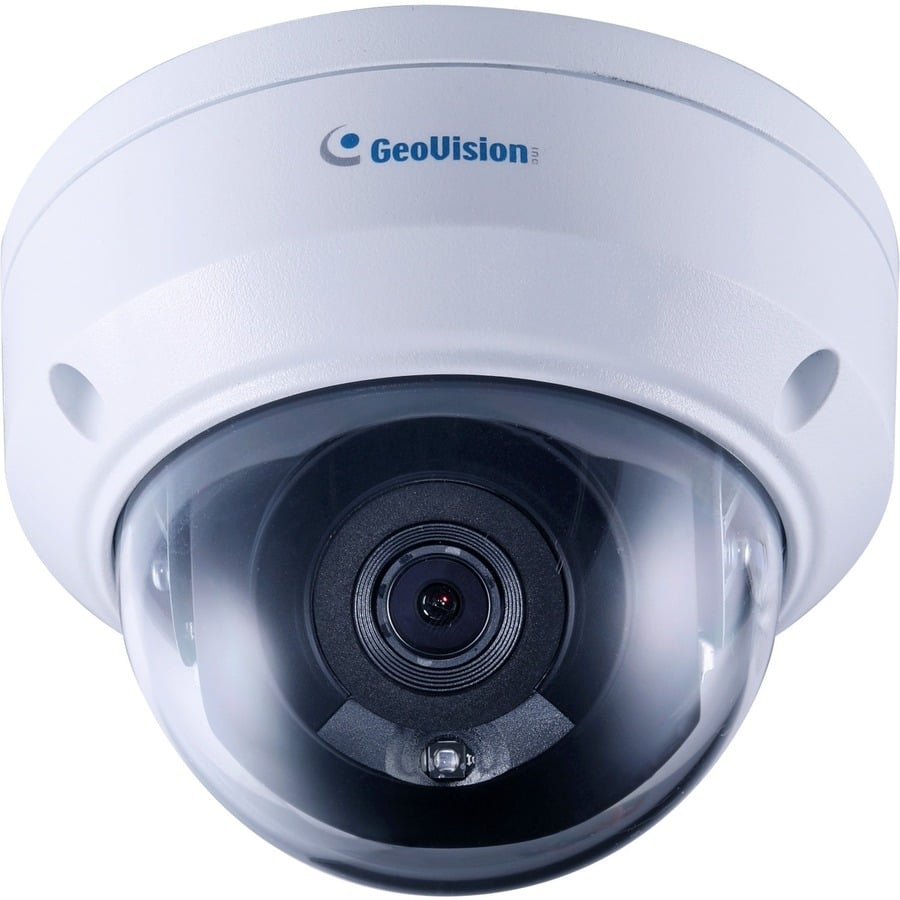

GV-TDR4703 is an outdoor, fixed, network camera equipped with an automatic IR-cut filter and an IR LED for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The camera adheres to IP67 and IK10 standards, and can be powered through PoE.

Technical Information
Recording Formats:
HD
HD Recording:
Yes
Night Vision:
Yes
Night Vision Distance:
98.43 ft
Night Vision Type:
Infrared
Number of IR LEDs:
1
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
Color
Field of View:
82°
Effective Camera Resolution:
4 Megapixel
Video
Video Formats:
  • H.265
  • H.264
  • MJPEG
Maximum Video Resolution:
2688 x 1520
Maximum Frame Rate:
30 fps
Lens
Lens Type:
Fixed
Maximum Focal Length:
4 mm
Lens Included:
Yes
Lens Mount Type:
M12-mount
Maximum Aperture:
f/2
Exposure
Shortest Shutter Speed:
1/100000 Second
Longest Shutter Speed:
1 Second
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
Network (RJ-45):
Yes
Power Description
Input Voltage:
12 V DC
Physical Characteristics
Mount Type:
  • Pendant Mount
  • Wall Mount
  • Junction Box Mount
  • Ceiling Mount
  • Corner Mount
  • Pole Mount
Form Factor:
Dome
Durability:
Vandal Resistant
Diameter:
4.3"
Weight (Approximate):
15.87 oz
Environmental Conditions
Minimum Operating Temperature:
-31°F (-35°C)
Maximum Operating Temperature:
140°F (60°C)
Operating Humidity:
95%
Miscellaneous
Features:
  • Wide Dynamic Range
  • Rugged Design
  • Removable IR Cut-off Filter
  • Built-in IR LED
  • Day/Night
  • 3-Axis Adjustable
  • SD Card Local Storage
  • Defog
  • 3D Digital Noise Reduction
  • Motion Detection
  • Privacy Masking
  • Automatic White Balance
  • Auto Gain Control
  • Tampering Alarm
  • Audio Detection
  • Human Detection
  • Audio Compression
  • Ingress Protection
Indoor/Outdoor:
Outdoor
Package Contents:
  • 4MP H.265 Super Low Lux WDR Pro IR Mini Fixed Rugged IP Dome
  • Waterproof Rubber Set
  • Screw Kit
  • Drill Template Paster
  • Torx Wrench
  • Download Guide
  • Warranty Card
Impact Protection Rating:
IK10
Ingress Protection Rating:
IP67
Environmentally Friendly:
Yes
NDAA Compliant:
Yes
Warranty
Limited Warranty:
24 Month
Item Numbers
UNSPSC: 46171610
