GeoVision 125-SD2723-20X Security Camera

Part Number: 125-SD2723-20X
Model: Parts
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Recording Formats
HD
HD Recording
Yes
Night Vision Distance
820.21 ft
Number of IR LEDs
4

Product Description:

  GeoVision GV-SD2723-IR 2 Megapixel Network Camera - Dome - 820.21 ft Night Vision - H.265, H.264, MJPEG - 1920 x 1080 - 20x Optical - CMOS - Straight Tube Box Mount, Straight Tube Mount, Swan Neck Mount, Corner Mount, Pole Mount, Pendant Mount, Wall Mount
Explore all GeoVision Parts Accessories
Add to Quote
GeoVision 125-SD2723-20X Security Camera
GeoVision 125-SD2723-20X Security Camera

GeoVision Parts Accessory Model Overview

Products and parts from GeoVision.
GeoVision 125-SD2723-20X Security Camera Overview

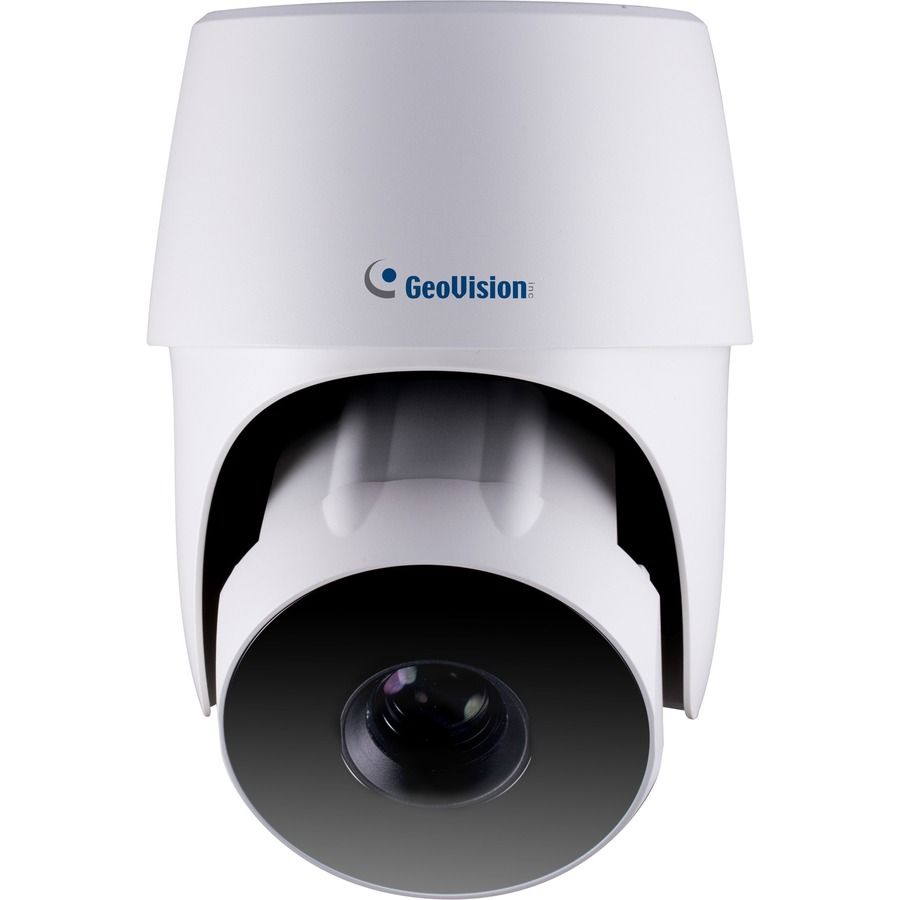

The GV-SD2723-IR IP Speed Dome is an outdoor network PTZ camera that offers 20x optical zoom and 32x digital zoom, and is capable of capturing high-definition images (1080p at 50 fps) with great details. In low-light environments, night vision is enhanced by its high power LEDs with an effective IR distance of up to 250 m (820 ft).

Wide surveillance coverage is made possible with 360° endless panning and -20 ~ 200° tilting capacity. PTZ functions such as Preset, Sequence, Auto Pan, Cruise and Tour can be programmed and activated by schedule. The GV-SD2723-IR IP Speed Dome supports a pan/tilt speed of from 0.1 to 400° per second, with 0.2° pan accuracy, for fast and accurate tracking ability. The camera adheres to IK10 and IP66 standards.
Technical Information
Recording Formats:
HD
HD Recording:
Yes
Night Vision Distance:
820.21 ft
Number of IR LEDs:
4
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
  • Monochrome
  • Color
Effective Camera Resolution:
2 Megapixel
Video
Video Formats:
  • H.265
  • H.264
  • MJPEG
Maximum Video Resolution:
1920 x 1080
Lens
Lens Type:
Zoom
Minimum Focal Length:
4.70 mm
Maximum Focal Length:
94 mm
Optical Zoom:
20x
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Interfaces/Ports
Network (RJ-45):
Yes
Physical Characteristics
Mount Type:
  • Straight Tube Box Mount
  • Straight Tube Mount
  • Swan Neck Mount
  • Corner Mount
  • Pole Mount
  • Pendant Mount
  • Wall Mount
Form Factor:
Dome
Height:
11.5"
Diameter:
7.9"
Weight (Approximate):
12.35 lb
Miscellaneous
Package Contents:
  • 20x PoE 2MP H.265 Low Lux WDR Pro Outdoor IR IP Speed Dome
  • Pendant Tube (GV-Mount207)
  • 2 x Hex Key
  • Rubber Ring
  • RJ-45 Connector
  • Data Cable
  • Download Guide
  • Warranty Card
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
24 Month
Item Numbers
UNSPSC: 46171610
