Recording Formats:
HD
HD Recording:
Yes
GeoVision 125-QSD5730-000 Security Camera
Part Number:
125-QSD5730-000
Model:
Parts
GeoVision Parts Accessory Model Overview
Products and parts from GeoVision.
GeoVision 125-QSD5730-000 Security Camera Overview

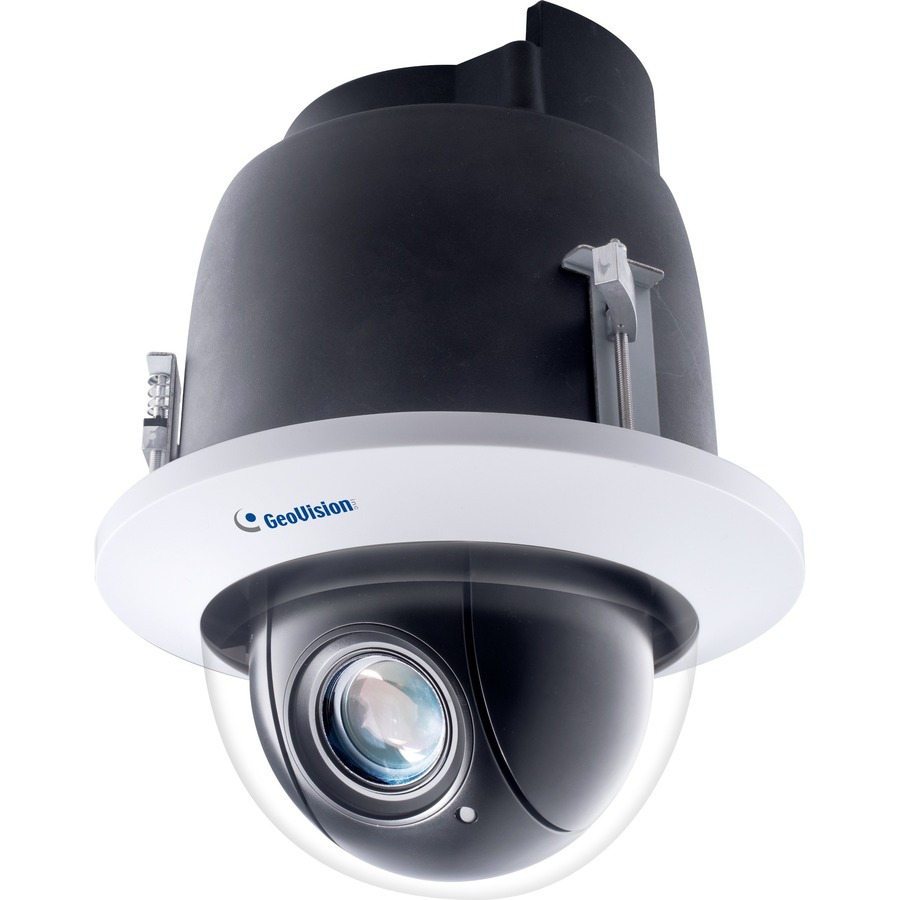

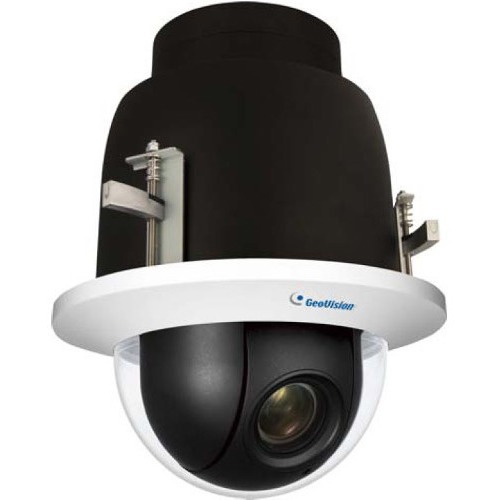

The GV-IP Speed Dome (GV-QSD5730-Indoor) is an indoor network PTZ camera that offers 33x optical zoom and 10x digital zoom, capable of showing smooth live view with great details. This camera can simultaneously deliver four video streams in resolutions up to 2592 x 1944 at 30 fps. The GV-QSD5730-Indoor supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths.
Wide surveillance coverage is made possible with 360° endless panning and -10°~100° tilting capacity. PTZ functions such as Preset, Auto Pan, and Patrol can be programmed and activated by schedule. The GV-QSD5730-Indoor supports pan/tilt speeds ranging from a fast patrol of 400° and 300° per second to a slow ramble of 0.1° per second with 0.1° pan accuracy for fast and accurate tracking ability.
GV-QSD5730-Indoor also features Servo Feedback and Electronic Image Stabilizer (EIS) technology. The Servo Feedback technology ensures the camera view returns to the previous position when encountering external force (e.g. human interference) or environmental vibration. EIS technology can effectively produce stable images by actively sensing directional movement of the images and compensating accordingly; this is particularly useful for cameras installed at places where environmental movement (e.g. strong wind, the passing-by heavy vehicles) is constant, and when high optical zoom is executed.
Technical Information
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
Color
Field of View:
55.4°~1.9°
Effective Camera Resolution:
5 Megapixel
Video
Video Formats:
- MJPEG
- H.264
- H.265
Maximum Video Resolution:
2592 x 1944
Maximum Frame Rate:
30 fps
Video Signal Format:
- NTSC
- PAL
Lens
Lens Type:
Varifocal
Minimum Focal Length:
4.60 mm
Maximum Focal Length:
152 mm
Lens Included:
Yes
Maximum Aperture:
f/1.6
Optical Zoom:
33x
Exposure
Shortest Shutter Speed:
1/100000 Second
Longest Shutter Speed:
1 Second
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
Network (RJ-45):
Yes
Power Description
Input Voltage:
- 24 V AC
- 30 V DC
Physical Characteristics
Form Factor:
Dome
Height:
10.4"
Diameter:
8.3"
Weight (Approximate):
6.39 lb
Environmental Conditions
Minimum Operating Temperature:
-13°F (-25°C)
Maximum Operating Temperature:
122°F (50°C)
Operating Humidity:
90%
Miscellaneous
Features:
- Wide Dynamic Range
- PTZ
- Electronic Image Stabilization
- Day/Night
- Removable IR Cut-off Filter
- SD Card Local Storage
- Privacy Masking
- 3D Digital Noise Reduction
- Automatic White Balance
- Audio Compression
- Microphone In
- Motion Detection
Indoor/Outdoor:
Indoor
Package Contents:
- 33x 5MP H.265 Low Lux WDR Pro IP Speed Dome
- Drill Template Paster
- 3-Pin Power Terminal Block (AC 24V)
- 14-Pin Alarm/Audio I/O Terminal Block
- Download Guide
- Warranty Card
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
24 Month
