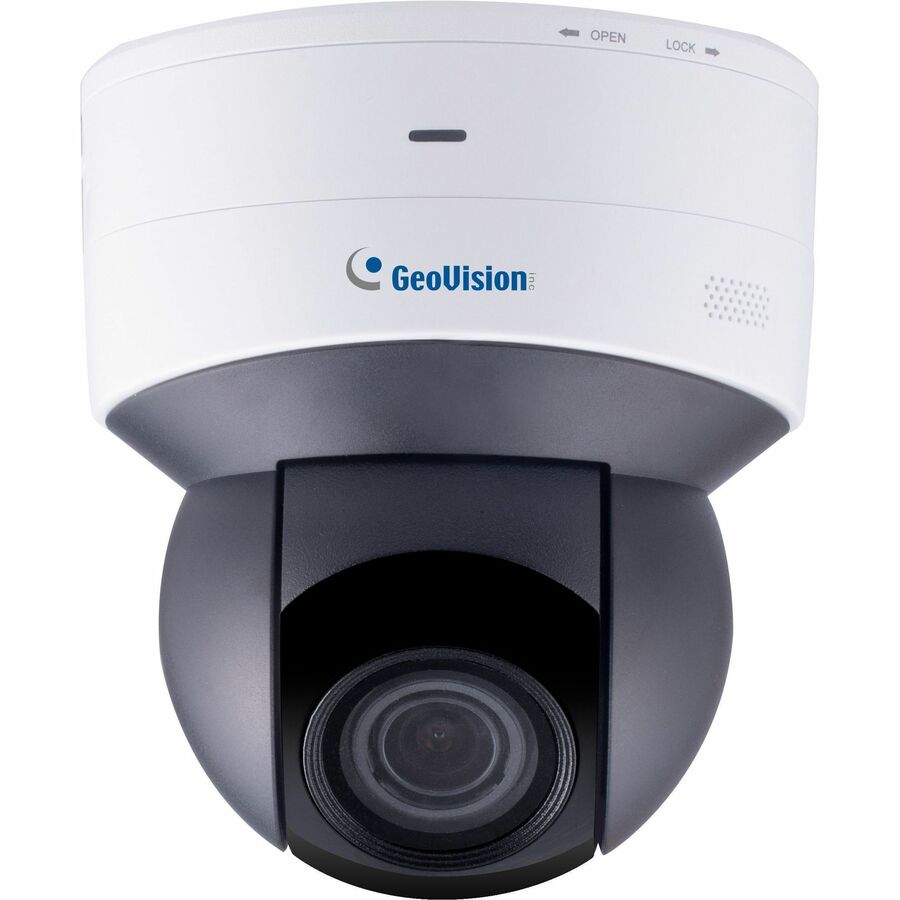

GeoVision 125-PTZ580W-IR00 Security Camera

Part Number: 125-PTZ580W-IR00
Model: Parts
$151.11

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
HD Recording
Yes
Night Vision
Yes
Night Vision Distance
98.43 ft
Night Vision Type
Infrared

Product Description:

  Security Cameras, GeoVision, AI PTZ, 5MP 5X, Super Low Lux, WDR Pro, IP. H.265 Motorized

GeoVision Parts Accessory Model Overview

Products and parts from GeoVision.
GeoVision 125-PTZ580W-IR00 Security Camera Overview

GV-PTZ5810-IR is an indoor network PTZ camera that offers 5x optical zoom, capable of showing smooth live view with great details. This camera can simultaneously deliver three video streams in resolutions up to 2880 x 1620 at 30 fps. In low-light environments, night vision is enhanced with its LEDs, which allow up to 30 m (100 ft) effective IR distance. The camera can process scenes with contrasting intensity of lights and produce clear image using the built-in WDR Pro. GV-PTZ5810-IR supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths.

Wide surveillance coverage is made possible with 350° panning and 0° ~ 90° tilting capacity. PTZ functions such as Preset, and Patrol can be programmed and activated by schedule. GV-PTZ5810-IR supports pan / tilt speeds ranging from a patrol of 60° per second and 50°per second to a slow ramble of 0.1° per second with 0.1° pan accuracy.

Technical Information
HD Recording:
Yes
Night Vision:
Yes
Night Vision Distance:
98.43 ft
Night Vision Type:
Infrared
Number of IR LEDs:
2
Camera Iris:
Fixed
AI-powered:
Yes
Display & Graphics
Image Sensor Type:
CMOS
Image Sensor Size:
1/2.7"
Color Supported:
Color
Field of View:
Horizontal 30.6° ~ 106.9°
Effective Camera Resolution:
5 Megapixel
Video
Video Formats:
  • H.265
  • H.264
  • MJPEG
Maximum Video Resolution:
2880 x 1620
Maximum Frame Rate:
30 fps
Audio
Audio Support:
Yes
Lens
Lens Type:
Varifocal
Minimum Focal Length:
2.70 mm
Maximum Focal Length:
13.50 mm
Lens Included:
Yes
Maximum Aperture:
f/1.2
Optical Zoom:
5x
Exposure
Shortest Shutter Speed:
1/100000 Second
Longest Shutter Speed:
1 Second
Network & Communication
Connectivity Technology:
Wired
Ethernet Technology:
Fast Ethernet
Protocols:
  • ONVIF
  • 802.1X
  • ARP
  • DHCP
  • DDNS
  • DNS
  • DynDNS
  • FTP
  • HTTP
  • HTTPS
  • ICMP
  • IGMP
  • IPv4
  • NTP
  • PPPoE
  • QoS
  • RTCP
  • RTP
  • RTSP
  • SMTP
  • SNMP
  • TCP
  • UDP
  • UPnP
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
Network (RJ-45):
Yes
Power Description
Maximum Power Consumption:
15 W
Input Voltage:
12 V DC
Power Source Type:
  • DC
  • PoE+
  • PoE
Physical Characteristics
Mount Type:
  • Ceiling Mount
  • Wall Mount
Height:
5.7"
Diameter:
5.1"
Weight (Approximate):
0.03 oz
Environmental Conditions
Minimum Operating Temperature:
14°F (-10°C)
Maximum Operating Temperature:
122°F (50°C)
Maximum Operating Humidity:
95%
Miscellaneous
Features:
  • Built-in IR LED
  • Day/Night
  • White Balance
  • Auto Gain Control
  • Wide Dynamic Range
  • Video Management System
  • Audio Compression
  • Cross Line Detection
  • Privacy Masking
  • PTZ
Indoor/Outdoor:
Indoor
Package Contents:
  • 5MP H.265 5x Zoom Super Low Lux WDR Pro IR IP Mini PTZ Camera
  • Screw Kit
  • Drill Template Paster
  • Download Guide
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
24 Month
Item Numbers
UNSPSC: 46171610
