HD Recording:
Yes
Night Vision:
Yes
Night Vision Distance:
65.62 ft
Night Vision Type:
Infrared
Number of IR LEDs:
3
GeoVision Parts Accessory Model Overview
Products and parts from GeoVision.

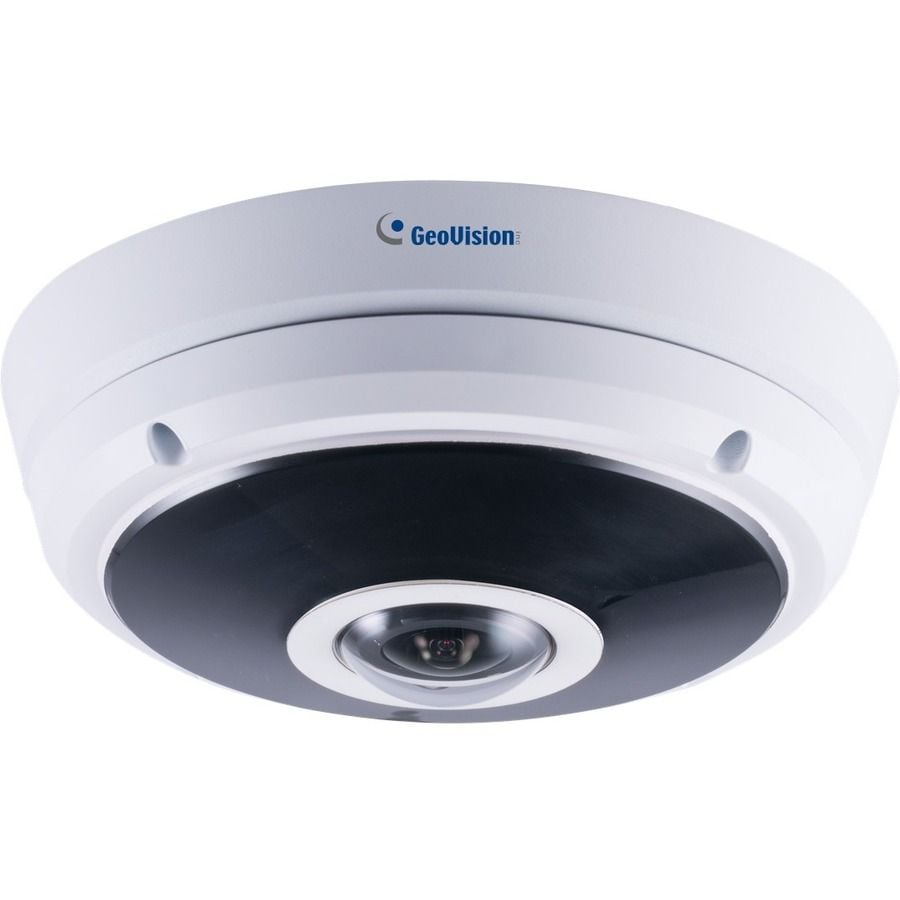

GeoVision 125-EFER3700-0 Security Camera Overview
GV-EFER3700 is a 3 MP outdoor fisheye camera allowing you to monitor all angles of a location and can be installed to the ceiling and the wall. Equipped with automatic IR-cut filter and IR LEDs, GV-EFER3700 is capable of day and night surveillance. Without installing any software, you can watch live view and utilize functions such as video recording, privacy mask, and alert notification through its Web interface. In addition, the camera seamlessly integrates with GV-DVR / NVR / VMS, providing advanced monitoring and video management features.
The camera supports H.265 video codec to achieve better compression ratio while maintaining high picture quality at reduced network bandwidths. GV-EFER3700 is capable of providing a color live view not only in near darkness but also under contrasting light intensities with its super low lux CMOS image sensor and WDR pro.
Technical Information
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
Color
Field of View:
Horizontal 185°
Effective Camera Resolution:
3 Megapixel
Video
Video Formats:
- H.265
- H.264
- MJPEG
Maximum Video Resolution:
2048 x 1536
Maximum Frame Rate:
30 fps
Lens
Lens Type:
Fixed
Maximum Focal Length:
1.24 mm
Lens Included:
Yes
Lens Mount Type:
M12-mount
Maximum Aperture:
f/1.8
Exposure
Shortest Shutter Speed:
1/16000 Second
Longest Shutter Speed:
1/5 Second
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
Network (RJ-45):
Yes
Power Description
Input Voltage:
12 V DC
Physical Characteristics
Mount Type:
- Straight Tube Mount
- Junction Box Mount
- Wall Mount
- Pendant Mount
- Swan Neck Mount
- Power Box Mount
Form Factor:
Fisheye
Durability:
Vandal Resistant
Diameter:
5.5"
Weight (Approximate):
1.48 lb
Environmental Conditions
Minimum Operating Temperature:
-22°F (-30°C)
Maximum Operating Temperature:
122°F (50°C)
Operating Humidity:
90%
Miscellaneous
Features:
- Rugged Design
- Wide Dynamic Range
- Ingress Protection
- Removable IR Cut-off Filter
- Built-in IR LED
- SD Card Local Storage
- 3D Noise Reduction
- Tampering Alarm
- Privacy Masking
- Automatic White Balance
- Auto Gain Control
- Day/Night
Indoor/Outdoor:
Outdoor
Package Contents:
- 3MP H.265 Super Low Lux WDR Pro IR Fisheye Rugged IP Camera
- Torx Wrench
- 2 x Screw
- 2 x Screw Anchor
- 2 x Silica Gel Bag
- Terminal Block (3-pin)
- Installation Sticker
- Download Guide
- Warranty Card
Impact Protection Rating:
IK8
Ingress Protection Rating:
IP67
Environmentally Friendly:
Yes
Item Numbers
UNSPSC:
46171610
Get help from a Barcoding Expert!
The GeoVision 125-EFER3700-0 Security Camera is also known as
125-EFER3700-0
