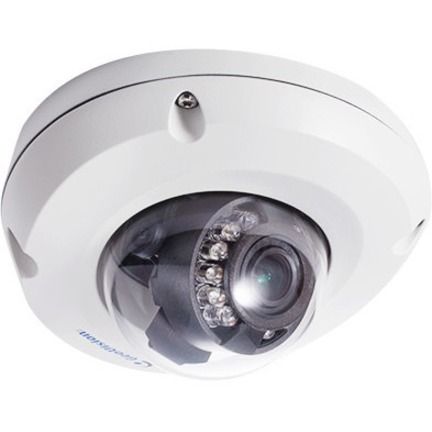

GeoVision 125-EDR2700-2F0 Security Camera

GeoVision - GeoVision Target GV-EDR2700-2F 2 Megapixel Network Camera - Mini Dome - 131.23 ft Night Vision - MJPEG, H.264, H.265 - 1920 x 1080 - CMOS - Wall Mount, Power Box Mount
  • 1/2.8" progressive scan super low lux CMOS
  • Min. illumination at 0.004 Lux
  • Dual streams from H.265, H.264 and MJPEG
  • Up to 30 fps at 1920 x 1080
  • Day and Night function (with removable IR-cut filter)
  • Vandal resistance (IK10 for metal casing)
  • Ingress protection (IP67)
  • 2-axis mechanism (pan / tilt)
  • Built-in micro SD card slot (SD/SDHC/UHS-I, Class 10) for local storage
  • DC 12V / PoE (IEEE 802.3af)
  • Wide Dynamic Range Pro (WDR Pro)
  • Intelligent IR
  • 3D noise reduction
  • Smart streaming
  • Defog
  • Motion detection
  • Tampering alarm
  • Text overlay
  • Privacy mask
  • IP address filtering
Read More
$165.54
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
GeoVision Parts Accessory Model Overview
Products and parts from GeoVision.
GeoVision 125-EDR2700-2F0 Security Camera Overview
The Target Mini Fixed Rugged Dome is an outdoor, fixed, mini-sized network camera equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. The camera adheres to IK10 and IP67 standards. The camera comes with a built-in micro SD card slot for local storage. It is adjustable in 2 axes (pan and tilt) and can be connected through PoE. The camera can support H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The camera is capable of providing a color live view not only in near darkness, but also under contrasting light intensities with its super low lux CMOS image sensor and WDR Pro.
Technical Information
HD Recording:
Yes
Night Vision Distance:
131.23 ft
Number of IR LEDs:
12
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
  • Monochrome
  • Color
Effective Camera Resolution:
2 Megapixel
Video
Video Formats:
  • MJPEG
  • H.264
  • H.265
Maximum Video Resolution:
1920 x 1080
Lens
Maximum Focal Length:
3.80 mm
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Interfaces/Ports
Network (RJ-45):
Yes
Physical Characteristics
Mount Type:
  • Wall Mount
  • Power Box Mount
Form Factor:
Mini Dome
Height:
2.5"
Diameter:
4.5"
Weight (Approximate):
1.32 lb
Miscellaneous
Indoor/Outdoor:
Outdoor
Package Contents:
  • GV-EDR2700 Series 2MP H.265 Super Low Lux WDR Pro IR Mini Fixed Rugged IP Dome
  • 2 x Screw
  • 2 x Screw Anchor
  • Focus Adjustment Ring
  • Installation Sticker
  • Conduit Converter
  • RJ-45 Connector
  • Waterproof Rubber Sets (for RJ-45 Cat.5 and 12V DC / for RJ-45 Cat.6)
  • Torx Wrench
  • 2 x Silica Gel Bag
  • 2 x Adhesive Tape for Silica Gel Bag
  • Concave Hexagon Wrench
  • Ruler
  • 2 x Screw for Conduit Converter
  • Download Guide
  • Warranty Card
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Item Numbers
UNSPSC: 46171610
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The GeoVision 125-EDR2700-2F0 Security Camera is also known as 125-EDR2700-2F0
