HD Recording:
Yes
Night Vision:
Yes
Night Vision Distance:
98.43 ft
Night Vision Type:
Infrared
Number of IR LEDs:
1
GeoVision Parts Accessory Model Overview
Products and parts from GeoVision.

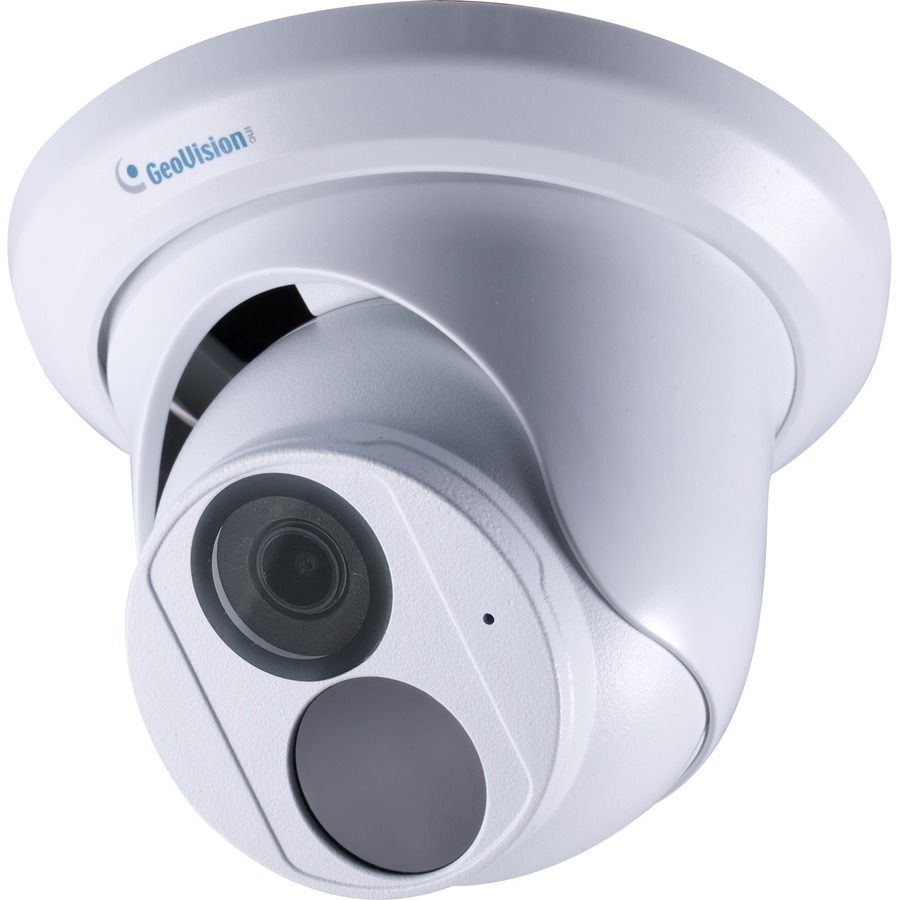

GeoVision 125-EBD4704-000 Security Camera Overview
GV-EBD4704 is an outdoor, network camera equipped with an automatic IR-cut filter and an IR LED for day and night surveillance. The camera adheres to IP67 standards. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. With its WDR Pro, it can process scenes with contrasting intensity of lights and produce clear image.
Technical Information
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
Color
Field of View:
Horizontal 101°
Effective Camera Resolution:
4 Megapixel
Video
Video Formats:
- H.265
- H.264
- MJPEG
Maximum Video Resolution:
2688 x 1520
Maximum Frame Rate:
30 fps
Lens
Lens Type:
Fixed
Maximum Focal Length:
2.80 mm
Lens Included:
Yes
Lens Mount Type:
M12-mount
Maximum Aperture:
f/1.6
Exposure
Shortest Shutter Speed:
1/100000 Second
Longest Shutter Speed:
1 Second
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
Network (RJ-45):
Yes
Power Description
Input Voltage:
12 V DC
Power Source Type:
- DC
- PoE
Physical Characteristics
Mount Type:
- Pendant Mount
- Wall Mount
- Corner Mount
- Pole Mount
- Junction Box Mount
- Box Mount
Form Factor:
Eyeball
Diameter:
5"
Weight (Approximate):
15.87 oz
Environmental Conditions
Minimum Operating Temperature:
-22°F (-30°C)
Maximum Operating Temperature:
140°F (60°C)
Operating Humidity:
95%
Miscellaneous
Features:
- Wide Dynamic Range
- Ingress Protection
- Built-in IR LED
- Built-in Microphone
- SD Card Local Storage
- Day/Night
- 3-Axis Adjustable
- Defog
- Motion Detection
- Privacy Masking
- Automatic White Balance
- Auto Gain Control
Indoor/Outdoor:
Outdoor
Package Contents:
- GV-EBD4704 Eyeball Dome
- Waterproof Rubber Set
- Screw kit
- Drill Template Paster
- Download Guide
Ingress Protection Rating:
IP67
Environmentally Friendly:
Yes
Country of Origin:
China
Warranty
Limited Warranty:
24 Month
Item Numbers
UNSPSC:
46171610
