Recording Formats:
HD
HD Recording:
Yes
Night Vision:
Yes
Night Vision Distance:
164.04 ft
Number of IR LEDs:
3
GeoVision Parts Accessory Model Overview
Products and parts from GeoVision.

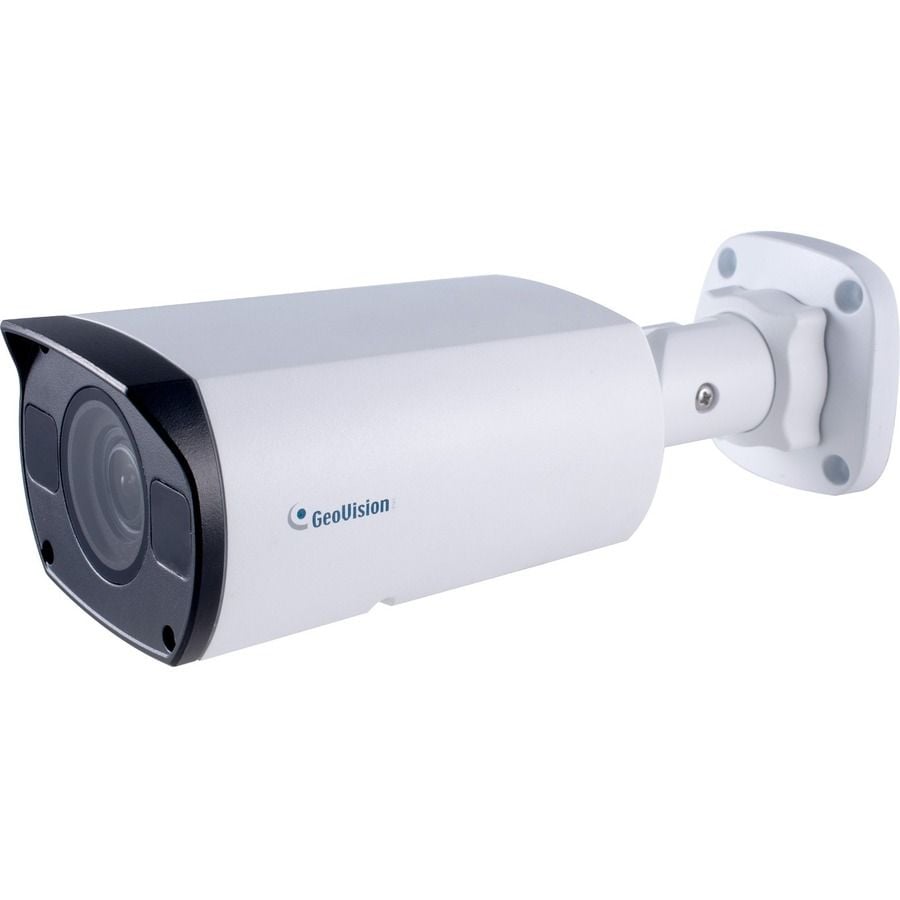

GeoVision 125-ABL2702-000 Security Camera Overview
The Bullet IP Camera is an outdoor, fixed, network camera equipped with an automatic IR-cut filter and 3 IR LEDs for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. With Wide Dynamic Range Pro (WDR Pro), it can process scenes with contrasting intensities of light and produce clear image. The camera adheres to IK10 and IP67 standards and can be powered through PoE.
Technical Information
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
Color
Effective Camera Resolution:
2 Megapixel
Video
Video Formats:
- MJPEG
- H.264
- H.265
Maximum Video Resolution:
1920 x 1080
Maximum Frame Rate:
30 fps
Lens
Lens Type:
Zoom
Minimum Focal Length:
2.80 mm
Maximum Focal Length:
12 mm
Lens Included:
Yes
Optical Zoom:
4.3x
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Interfaces/Ports
Network (RJ-45):
Yes
Power Description
Input Voltage:
12 V DC
Physical Characteristics
Mount Type:
- Wall Mount
- Pole Mount
Form Factor:
Bullet
Product Color:
White
Height:
9.6"
Width:
3.8"
Depth:
10"
Weight (Approximate):
1.28 lb
Environmental Conditions
Maximum Operating Temperature:
140°F (60°C)
Miscellaneous
Indoor/Outdoor:
Outdoor
Package Contents:
- 2MP H.265 Low Lux WDR Pro IR Bullet IP Camera
- Waterproof Rubber Set
- Screw Kit
- Drill Template Paster
- Download Guide
- Warranty Card
Environmentally Friendly:
Yes
Item Numbers
UNSPSC:
46171610
Get help from a Barcoding Expert!
The GeoVision 125-ABL2702-000 Security Camera is also known as
125-ABL2702-000
