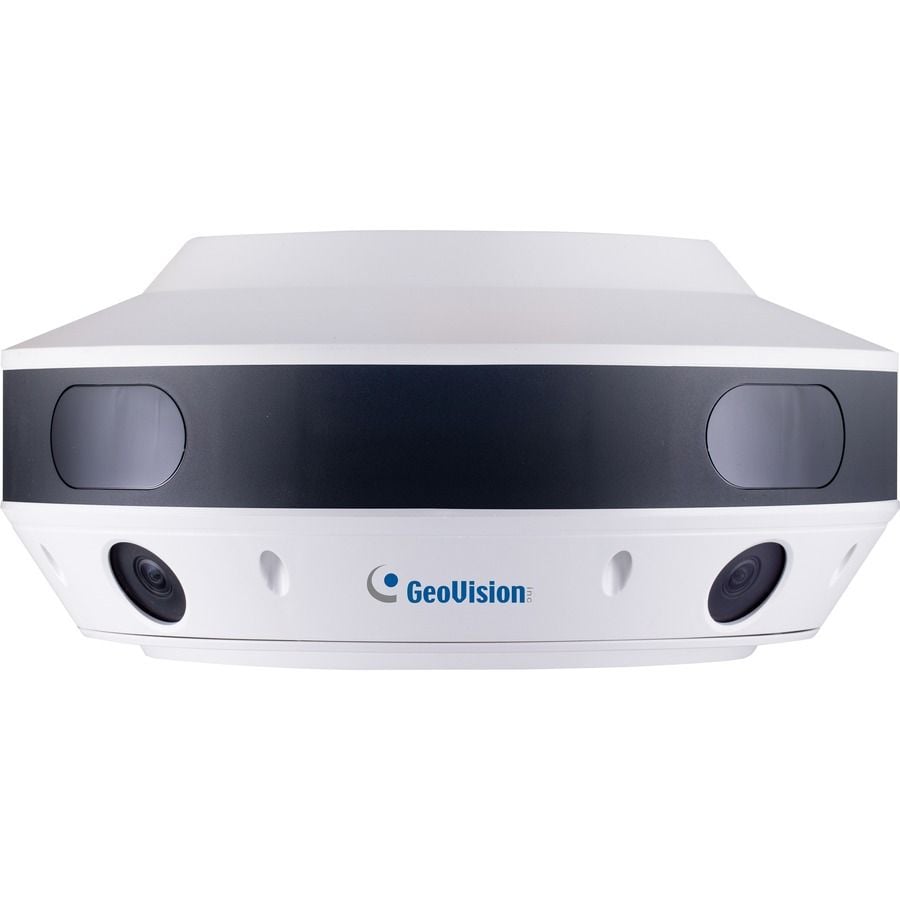

GeoVision 120-SV4800-000 Security Camera

GeoVision - GeoVision GV-SV48000 12 Megapixel Network Camera - 164.04 ft Night Vision - MJPEG, H.264 - 4000 x 3000 - CMOS - Corner Mount, Pole Mount, Swan Neck Mount, Straight Tube Mount
  • 4 x 1/1.7" progressive scan CMOS
  • Dual streams from H.264 or MJPEG
  • Up to 15 fps at 4000 x 3000
  • Two-way audio
  • Four sensor inputs and one alarm output
  • Vandal resistance (IK10 for metal casing)
  • Ingress protection (IP67)
  • DC 24V / AC 24V / High PoE++ (72 W)
  • 4 x Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I) for local storage
  • Day and Night function (with removable IR-cut filter)
Read More

Need a different version? See all GeoVision Parts Accessories

$1,747.40
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
GeoVision 120-SV4800-000 Security Camera
GeoVision 120-SV4800-000 Security Camera
GeoVision Parts Accessory Model Overview
Products and parts from GeoVision.
GeoVision 120-SV4800-000 Security Camera Overview

GV-SV48000 features four 12MP CMOS image sensors to deliver a video resolution of 4000 x 3000 at up to 15fps. The camera offers wide panoramic views at four different angles utilizing surveillance images from the four 3.93 mm lenses to monitor open areas. Its night vision is further enhanced with its high power LEDs with up to 50 m (164.04 ft) effective IR distance. GV-SV48000 adheres to IP67 and IK10 standards. Captured surveillance images from all angles can be stored in either H.264 or MJPEG format on SD cards.

Technical Information
HD Recording:
Yes
Night Vision Distance:
164.04 ft
Number of IR LEDs:
12
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
  • Color
  • Monochrome
Effective Camera Resolution:
12 Megapixel
Video
Video Formats:
  • MJPEG
  • H.264
Maximum Video Resolution:
4000 x 3000
Lens
Maximum Focal Length:
3.93 mm
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Interfaces/Ports
Network (RJ-45):
Yes
Physical Characteristics
Mount Type:
  • Corner Mount
  • Pole Mount
  • Swan Neck Mount
  • Straight Tube Mount
Height:
6"
Diameter:
12.8"
Weight (Approximate):
8.16 lb
Miscellaneous
Package Contents:
  • 48MP H.264 Low Lux WDR IR Surround Video IP Camera
  • Hex Wrench
  • RJ-45 Connector
  • Silica Gel Bag
  • GV-Mount103-1
  • Download Guide
  • Warranty Card
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Item Numbers
UNSPSC: 46171610
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The GeoVision 120-SV4800-000 Security Camera is also known as 120-SV4800-000
