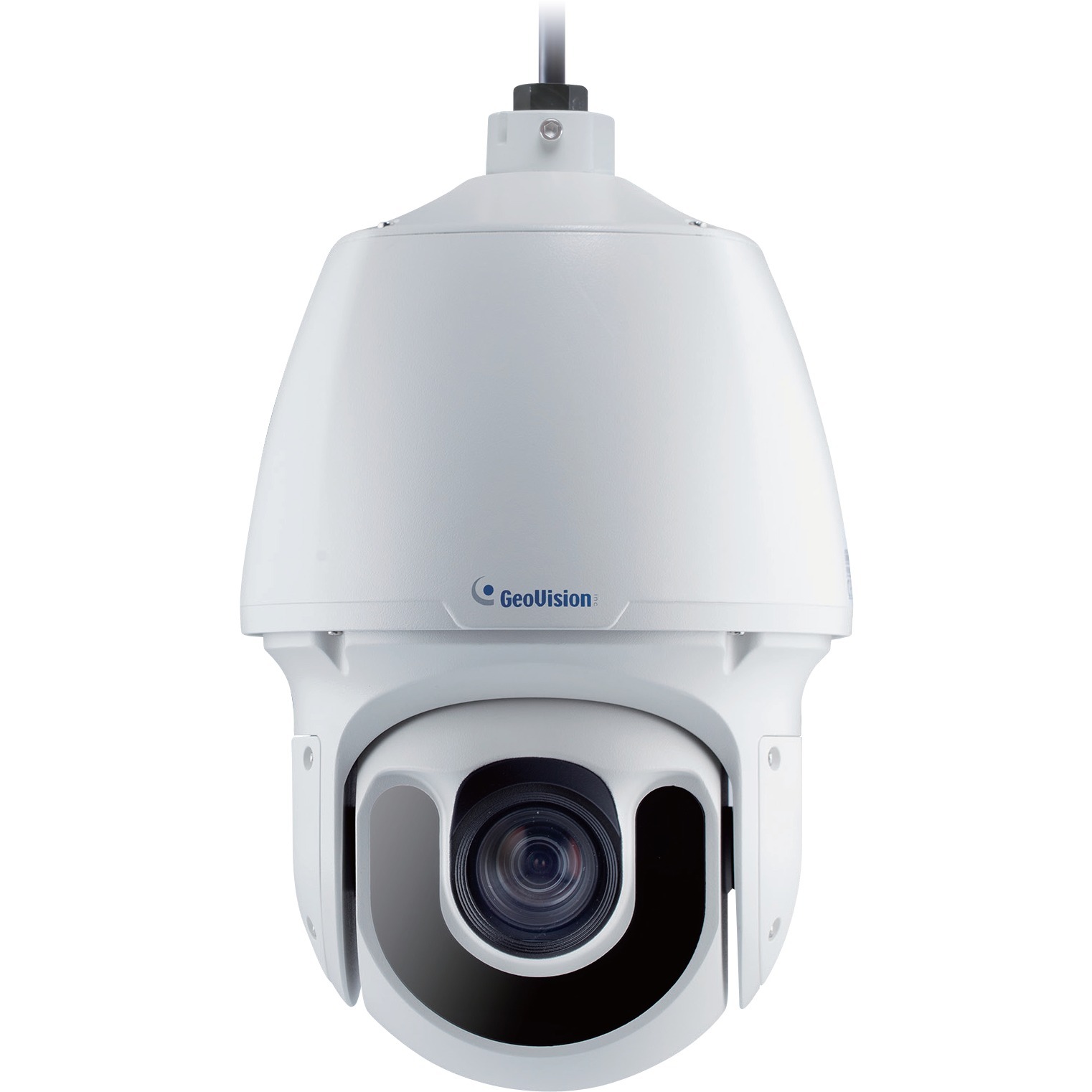

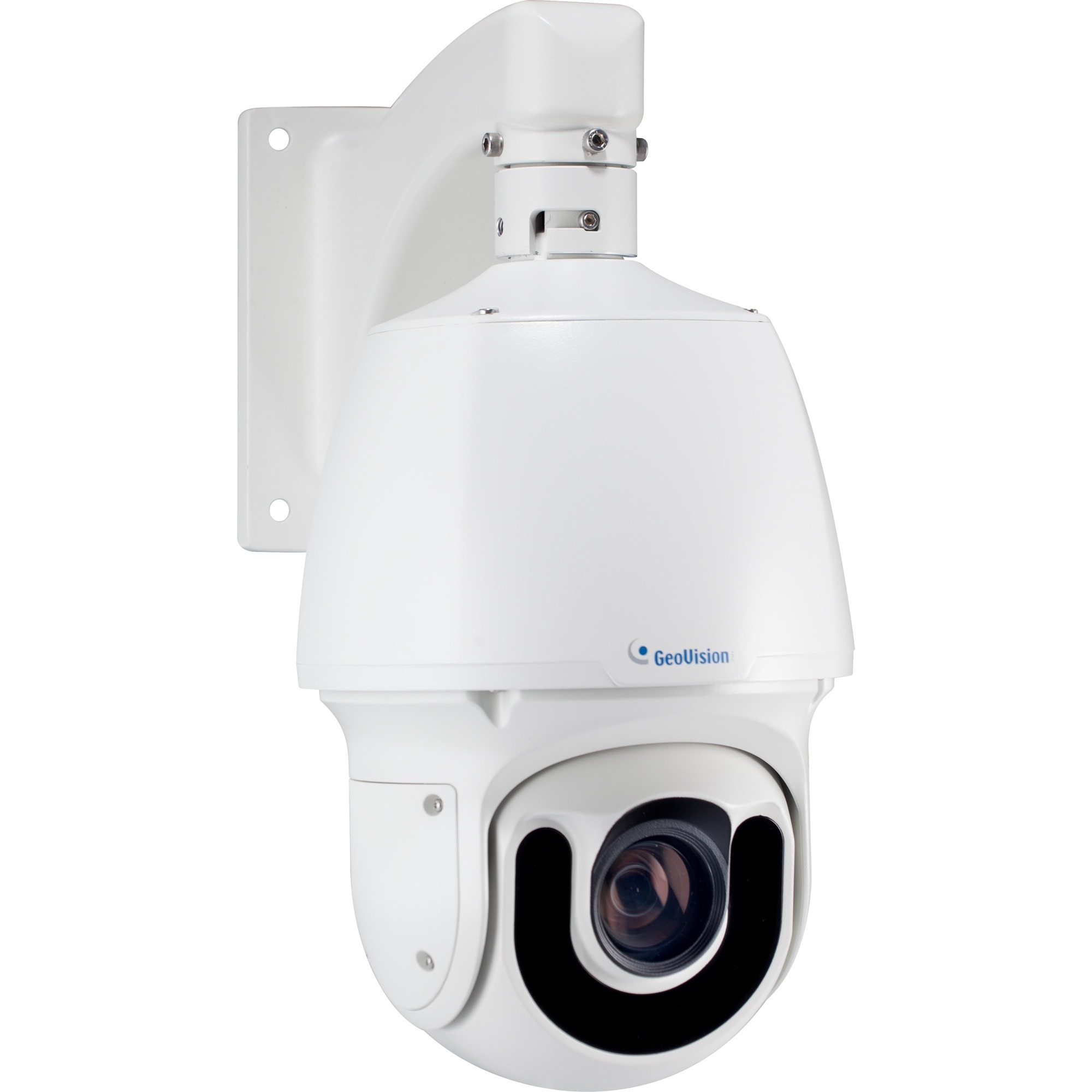

GeoVision 120-SD3732-IR Security Camera

GeoVision - GeoVision GV-SD3732-IR 3 Megapixel Network Camera - Dome - 492.13 ft Night Vision - MJPEG, H.264, H.265 - 2048 x 1536 - 33x Optical - CMOS - Junction Box Mount, Pole Mount, Pendant Mount, Bracket Mount, Straight Tube Mount, Swan Neck Mount, Corner Mount
  • 1/2.8" progressive scan low lux CMOS sensor
  • Min. illumination at 0.003 lux
  • Triple streams from H.265, H.264 or MJPEG
  • Up to 30 fps at 2048 x 1536, 60 fps at 1920 x 1080
  • 33x optical zoom and unlimited digital zoom
  • Intelligent IR
  • IR distance up to 150 m (500 ft)
  • Day and night function with IR-cut filter
  • Two sensor inputs and one alarm output
  • Wide Dynamic Range Pro (WDR Pro)
Read More
$1,670.48
Add to Quote
GeoVision Parts Accessory Model Overview
Products and parts from GeoVision.
GeoVision 120-SD3732-IR Security Camera Overview
The GV-SD3732-IR is an outdoor network PTZ camera that offers 33x optical zoom and unlimited digital zoom, capable of showing smooth live view with great details. This camera can simultaneously deliver three video streams in resolutions up to 2048 x 1536 at 30 fps. In low-light environments, night vision is enhanced with its high-power LEDs, which allow up to 150 m (500 ft) effective IR distance. The camera can process scenes with contrasting intensity of lights and produce clear image using the built-in WDR Pro. The GV-SD3732-IR supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths.

Wide surveillance coverage is made possible with 360° endless panning and -15 ~ 195° tilting capacity. PTZ functions such as Preset, Auto Pan, and Patrol can be programmed and activated by schedule. The GV-SD3732-IR supports pan/tilt speeds ranging from a fast patrol of 240° per second to a slow ramble of 0.1° per second with 0.1° pan accuracy for fast and accurate tracking ability.
Technical Information
Recording Formats:
HD
HD Recording:
Yes
Night Vision Distance:
492.13 ft
Number of IR LEDs:
10
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
  • Color
  • Monochrome
Effective Camera Resolution:
3 Megapixel
Video
Video Formats:
  • MJPEG
  • H.264
  • H.265
Maximum Video Resolution:
2048 x 1536
Lens
Lens Type:
Zoom
Minimum Focal Length:
4.50 mm
Maximum Focal Length:
148.50 mm
Optical Zoom:
33x
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Interfaces/Ports
Network (RJ-45):
Yes
Physical Characteristics
Mount Type:
  • Junction Box Mount
  • Pole Mount
  • Pendant Mount
  • Bracket Mount
  • Straight Tube Mount
  • Swan Neck Mount
  • Corner Mount
Form Factor:
Dome
Height:
14.2"
Diameter:
8.9"
Weight (Approximate):
11.90 lb
Miscellaneous
Package Contents:
  • GV-SD3732-IR 33x 3MP H.265 Low Lux WDR Pro Outdoor IR IP Speed Dome
  • 24V AC Power Adapter
  • M4 Hex Key
  • Waterproof Rubber Set
  • Waterproof Guidelines
  • Download Guide
  • Warranty Card
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
24 Month
Item Numbers
UNSPSC: 46171610
