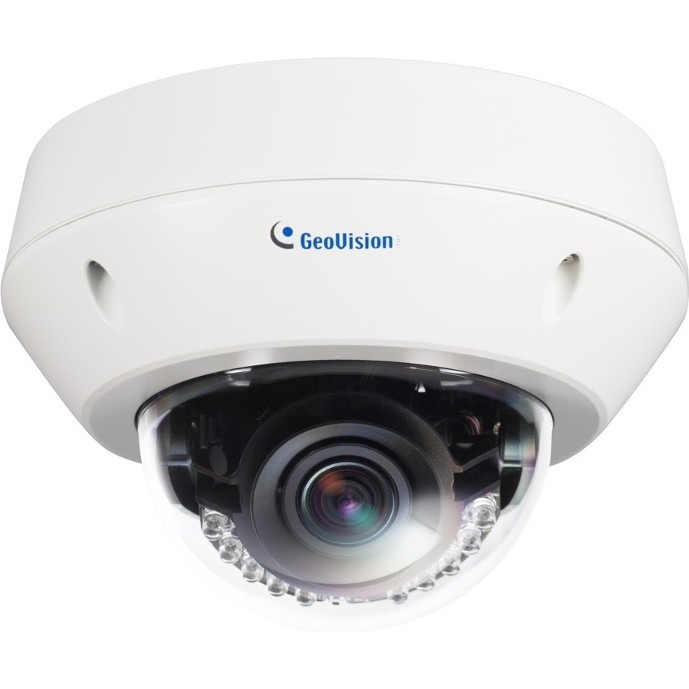

GeoVision 120-EVD5100-000 Security Camera

GeoVision - GeoVision GV-EVD5100 5 Megapixel Network Camera - 98.43 ft Night Vision - MJPEG, H.264 - 2592 x 1944 - 3x Optical - CMOS - Ceiling Mount, Wall Mount, Pendant Mount, Bracket Mount, Pole Mount, Corner Mount
  • 1/3.2" progressive scan low lux CMOS
  • Dual streams from H.264 and MJPEG
  • Up to 30 fps at 2592 x 1944
  • Vandal resistance (IK10)
  • Ingress protection (IP67)
  • Intelligent IR
  • Day and Night function (with removable IR-cut filter)
  • Megapixel varifocal lens
  • P-Iris lens for auto Iris control
  • IR distance up to 30 m (98.4 ft)
Read More

Need a different version? See all GeoVision Parts Accessories

$349.48
Add to Quote
Add to My Shopping List Add to Compare
GeoVision 120-EVD5100-000 Security Camera
GeoVision 120-EVD5100-000 Security Camera
GeoVision 120-EVD5100-000 Security Camera
GeoVision Parts Accessory Model Overview
Products and parts from GeoVision.
GeoVision 120-EVD5100-000 Security Camera Overview
GV-EVD5100 is an outdoor camera designed with IK10 vandal resistance and IP67 ingress protection. The camera is featured with WDR, an automatic IR-cut filter and IR LEDs for day and night surveillance. Adjustable in 3 axis (pan, tilt and rotate), it offers an entry-level surveillance solution with all the essential features and excellent image quality.
Technical Information
Recording Formats:
HD
HD Recording:
Yes
Night Vision Distance:
98.43 ft
Number of IR LEDs:
20
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
  • Color
  • Monochrome
Effective Camera Resolution:
5 Megapixel
Video
Video Formats:
  • MJPEG
  • H.264
Maximum Video Resolution:
2592 x 1944
Lens
Lens Type:
Zoom
Minimum Focal Length:
3 mm
Maximum Focal Length:
9 mm
Optical Zoom:
3x
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Interfaces/Ports
Network (RJ-45):
Yes
Physical Characteristics
Mount Type:
  • Ceiling Mount
  • Wall Mount
  • Pendant Mount
  • Bracket Mount
  • Pole Mount
  • Corner Mount
Height:
4.3"
Diameter:
6.3"
Weight (Approximate):
2.54 lb
Miscellaneous
Package Contents:
  • GV-EVD5100 5MP H.264 Low Lux WDR IR Vandal Proof IP Dome
  • 4 x Screw
  • 4 x Screw Anchor
  • TV-Out Wire
  • 2 x Audio Wires
  • Installation Sticker
  • Conduit Converter
  • RJ-45 Connector
  • Waterproof rubber sets (for RJ-45 Cat.5 and 12V DC / for RJ-45 Cat.6)
  • Torx Wrench
  • Big Concave hexagon Wrench
  • Small Concave hexagon Wrench
  • Silica Gel Bag
  • Sticker (for Silica Gel Bag)
  • Ruler
  • GV-IPCAM H.264 Software DVD
  • GV-NVR Software DVD
  • Warranty Card
Environmentally Friendly:
Yes
Item Numbers
GTIN: 0733556568655
UPC: 733556568655
EAN: 0733556568655
UNSPSC: 46171610
