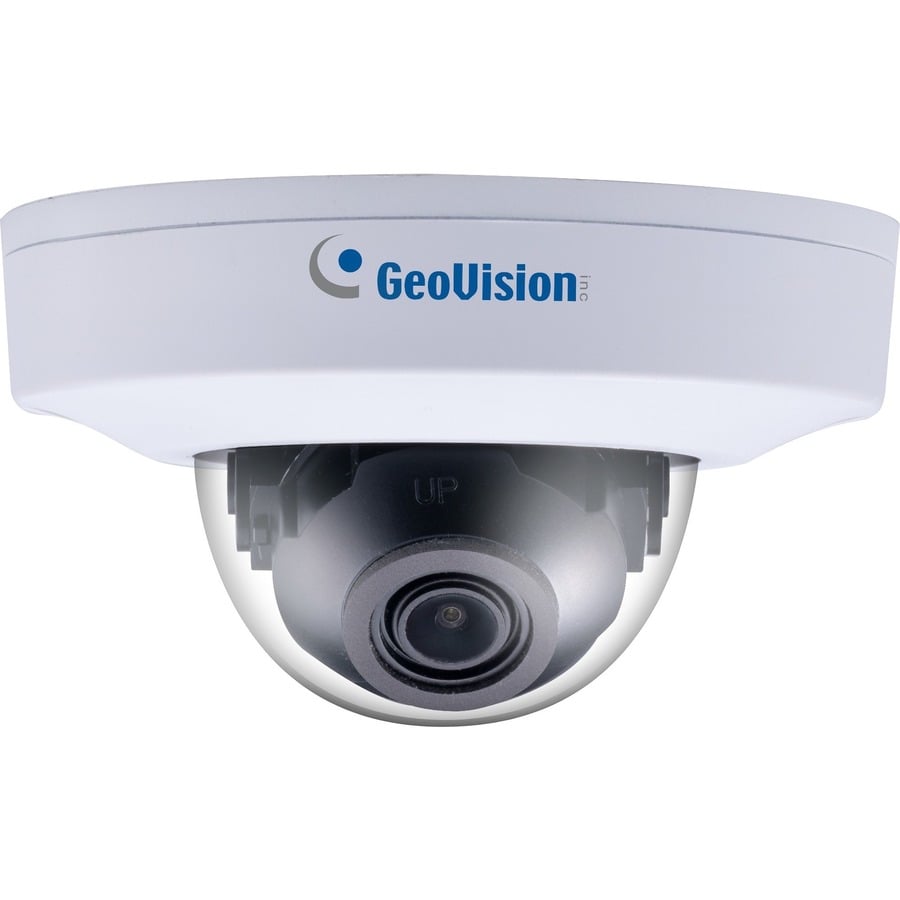

GeoVision 115-TFD4700-0010 Security Camera

Part Number: 115-TFD4700-0010
Model: Parts
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Recording Formats
HD
HD Recording
Yes
Night Vision
Yes
Night Vision Distance
98.43 ft

Product Description:

  Security Cameras, GeoVision, 4MP Network Mini Dome Camera with Night Vision
Explore all GeoVision Parts Accessories
Add to Quote
GeoVision 115-TFD4700-0010 Security Camera
GeoVision 115-TFD4700-0010 Security Camera
GeoVision 115-TFD4700-0010 Security Camera GeoVision 115-TFD4700-0010 Security Camera

GeoVision Parts Accessory Model Overview

Products and parts from GeoVision.
GeoVision 115-TFD4700-0010 Security Camera Overview

GV-TFD4700 is an indoor, fixed, network camera equipped with an automatic IR-cut filter and an IR LED for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. With the super low lux CMOS image sensor, the camera is capable of providing a color live view in near darkness.

Technical Information
Recording Formats:
HD
HD Recording:
Yes
Night Vision:
Yes
Night Vision Distance:
98.43 ft
Night Vision Type:
Infrared
Number of IR LEDs:
1
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
Color
Field of View:
Horizontal 95°
Effective Camera Resolution:
4 Megapixel
Video
Video Formats:
  • H.265
  • H.264
  • MJPEG
Maximum Video Resolution:
2688 x 1520
Maximum Frame Rate:
30 fps
Lens
Lens Type:
Fixed
Maximum Focal Length:
2.80 mm
Lens Included:
Yes
Lens Mount Type:
M12-mount
Maximum Aperture:
f/2
Exposure
Shortest Shutter Speed:
1/1000000 Second
Longest Shutter Speed:
1 Second
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
Network (RJ-45):
Yes
Power Description
Input Voltage:
12 V DC
Physical Characteristics
Mount Type:
  • Pendant Mount
  • Wall Mount
  • Junction Box Mount
  • Ceiling Mount
  • Corner Mount
  • Pole Mount
Form Factor:
Mini Dome
Diameter:
4.3"
Weight (Approximate):
7.76 oz
Environmental Conditions
Minimum Operating Temperature:
-31°F (-35°C)
Maximum Operating Temperature:
140°F (60°C)
Operating Humidity:
95%
Miscellaneous
Features:
  • Day/Night
  • Removable IR Cut-off Filter
  • 3-Axis Adjustable
  • SD Card Local Storage
  • Wide Dynamic Range
  • Defog
  • 3D Noise Reduction
  • Motion Detection
  • Privacy Masking
  • Automatic White Balance
  • Auto Gain Control
  • Audio Compression
Indoor/Outdoor:
Indoor
Package Contents:
  • 4MP H.265 Super Low Lux WDR Pro IR Mini Fixed IP Dome
  • Screw Kit
  • Drill Template Paster
  • Torx Wrench
  • 2-Pin Terminal Block
  • Download Guide
  • Warranty Card
Environmentally Friendly:
Yes
TAA Compliant:
Yes
Warranty
Limited Warranty:
24 Month
Item Numbers
UNSPSC: 46171610
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The GeoVision 115-TFD4700-0010 Security Camera is also known as 115-TFD4700-0010
