Recording Formats:
HD
HD Recording:
Yes
GeoVision 115-BX4700-3VA Security Camera
Part Number:
115-BX4700-3VA
Model:
Parts
GeoVision Parts Accessory Model Overview
Products and parts from GeoVision.

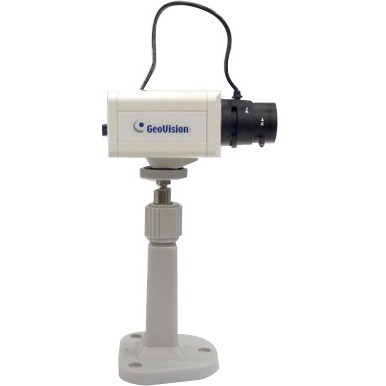

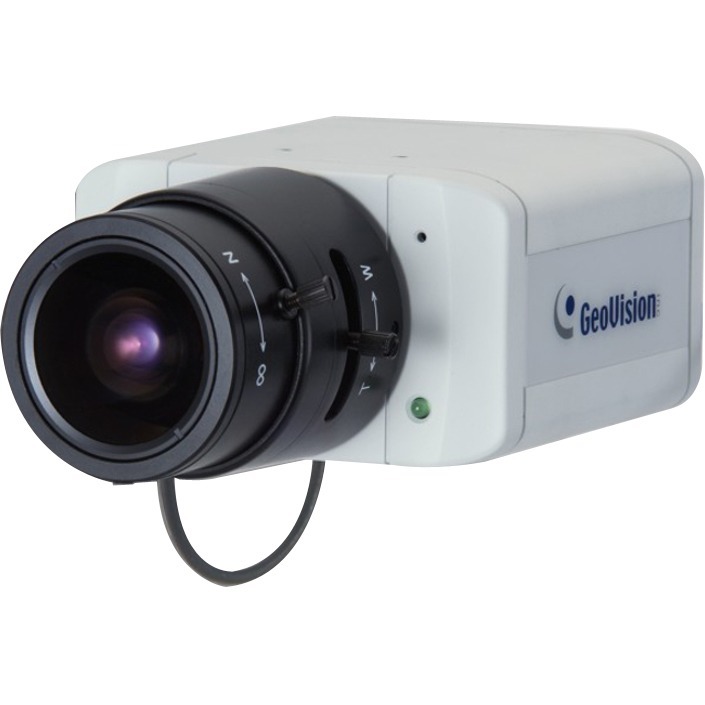

GeoVision 115-BX4700-3VA Security Camera Overview
The GV-BX4700 is a series of indoor IP cameras containing a varifocal and a fixed focal model. GV-BX4700 can support H.265 video codec to achieve better compression ratio while maintaining high picture quality at reduced network bandwidths. The camera is equipped with a Super Low Lux CMOS image sensor which allows the camera to provide a color live view in near darkness. The camera features a mini USB port which supports wireless connection through a GV-WiFi Adapter (optional) or external storage using a USB hard drive.
Technical Information
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
- Color
- Monochrome
Effective Camera Resolution:
4 Megapixel
Video
Video Formats:
- MJPEG
- H.264
- H.265
Maximum Video Resolution:
2592 x 1520
Maximum Frame Rate:
30 fps
Lens
Lens Type:
Varifocal
Minimum Focal Length:
3 mm
Maximum Focal Length:
10.50 mm
Lens Included:
Yes
Optical Zoom:
3.5x
Network & Communication
Connectivity Technology:
Wired & Wireless
Remote Management:
Yes
Interfaces/Ports
Network (RJ-45):
Yes
Physical Characteristics
Mount Type:
- Wall Mount
- Ceiling Mount
- Desk Mount
- Corner Mount
- Pole Mount
Form Factor:
Box
Product Color:
White
Height:
2.1"
Width:
3"
Depth:
3"
Weight (Approximate):
11.29 oz
Miscellaneous
Indoor/Outdoor:
Indoor
Package Contents:
- GV-BX4700 Series 4MP H.265 Super Low Lux WDR Pro D/N Box IP Camera
- Terminal Block (2-Pin and 3-Pin)
- Fixed Focal or Varifocal Megapixel Lens
- Six Lens Rings (only for Varifocal Lens)
- Video Out Wire
- Camera Holder
- 2 x Holder Screw
- GV-IPCAM Software DVD
- GV-Software DVD
- Warranty Card
Environmentally Friendly:
Yes
NDAA Compliant:
Yes
Item Numbers
GTIN:
0733556569201
UPC:
733556569201
EAN:
0733556569201
UNSPSC:
46171610
Get help from a Barcoding Expert!
The GeoVision 115-BX4700-3VA Security Camera is also known as
115-BX4700-3VA
