Recording Formats:
HD
HD Recording:
Yes
GeoVision 110-BX1500-A3V Products
Part Number:
110-BX1500-A3V
Model:
Parts
GeoVision Parts Accessory Model Overview
Products and parts from GeoVision.
GeoVision 110-BX1500-A3V Products Overview

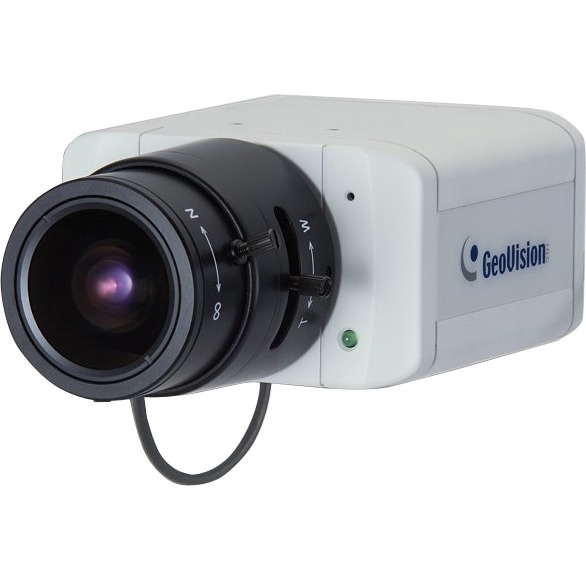

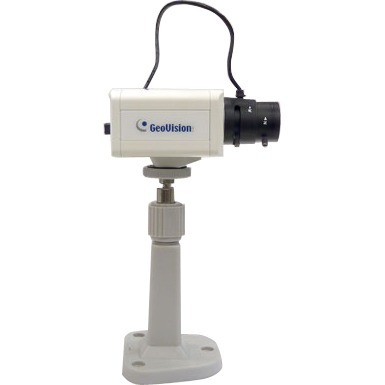

The GV-BX1500 is a series of indoor IP cameras containing a varifocal and several fixed focal models. The camera is equipped with a Super Low Lux CMOS image sensor which allows the camera to provide a color live view in near darkness. The camera features a mini USB port which supports wireless connection through a GV-WiFi Adapter (optional) or external storage using a USB hard drive.
Technical Information
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
- Color
- Monochrome
Effective Camera Resolution:
1.3 Megapixel
Video
Video Formats:
- MJPEG
- H.264
Maximum Video Resolution:
1280 x 1024
Lens
Lens Type:
Varifocal
Minimum Focal Length:
3 mm
Maximum Focal Length:
10.50 mm
Optical Zoom:
3.5x
Network & Communication
Connectivity Technology:
Wired & Wireless
Remote Management:
Yes
Interfaces/Ports
Network (RJ-45):
Yes
Physical Characteristics
Mount Type:
- Wall Mount
- Ceiling Mount
- Desk Mount
- Corner Mount
- Pole Mount
Form Factor:
Box
Height:
2.1"
Width:
3"
Depth:
3"
Weight (Approximate):
10.58 oz
Miscellaneous
Package Contents:
- GV-BX1500 Series 1.3MP H.264 Super Low Lux WDR D/N Box IP Camera
- Terminal Block
- Fixed Focal or Varifocal Megapixel Lens
- Six Lens Rings
- Video Out Wire
- Camera Holder
- 2 X Holder Screw
- Power Adapter
- GV-IPCAM H.264 Software DVD
- GV-NVR Software DVD
- Warranty Card
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Item Numbers
UNSPSC:
46171610
