Recording Formats:
HD
HD Recording:
Yes
GeoVision 110-BX12201-000 Products
Part Number:
110-BX12201-000
Model:
Parts
GeoVision Parts Accessory Model Overview
Products and parts from GeoVision.
GeoVision 110-BX12201-000 Products Overview

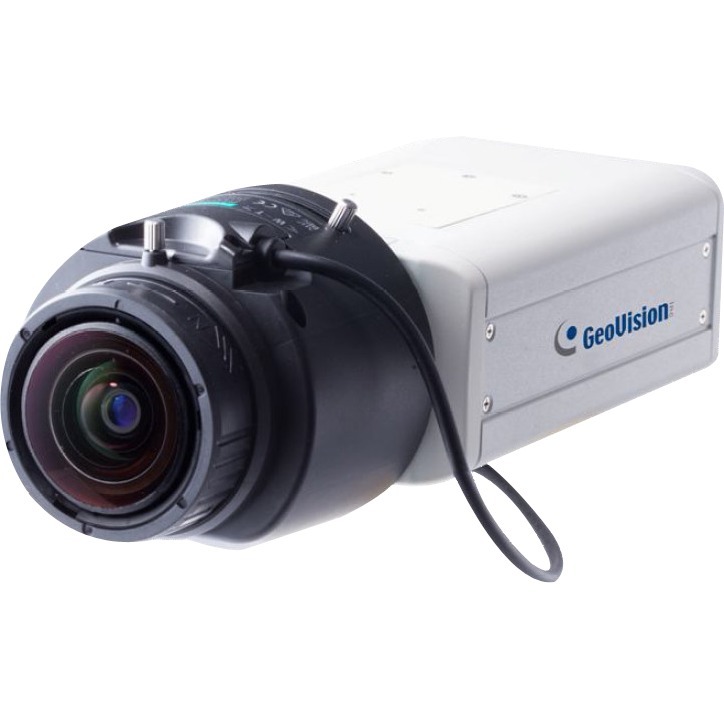

The GV-BX12201 is a dual-stream, day/night indoor IP camera containing a varifocal lens. The camera is equipped with a progressive scan CMOS image sensor. The camera features a 12 MP resolution, and the increased pixel density allows the camera to capture scenes of greater details.
Technical Information
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
- Color
- Monochrome
Effective Camera Resolution:
12 Megapixel
Video
Video Formats:
- MJPEG
- H.264
Maximum Video Resolution:
4000 x 3000
Maximum Frame Rate:
30 fps
Lens
Lens Type:
Varifocal
Minimum Focal Length:
4.10 mm
Maximum Focal Length:
9 mm
Optical Zoom:
2.2x
Network & Communication
Connectivity Technology:
Wired & Wireless
Remote Management:
Yes
Interfaces/Ports
Network (RJ-45):
Yes
Power Description
Input Voltage:
24 V AC
Physical Characteristics
Mount Type:
- Wall Mount
- Ceiling Mount
- Table Mount
Form Factor:
Box
Product Color:
White
Height:
2.1"
Width:
3"
Length:
4.7"
Weight (Approximate):
1.20 lb
Miscellaneous
Indoor/Outdoor:
Indoor
Package Contents:
- GV-BX12201 12MP H.264 Low Lux WDR D/N Box IP Camera
- Terminal Block
- Fixed Focal or Varifocal Megapixel Lens
- Six Lens Rings
- Video Out Wire
- Camera Holder
- 2 X Holder Screw
- Power Adapter
- GV-IPCAM H.264 Software DVD
- GV-NVR Software DVD
- Warranty Card
Environmentally Friendly:
Yes
Item Numbers
GTIN:
4712896442463
EAN:
4712896442463
UNSPSC:
46171610
The GeoVision 110-BX12201-000 Products is also known as
110-BX12201-000
