Gen2Wave A10-S2R0T0H0H1D1M1Z1C1 Access Control Reader

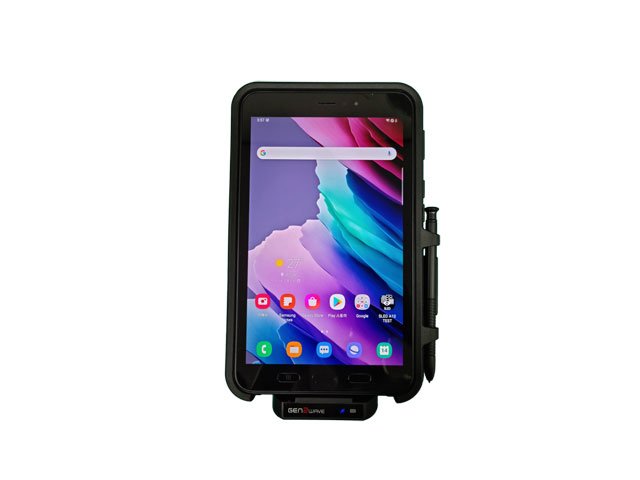

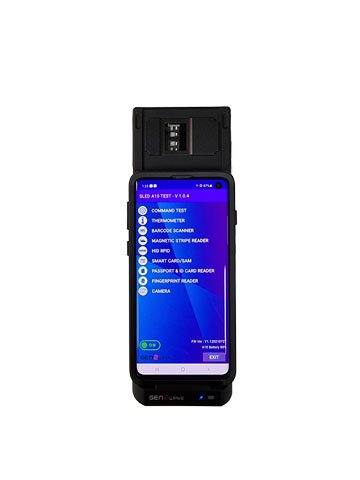

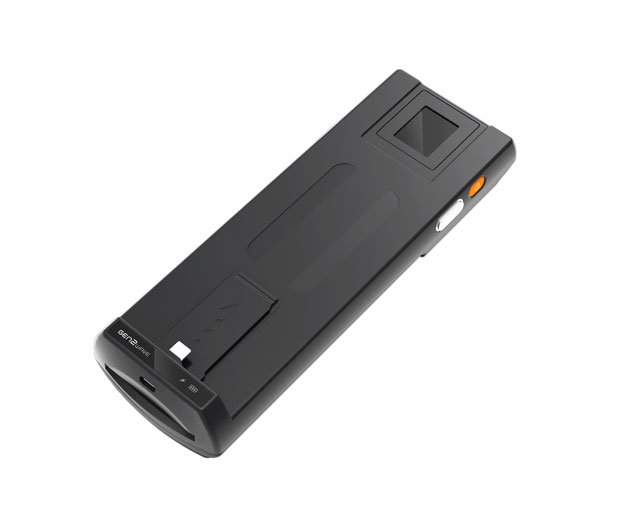

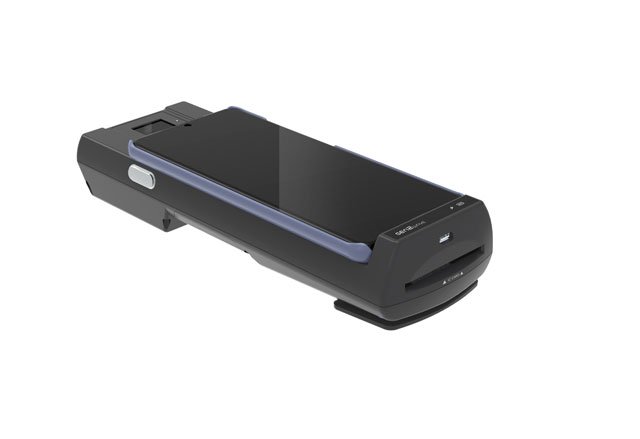

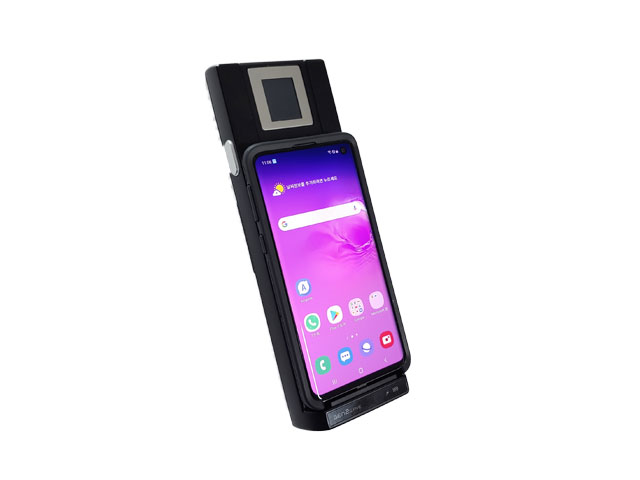

The GEN2WAVE BIO SLED A10 is a cutting-edge multi-modal data capture sled designed to enhance efficiency and security in identity verification. With an IP64 rating, it is built to withstand rugged environments, making it ideal for a variety of applications. This innovative device combines a FBI certified FAP30/20 fingerprint reader, high-speed 1D/2D barcode scanner, and dual iris capture capabilities, all packed into a compact, ergonomic design. The A10 is compatible with both Samsung Galaxy smartphones and any Android device equipped with Otterbox uniVERSE cases, providing versatility in biometric and biographic data collection.

Key Features:

• FBI certified - FAP30/20 fingerprint reader
• High-speed 1D/2D barcode scanner
• Dual iris capture for enhanced accuracy
• 13MP facial recognition camera with LED flash
• 6700mAH high-capacity battery for extended use
• NFC optimized for ePassport and eID chip reading
• Medical-grade thermometer for human use
• Compact and robust design for durability

Specifications:

• Dimensions: 80mm(W) x 230mm(L) x 45mm(max thickness) / 28mm(min thickness)
• Weight: 430g (15 oz)
• Battery: 6700mAH Li-Polymer
• Operating Temp: -20°C ~ 60°C (-4°F ~ 140°F)
• Storage Temp: -30°C ~ 70°C (-22°F ~158°F)
• Humidity: Non-condensing, 93%
• Drop Test: Rated for multiple 1.5-meter drops onto concrete - IP64
