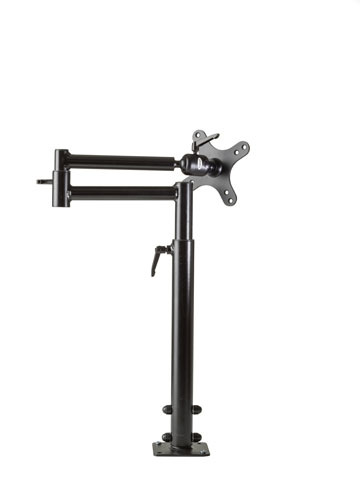

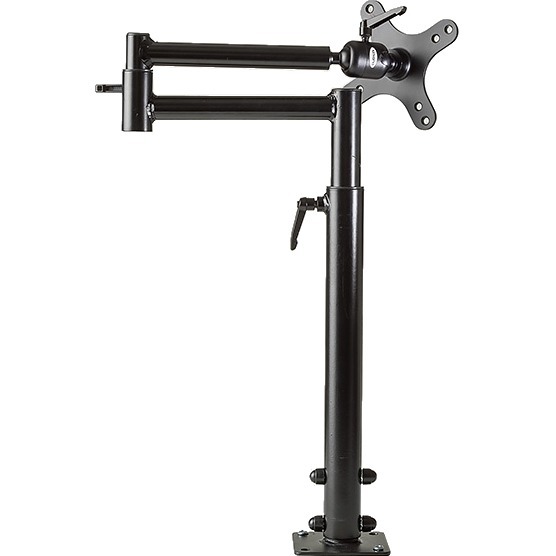

Gamber-Johnson 7170-0590 Accessory

This desktop mounting solution is great for a large display, tablet, or docking station.

Maximum weight capacity:

• Vibration environment - joiner holds up to 6 lbs. (2.8kg)
• Static environment - joiner holds up to 33 lbs (15kg)

Note: Extension tube will lower the overal payload rating of the joiner. The longer the extension, the lower the overall rating for the joiner.

Weight:

5.35 lbs. / 2.4 kg

Dimensions:

Height: 16" - 24" / 40.6 cm - 61.0 cm
Width: 10" - 16.5" / 25.4 cm - 41.9 cm
Depth: 4.0" / 10.2 cm

Features:

• 4" (10.2 cm) square base x 3.75" (9.5 cm) height base with VESA 75 mounting hole pattern
• 16" (40.6cm) height-adjustable pedestal; spans 16" - 24" (40.6 cm - 61.0 cm)
• Articulating arms extend 16.5" (41.9 cm) from the main pedestal
• Tension handles lock pedestal height and articulated arms in place
• Articulated joiner with tension handle - position display for the proper viewing angle
• VESA 75/100mm mounting adapter (fits most displays)
• Anodized aluminum and steel with black powdecoat finish
• Kit includes:
  • Floor mount base (item no. 17240)
  • Dual articulating arms with adjustable height and medium joiner (item no. 17241)
  • VESA 75/100mm adapter plate (item no. 14140)
• Assembly required
• 1 Year Limited Warranty
