Device Function:
- Cable Length Testing
- Voice Signal Testing
- Video Signal Testing
- Voltage Monitor
- Current Measurement
Fluke Networks Parts Data Networking Model Overview
Parts and accessories from Fluke Networks.

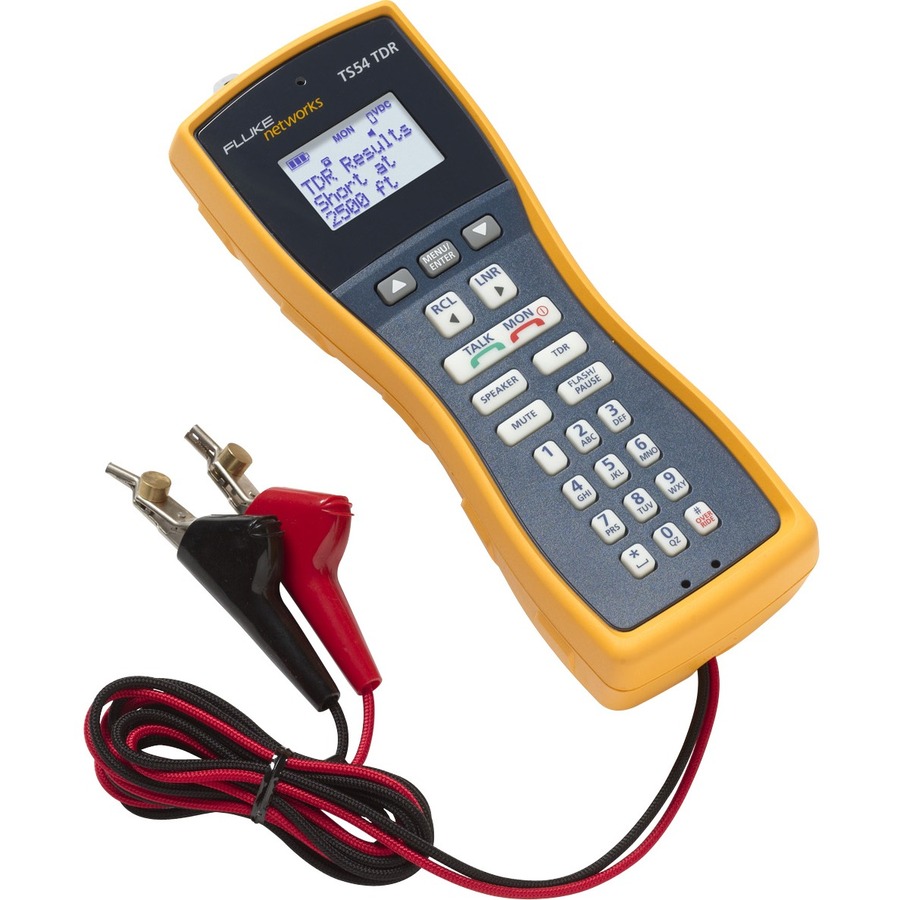

Fluke Networks TS54-A-09-TDR Data Networking Overview
The innovative TS®54 TDR (Time Domain Reflectometer) is perfect for voice, data and video technicians and communication service provider technicians who need a best-in-class test set. There's nothing else like the TS54 TDR on the market today. No longer will you need to carry a separate TDR, toner, pair identifier-everything you need is in one newly redesigned and compact test set-that's a 62% weight reduction and a 20% cost reduction over existing products.
The TS54 delivers 20% more extreme weather protection with the latest advancements to our patented RainSafe™, DropSafe™ and DataSafe™ technology. This means the TS54 is weatherproof and rugged and able to butt in on live DSL lines to test POTS quality without crashing data service.
Technical Information
Display & Graphics
Display Screen Type:
LCD
Controls/Indicators
Status Indicators:
- Data Indication
- Voltage Indication
- Current (mA) Indication
Battery Information
Battery Size Supported:
9V
Battery Chemistry:
Alkaline
Power Description
Input Voltage:
9 V DC
Physical Characteristics
Height:
8.3"
Width:
3.2"
Depth:
2.6"
Weight (Approximate):
1.16 lb
Miscellaneous
Certifications & Standards:
- ANSI/ISA 82.02.01 (61010-1) 2004
- CAN/CSA-C22.2 No 61010-1-04
- UL 61010-1 (2004)
- IEC 61010-1:2010
- EMC EN61326-1
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN:
0754082081654, 0779184085225, 0818257315453, 0880959299072
UPC:
754082081654, 779184085225, 818257315453, 880959299072
EAN:
0754082081654, 0779184085225, 0818257315453, 0880959299072
UNSPSC:
41113600
