Device Function:
- Twisted Pair Cable Testing
- Continuity Testing
- Coaxial Cable Testing
Fluke Networks Parts Data Networking Model Overview
Parts and accessories from Fluke Networks.
Fluke Networks MT-8200-61-TNR Data Networking Overview
Get advanced vision for locating network cables more effectively at patch panels, switches, termination blocks, or hidden within bundles. Our new IntelliTone Pro 200 LAN Toner and Probe Kits finds the cables others can't.

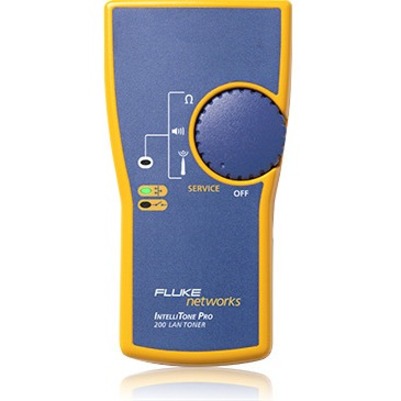

The IntelliTone™ Pro 200 LAN Toner and Probe Series from Fluke Networks is the first network cable toner and probe to offer digital and analog signaling all in one tool. That means it's equipped with the most powerful cable location technologies for any work environment. Use digital mode to trace and locate data cabling safely and effectively on active networks. Use analog mode to isolate individual wire pairs, and trace voice, audio, and video cabling.
The IntelliTone™ Pro 200 LAN Toner and Probe Series from Fluke Networks gives you superior vision for locating cables hidden in floors, ceilings, walls, and in bundles. This network cable toner and probe's breakthrough digital technology makes it the first tool to tone and trace safely and effectively on active networks.
Technical Information
Interfaces/Ports
Network (RJ-45):
Yes
Number of Network (RJ-45) Ports:
1
Media & Performance
Media Type Supported:
- Twisted Pair
- Coaxial
Network & Communication
Network Standard:
10/100Base-TX
Ethernet Technology:
Fast Ethernet
Controls/Indicators
Status Indicators:
LED indicate the presence of normal, reversed or MDIX Ethernet link connectivity
Battery Information
Battery Included:
Yes
Battery Life:
20 Hour
Battery Chemistry:
Alkaline
Power Description
Input Voltage:
9 V DC
Physical Characteristics
Height:
5.5"
Width:
2.9"
Depth:
1.3"
Miscellaneous
Package Contents:
- IntelliTone Pro 200 LAN Toner
- Coax F Connector Adapter
- RJ11 Patch Cables
- RJ 45 Patch Cables
- Test Leads with Alligator Clips
- Lanyard
- Quick Start Guide
- 9 Volt Battery
Certifications & Standards:
- Safety: EN 61010-1
- CE
EMC:
- EN 61326-1
- FCC Part 15 B
Environmentally Friendly:
Yes
Environmental Certification:
WEEE
Country of Origin:
Malaysia
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN:
0696552127366, 0754082127451, 0818214486288
UPC:
696552127366, 754082127451, 818214486288
EAN:
0696552127366, 0754082127451, 0818214486288
UNSPSC:
41113711
